2.7.5 Connections
B
C
A
000451
1
4
5
6
2
7
8
9
10
1
1
3
12
pt
10

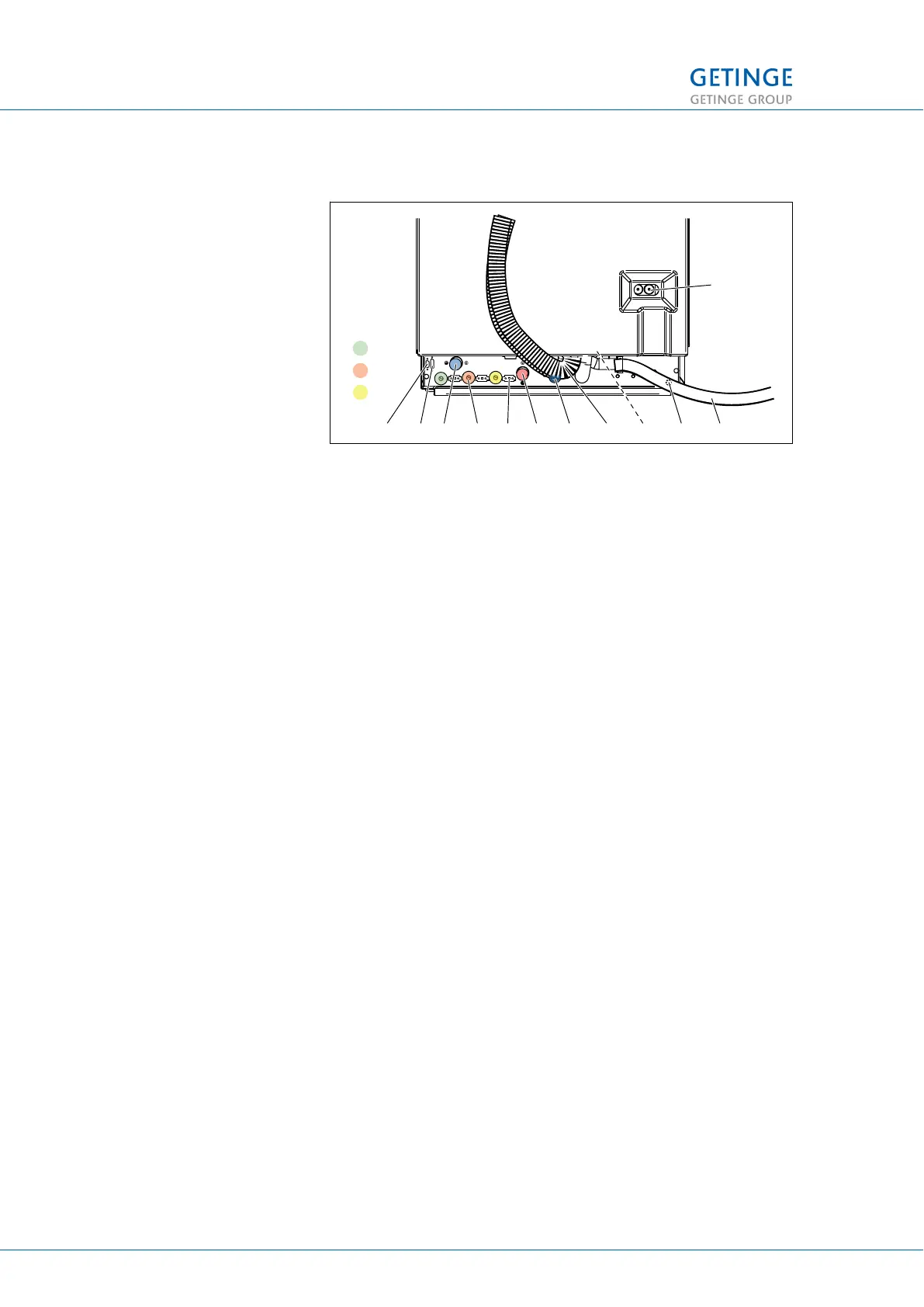

Figure 9. Connections
1.
Electrical connection
2.
Grounding point
3.
Connection waste
cooling
4.
Waste hoses
5.
DI water
6.
Hot Water
7.
Empty container
alarm
8.
Dosage
9.
Cold Water
10.
External dosage
11.
Printer/Netcom
A. DOS 3 Neutralizing agent
B. DOS 2 Rinse-aid
C. DOS 1 Detergent
2.7.6
Connection waste cooling (Option)
Connect the hose for feeding water into the waste cooling to the
water supply.
2 INSTALLATION
22 (48)
INSTALLATION MANUAL GETINGE WD15 CLARO
<Doc_INS><Doc_6001396702><Rev.I><Lang_en>
21
23
