2.12 External dosing (option)
WARNING!
Make sure that the detergent is dosed in the
chamber after installation.

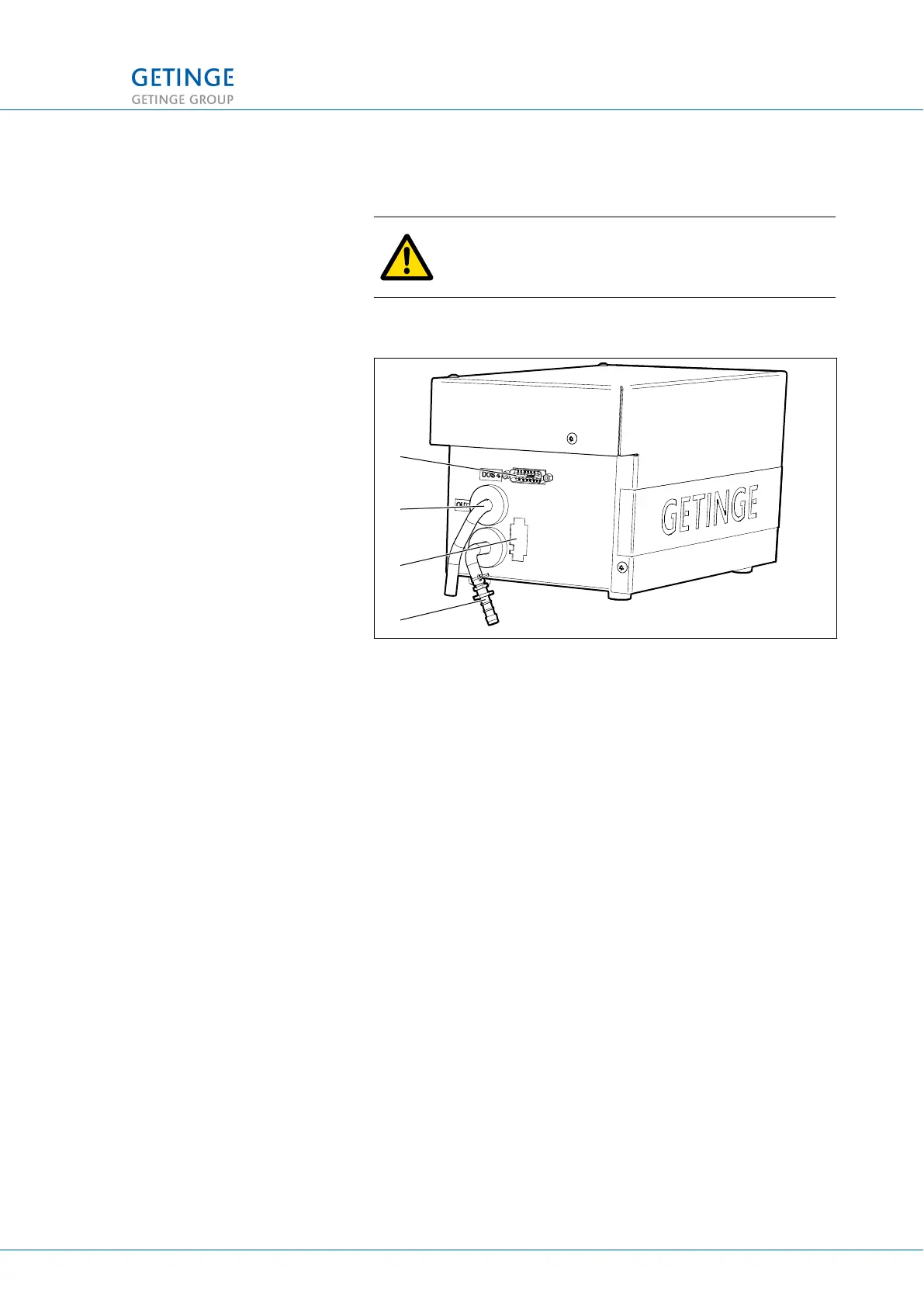

Connect the cables and hoses according to the drawing below.
000418
2
1
3
4
Figure 13. External dosing connections
1.
Connecting external dosing cable from the machine.
2.
Connecting machine
3.
Contact empty container alarm
4.
Hose empty container alarm
2 INSTALLATION
INSTALLATION MANUAL GETINGE WD15 CLARO
27 (48)
<Doc_INS><Doc_6001396702><Rev.I><Lang_en>
26
28
