2.4 Installing freestanding with lower cabinet

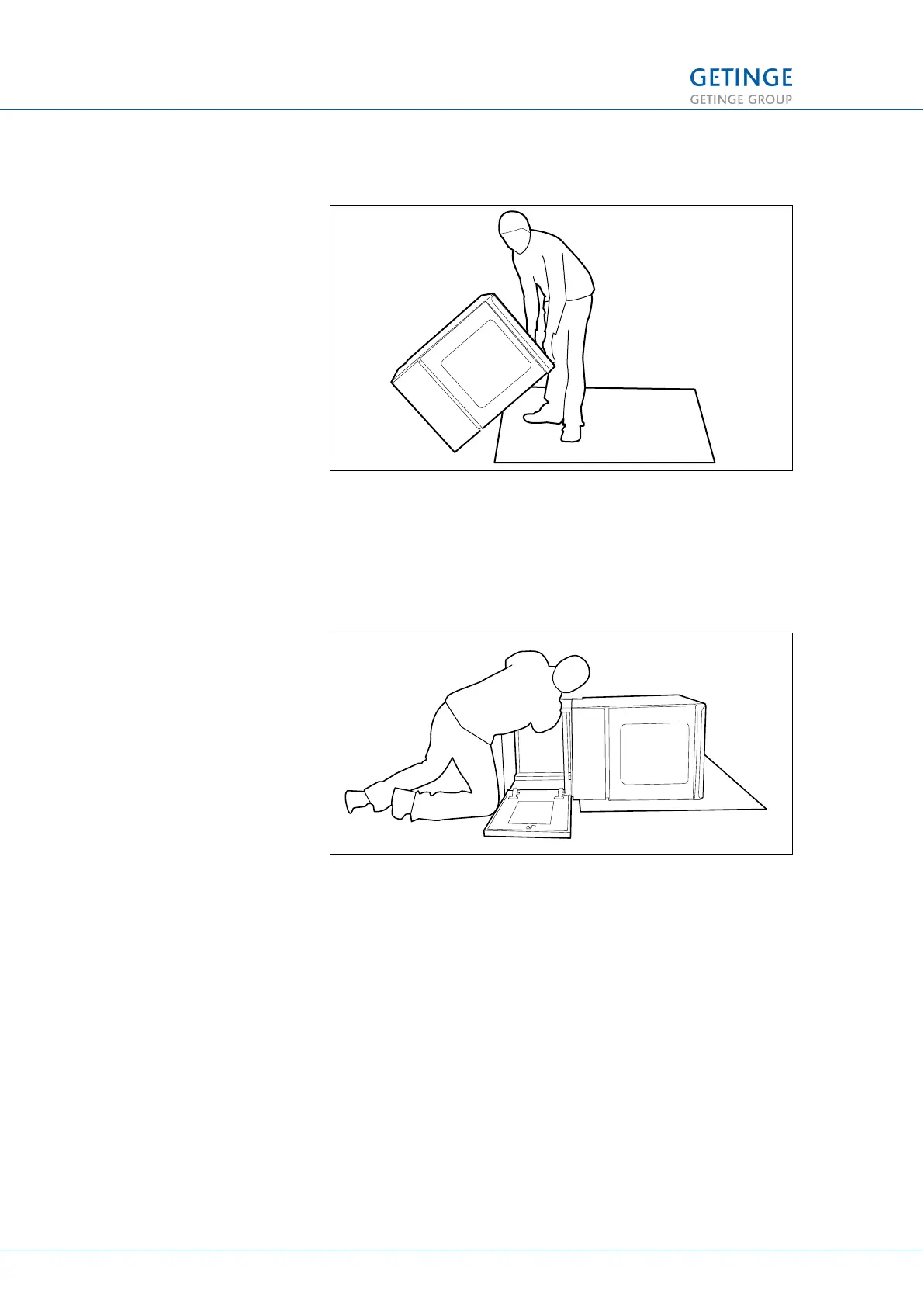

Figure 4. Put down a protective layer
Put a protective layer, e.g. the box that machine was delivered in,
on the floor.
Tip the machine so that the right side faces down toward the floor.
Gently place the machine down. Remove the accompanying legs
from the base plate.
Figure 5. Tip the machine
Install the lower cabinet on the bottom plate of the machine using
the bolts included. Make sure that they are properly tightened.
Close the cabinet doors before lifting the machine.
2 INSTALLATION
14 (48) INSTALLATION MANUAL GETINGE WD15 CLARO
