Adjustments
Lubrication
5
Maquet PowerLEDII
01810 EN 03
19 / 56
5 Adjustments
NOTICE
Ensure that the weight of the lighthead is the same whether being raised or
lowered and that it is stable in any position.
5.1 Lubrication

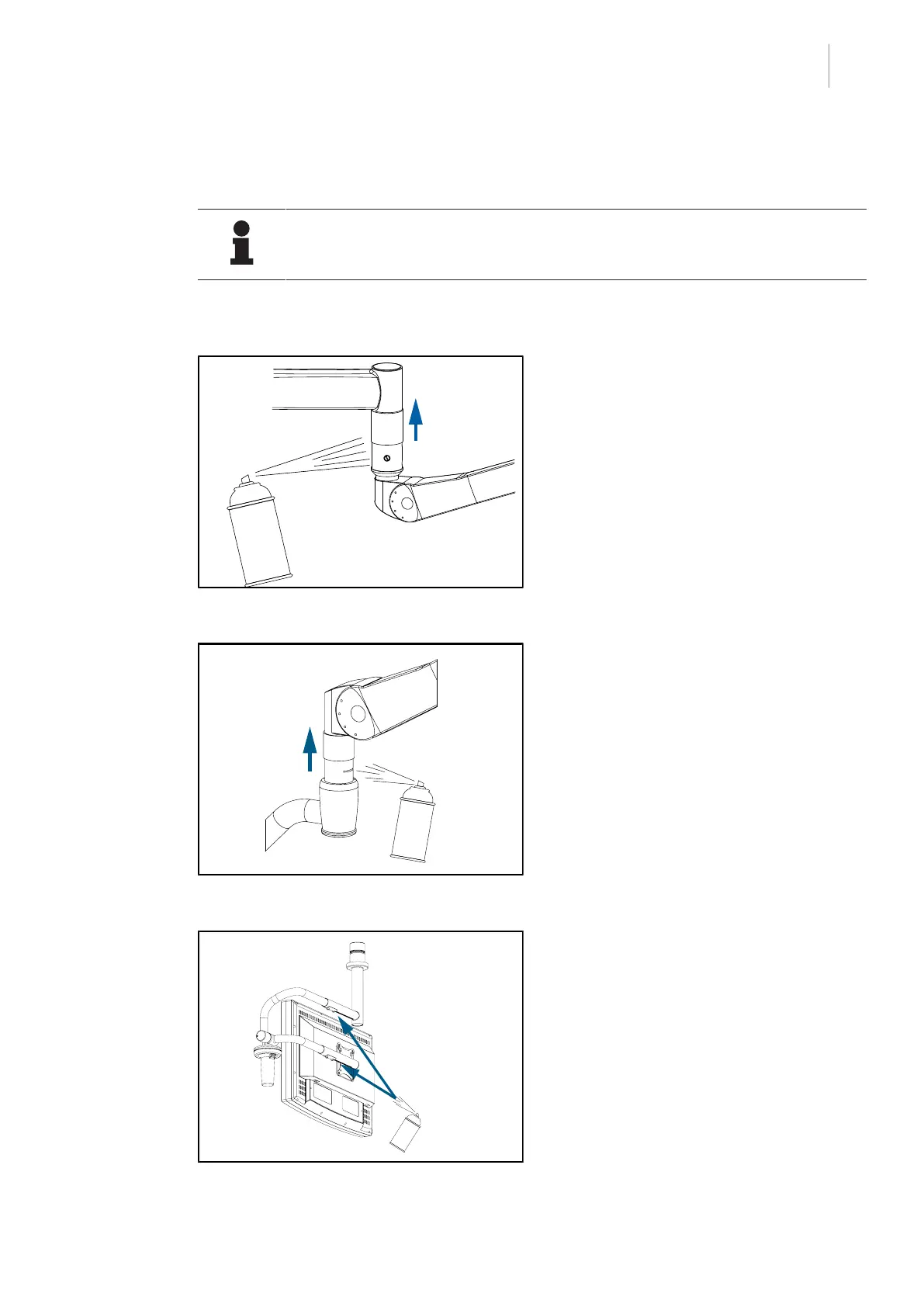

Fig.7: Suspension lubrication
Lubricating the suspension under the
safety ring
1. Remove the mounting screw and lift the
safety ring.
2. Spray lubricating grease at the location of
the safety ring.
3. Lower the safety ring and refit the mount-
ing screw.
Fig.8: Spring-arm lubrication
Lubricating the spring arm under the safety
ring
1. Remove the mounting screw and lift the
safety ring.
2. Spray lubricating grease at the location of
the safety ring.
3. Lower the safety ring and refit the mount-
ing screw.
Fig.9: Lubricating the XS-XD sliding tubes
Lubricating the XS-XD sliding tubes
1. Remove the mounting screws and anchor
plate.
2. Spray lubricating grease at the location of
the anchor plate; slide the tubes in and
out.
3. Refit the anchor plate and mounting
screws.
