Adjustments
Adjusting the Valia spring arms
5
Maquet PowerLEDII
01810 EN 03
21 / 56

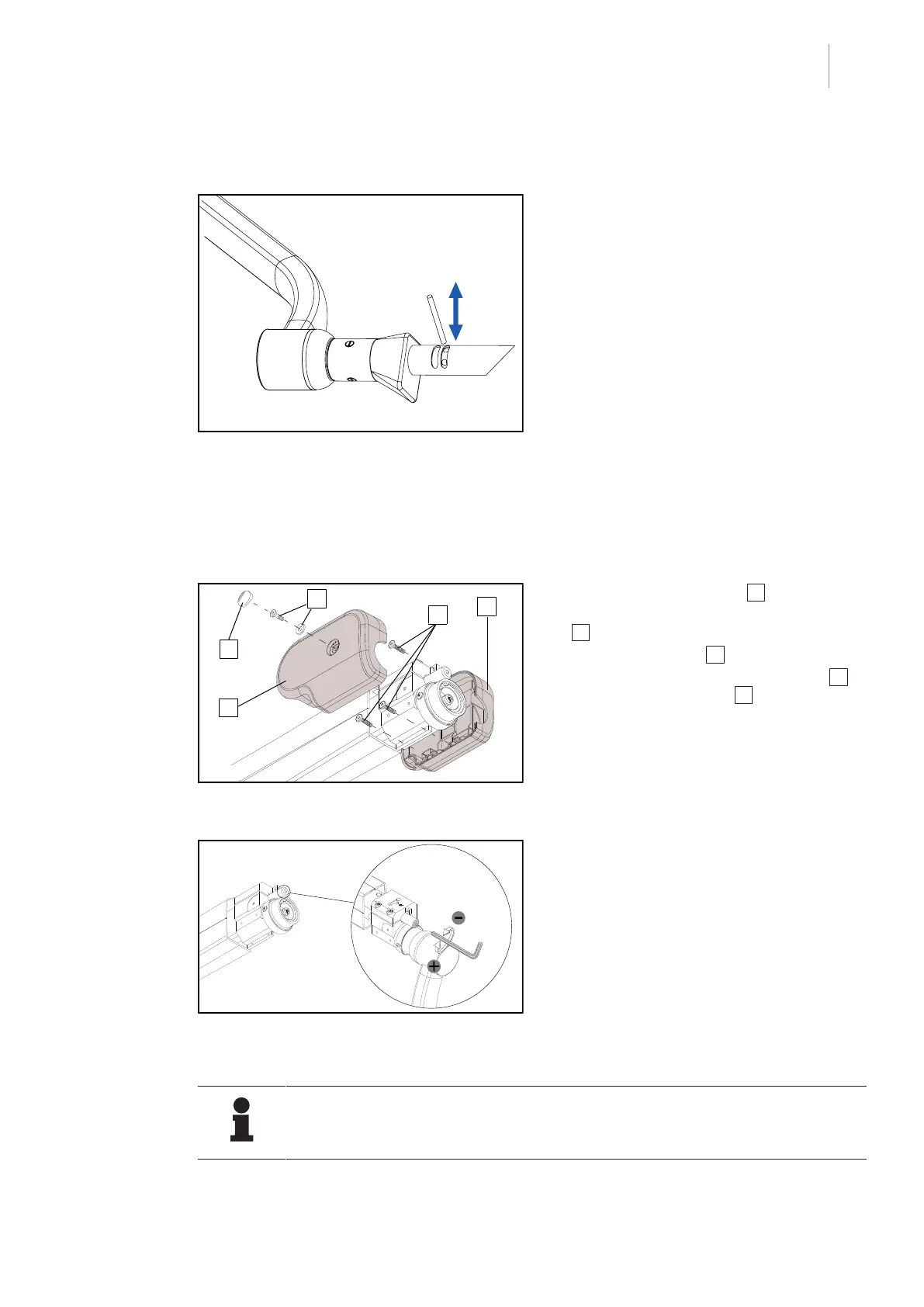

Adjusting the top stop (SF spring arm)
Fig.12: Ring motion
Raise the ring using the adjustment rod to
lower the stop.
Lower the ring using the adjustment rod to
raise the stop.
5.3 Adjusting the Valia spring arms
SF version
1
2
3
4
5
Fig.13: Removing the front flanges
Remove the screw cover 5 .
Remove the washer with the M4x10 screw
4 .
Remove the flange 3 .
Unscrew the three PT M3x12 screws 2
then remove the flange 1 .
Fig.14: Adjusting the top stop
Insert a 5-mm Allen key.
Tighten to raise the stop to + 20 degrees.
Tighten to lower the stop to 0 degrees.
NOTE
TIP: To make the adjustment easier, pull the arm slightly downwards to release the
adjustment screw
