Adjustments
Adjusting the brakes
28 / 56
Maquet PowerLEDII
01810 EN 03
5.4.3 Adjusting the XHS0 monitor mount tilt brake

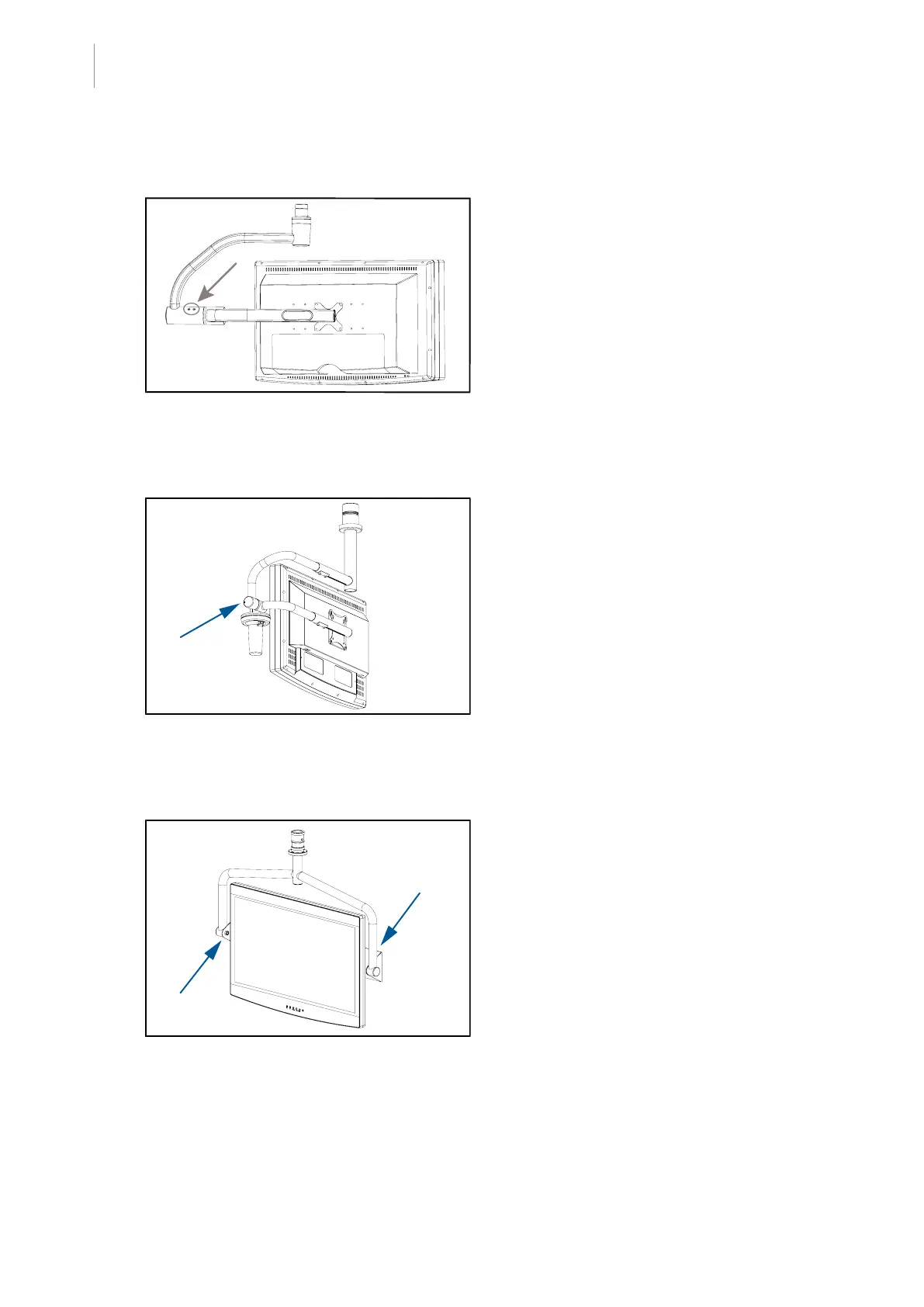

Fig.29: XHS0 monitor mount
• Adjust the two brake screws by screwing
in to increase the braking, or by unscrew-
ing to reduce the braking.
5.4.4 Adjusting the XS/XD monitor mount brakes
Fig.30: XS/XD monitor mount
• Adjust the brake screws (single (XS) or
dual (XD) monitor mount) to adjust the ri-
gidity of the rotation of the monitor on its
mount.
• Tighten the screw using a 3-mm Allen key
to make the mount more rigid, or loosen
the screw for a more flexible mount.
5.4.5 Adjusting the XS32 monitor mount tilt brakes
Z
Y
X
Peinture
Paint
Epargne de peinture
Unpainted surfaces
A convenance (peinture ou traces de peinture ou épargne)
The more convenient (paint or marks of paint or unpainted surfaces)
NOTES
:
- Les cotes et tolérances indiquées sur le plan sont données après traitement et peinture. Pour les cotes non tolérancées :
Tolérance = spécifications générales + tolérance traitement et peinture x nombre de surfaces
Dimensions and tolerances on drawing are given after treatment and painting. For non-toleranced dimensions :
Tolerance = general specifications + treatment and paint tolerance x number of surfaces
- Dimensions non spécifiées /Not specified dimensions :
- Cf. fichier/
Cf.file
"xxx"
- Tolérances/
Tolerances
: Cf. Spécifications générales /
cf. general specifications
- Chanfreins non spécifiés /
Chamfers without dimension
:
- Congés non spécifiés /
Fillets without dimension
:
- Casser les arêtes vives /
Break sharp edges
-Marquage /
Marking
Symbole "recyclable" /
"recyclable" symbol
Matériau / M
aterial
Dateur /
Dater
- Masse théorique /Theorical m
ass
:
- Volume /
Volume
:
³
02
Fig.31: XS32 monitor mount
• Adjust the two screws by screwing in to in-
crease the braking, or by unscrewing to re-
duce the braking.
