Inspections
Electrical inspections
6
Maquet PowerLEDII
01810 EN 03
45 / 56
XS-XD monitor mount
or
1
2
3
Fig.58:

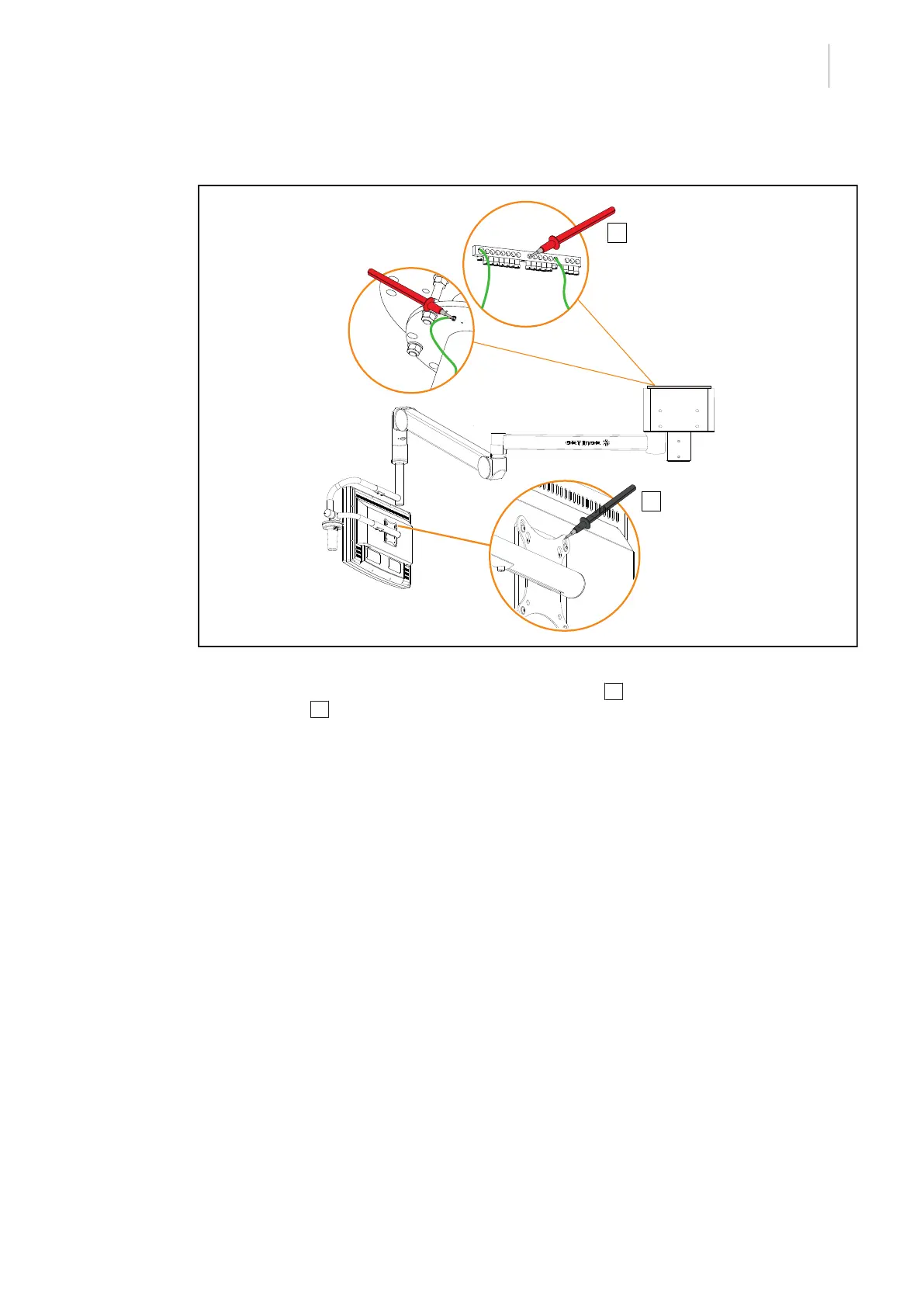

XS-XD electrical safety test
•
The measurement should be made between the flange
1
and the masked paint on the
VESA block
2
.
44
46
Table of Contents
Table of Contents
3
Introduction
5
Preface
5
Liability
5
Other Documents Relating to this Product
5
Symbols Used in this Manual
6
Cross-References
6
Reference Numbers
6
Actions and Results
6
Menus and Buttons
6
Hazard Levels
6
Indications
7
Symbols Used on the Product
7
Revision History
7
Safety Instructions
8
Technical Specifications
10
WPS Power Supply Connection Diagrams
11
Maintenance Procedures
15
Tools Required for Maintenance
15
Periodic Maintenance
15
Periodic Replacement Cycles
15
Replacing the Batteries
16
On the WPS Power Supply
17
Operations to be Performed on the Touchscreen
18
Adjustments
19
Lubrication
19
Adjusting the Acrobat 2000 and Ondaspace Spring Arms
20
Adjusting the Valia Spring Arms
21
Adjusting the Brakes
26
Adjusting the PWDII Suspension Brakes
26
Lighthead Brakes
27
Adjusting the XHS0 Monitor Mount Tilt Brake
28
Adjusting the XS/XD Monitor Mount Brakes
28
Adjusting the XS32 Monitor Mount Tilt Brakes
28
Adjusting the Brakes on SC07-SC05 Camera Mount
29
Inspections
30
Mechanical Inspections
30
Electrical Inspections
36
Electrical Evaluation
36
Performing Battery Tests
37
From the Wall-Mounted Control Keypad
38
From the Touchscreen Control Panel
39
