Gigabyte MD80-TM0 User Manual

Hardware Installation - 22 -
P12V_AUX2
P12V_AUX1
DEBUG
PORT
G.QBOFM
8
5
4
1

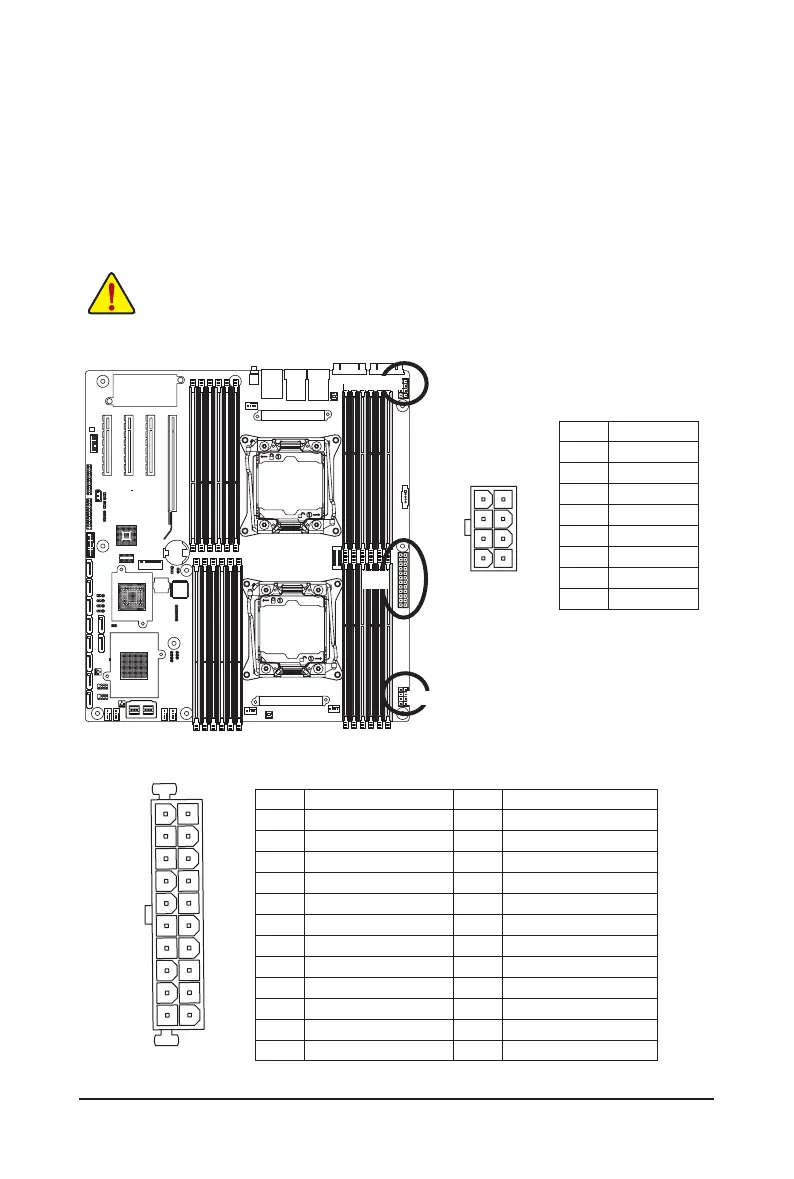

1/2/3) ATX1/P12V_AUX1/P12V_AUX2
(2x4 12V Power Connector and 2x12 Main Power Connector)
With the use of the power connector, the power supply can supply enough stable power to all the
componentsonthe motherboard. Before connecting thepowerconnector,rst makesurethe power
supply is turned off and all devices are properly installed. The power connector possesses a foolproof
design. Connect the power supply cable to the power connector in the correct orientation. The 12V
power connector mainly supplies power to the CPU. If the 12V power connector is not connected, the
computer will not start.
PinNo. Denition
1 GND
2 GND
3 GND
4 GND
5 +12V
6 +12V
7 +12V
8 +12V
• To meet expansion requirements, it is recommended that a power supply that can
withstand high power consumption be used (500W or greater). If a power supply is
used that does not provide the required power, the result can lead to an unstable or
unbootable system.
ATX113
1
24
12
ATX1
F_PANEL
F_PANEL
F_AUDIO
F_AUDIO
F_USB
COMB
MODEM
Smart Card Reader
SPDIF
AUX_IN
CD_IN
Secure Gigital /
Memory Stick
Serial ATA
F_USB
F_1394
CPU_FAN
SYS_FAN
PWR_FAN
NB_FAN
Power
WOL
SUR_CEN
IR/CIR
F_PANEL
F_PANEL
PWR_LED
CLR_CMOS
BIOS_WP
CLR_CMOS
BIOS_WP
CI
DPVRM
CLR_PWD
FDD
ATX
ATX_12V
IDE
IR
COMB
SPDIF_IO
F1_1394
F2_1394
GAME
SMB_CONN
F_AUDIO
(NEW)
F1_1394
PinNo. Denition
13 3.3V
14 NC
15 GND
16 PS_ON
17 GND
18 GND
19 GND
20 NC
21 +5V
22 +5V
23 +5V
24 GND
PinNo. Denition
1 3.3V
2 3.3V
3 GND
4 +5V
5 GND
6 +5V
7 GND
8 Power Good
9 5VSB (stand by +5V)
10 +12V
11 +12V
12 3.3V
P12V_AUX2
P12V_AUX1
ATX1
