Hardware Installation - 24 -
• ARAID0orRAID1congurationrequiresatleasttwoharddrives.Ifmorethantwoharddrives
arecongured,thetotalnumberofharddrivesmustbeanevennumber.
• ARAID10congurationrequiresfourharddrives.
(Note) WhenaRAIDcongurationisbuiltacrosstheSATA6Gb/schannels,thesystemperformanceof
  theRAIDcongurationmayvarydependsonthedevicesareconnected.
7
1
DEBUG
PORT
G.QBOFM

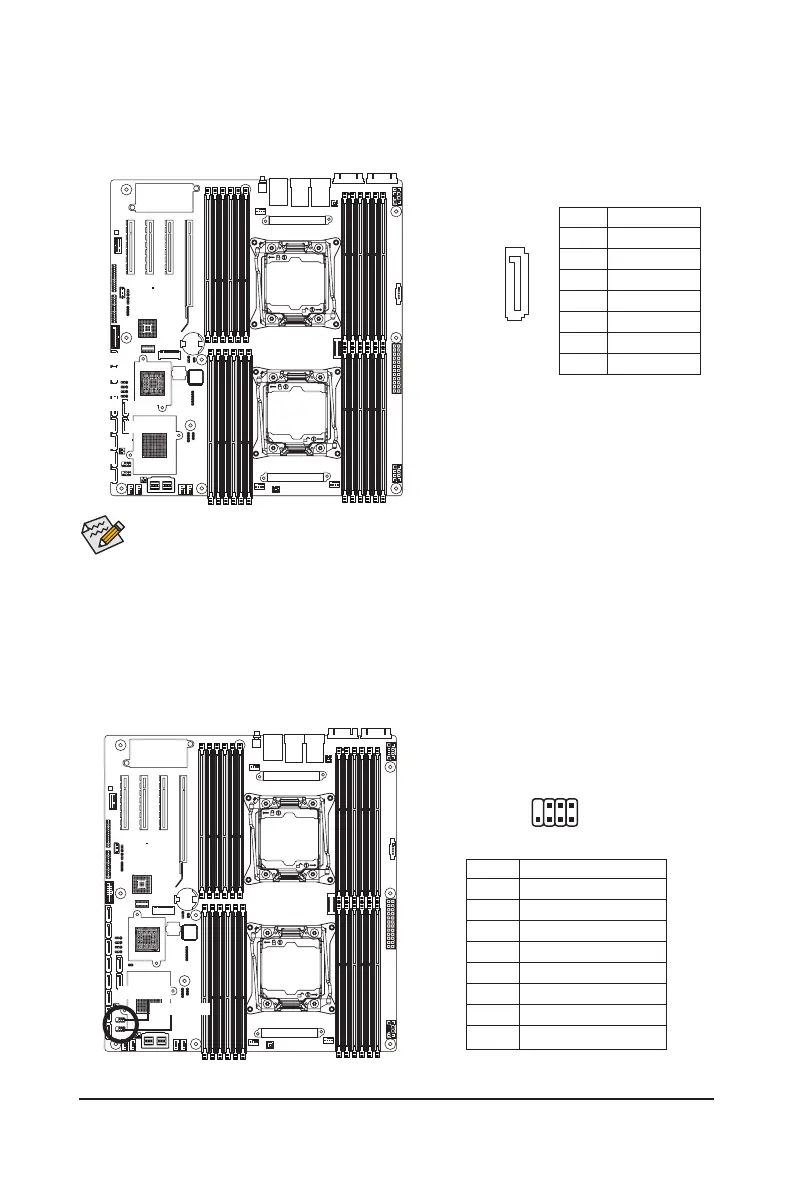

12/13) SATA0/SATA1 (SATA 6Gb/s Connectors/SATA4/5 Support SATA DOM Function)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and
1.5Gb/s standard. Each SATA connector supports a single SATA device.
Please see page 35 for SATA DOM jumper setting.
SATA0
PinNo. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
SATA5
SATA4
SSATA0
SSATA1
SSATA2
SSATA3
SATA3
SATA2
SATA1
14/15) SATA_SGP/SSATA_SGP (SAS SGPIO Headers)
SGPIO stands for Serial General Purpose Input/Output which is a 4-signal (or 4-wire) bus used between
a Host Bus Adapter (HBA) and a backplane. Out of the 4 signals, 3 are driven by the HBA and 1 is driven
by the backplane. Typically, the HBA is a storage controller located inside a server, desktop, rack or
workstation computer that interfaces with Hard disk drives (HDDs) to store and retrieve data.
7
1
82
PinNo. Denition
1 DATAIN
2 No Pin
3 DATAOUT
4 GND
5 GND
6 LOAD
7 NC
8 CLOCK
SSATA_SGP
SATA_SGP
