Hardware Installation
- 36 -
5)

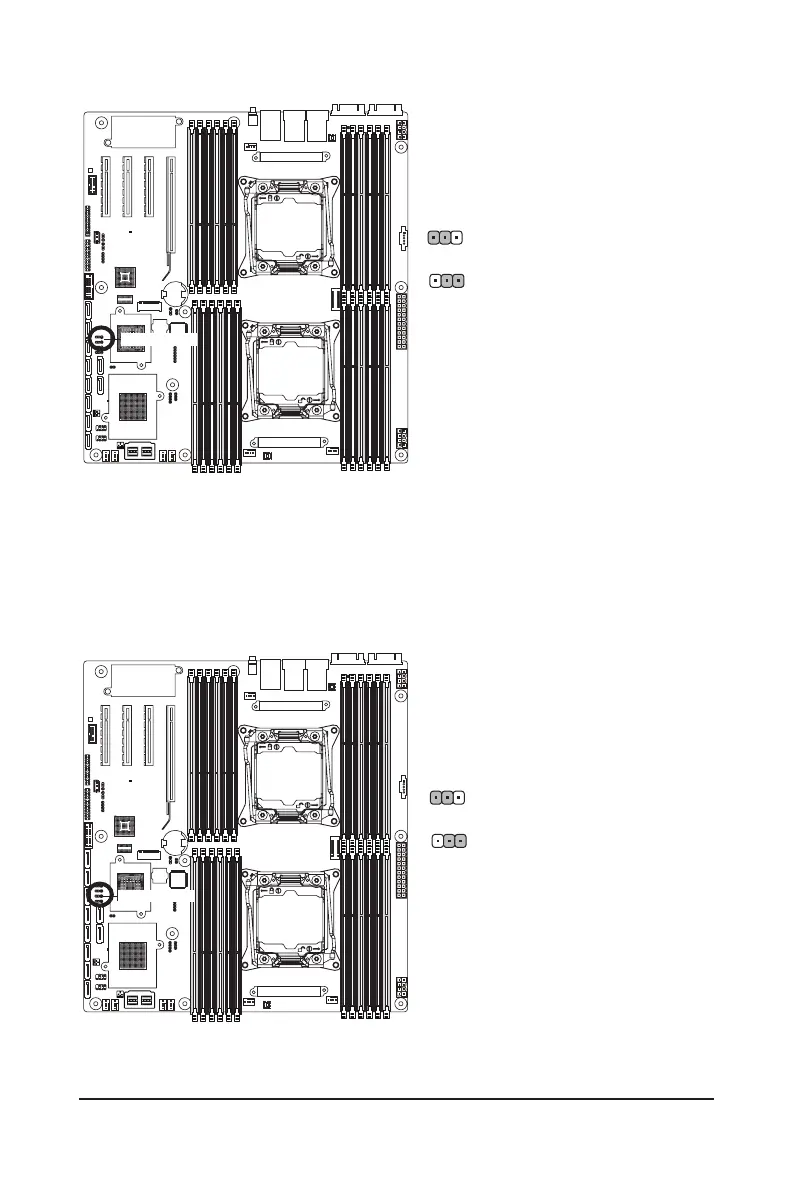

BIOS_PWD (Clearing Supervisor Password Jumper)
2-3 Close: Skip supervisor password.
1-2 Close: Normal operation. (Default setting)
1-2 Close: Normal operation. (Default setting)
2-3 Close: ME recovery mode.
6)
ME_RCVR (ME Recovery Jumper)
1
1
1
1
BIOS_PWD
ME_RCVR
35
37
