Figure 20

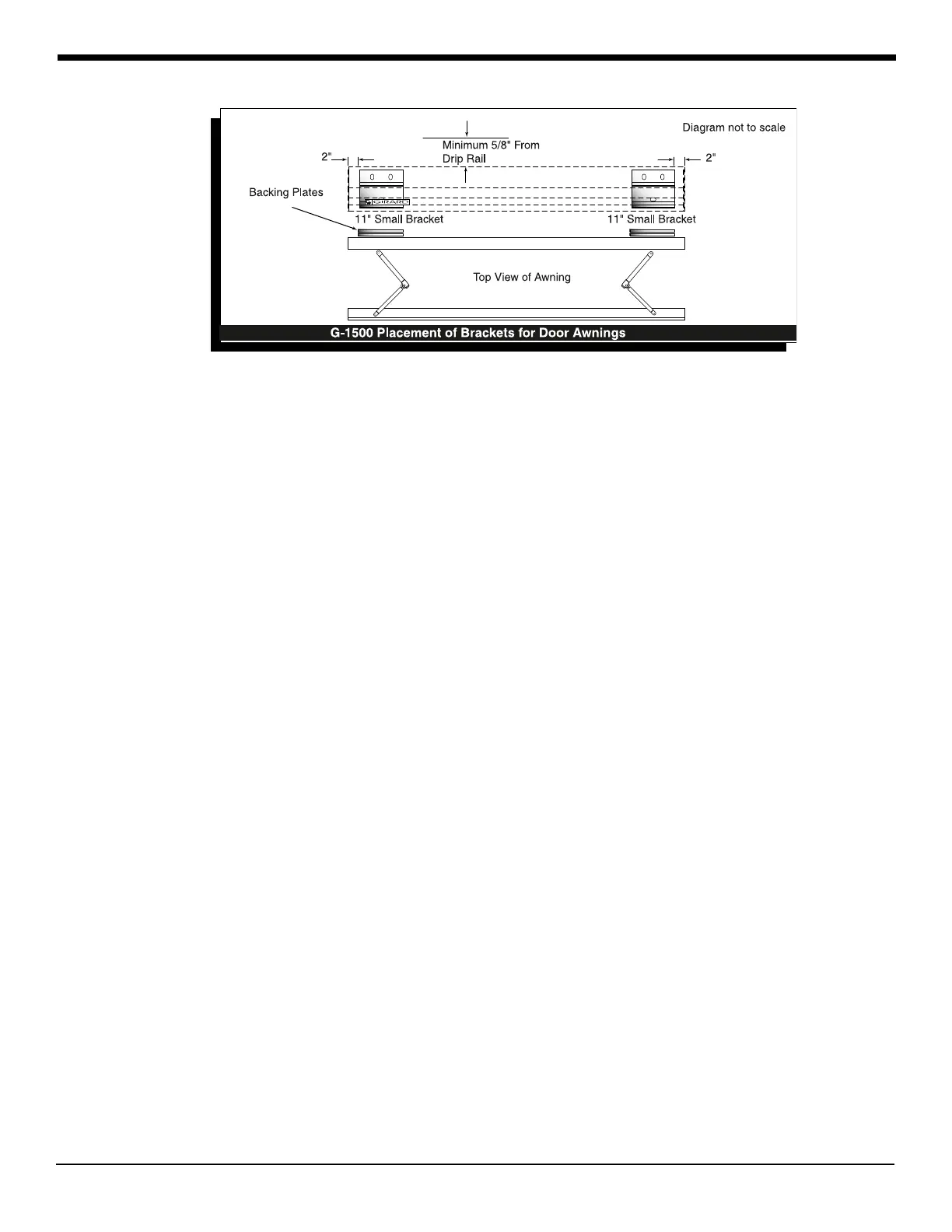

G-1500 Bracket Positioning
3. Move slide locks along awning channel until they clear brackets. The brackets will then
release and can be removed from awning.
4. Using brackets as templates, measure and mark bracket hole locations so placement lies:
a. directly behind arm locations of awning casing; and
b. parallel to vehicle body features, as high as possible on vehicle (not less than 5/8" from
bottom of drip rail) so awning lip will clear (Fig. 19 or Fig. 20).
5. Snap a string (chalk) line along the side of the vehicle to ensure horizontal accuracy of the
mounting brackets. Minimum 5/8" from bottom of the drip rail (Fig. 21).
