GL-INET Opal User Manual

Page 117 | 153

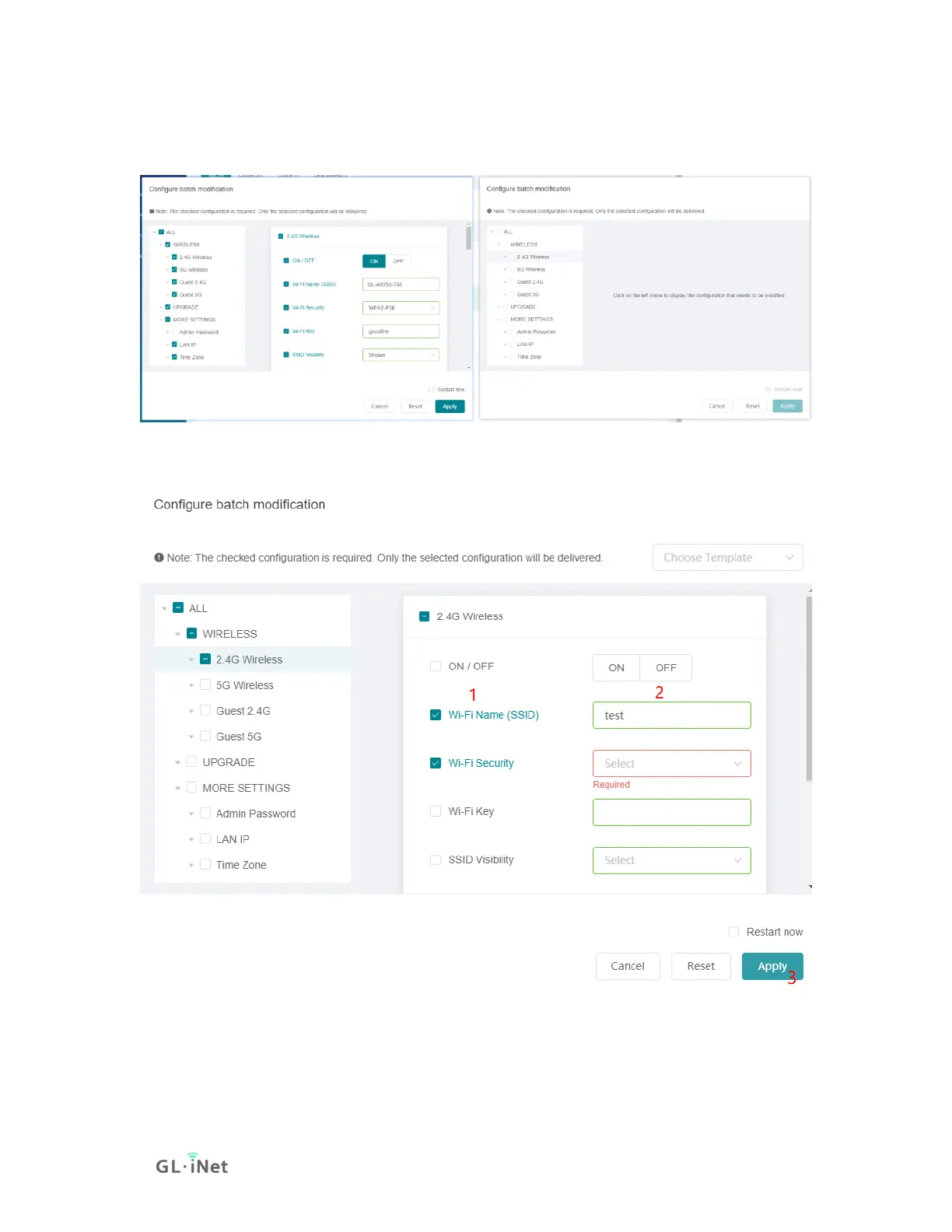

The left side of image below is correct. If your interface is like the right side of
image below, please upgrade to latest testing firmware.
Check the configuration that needs to be modified and input value.
The checked configuration is required, and only the configuration that conforms
to the rule can be filled out. After the configuration is delivered, it does not take
effect immediately. The configuration takes effect and the device needs to be
restarted. You can check the Restart now option in the lower right corner of the

GL-INET Opal Specifications

General

RAM	128 MB DDR2
WiFi	802.11b/g/n
USB Port	1 x USB 2.0
VPN Support	OpenVPN, WireGuard
Operating System	OpenWrt
Processor	QCA9531, 650MHz
Flash Storage	16 MB
Ethernet Ports	2 x 10/100 Mbps
Power Input	5V/2A
