GL-INET Opal User Manual

Page 8 | 153

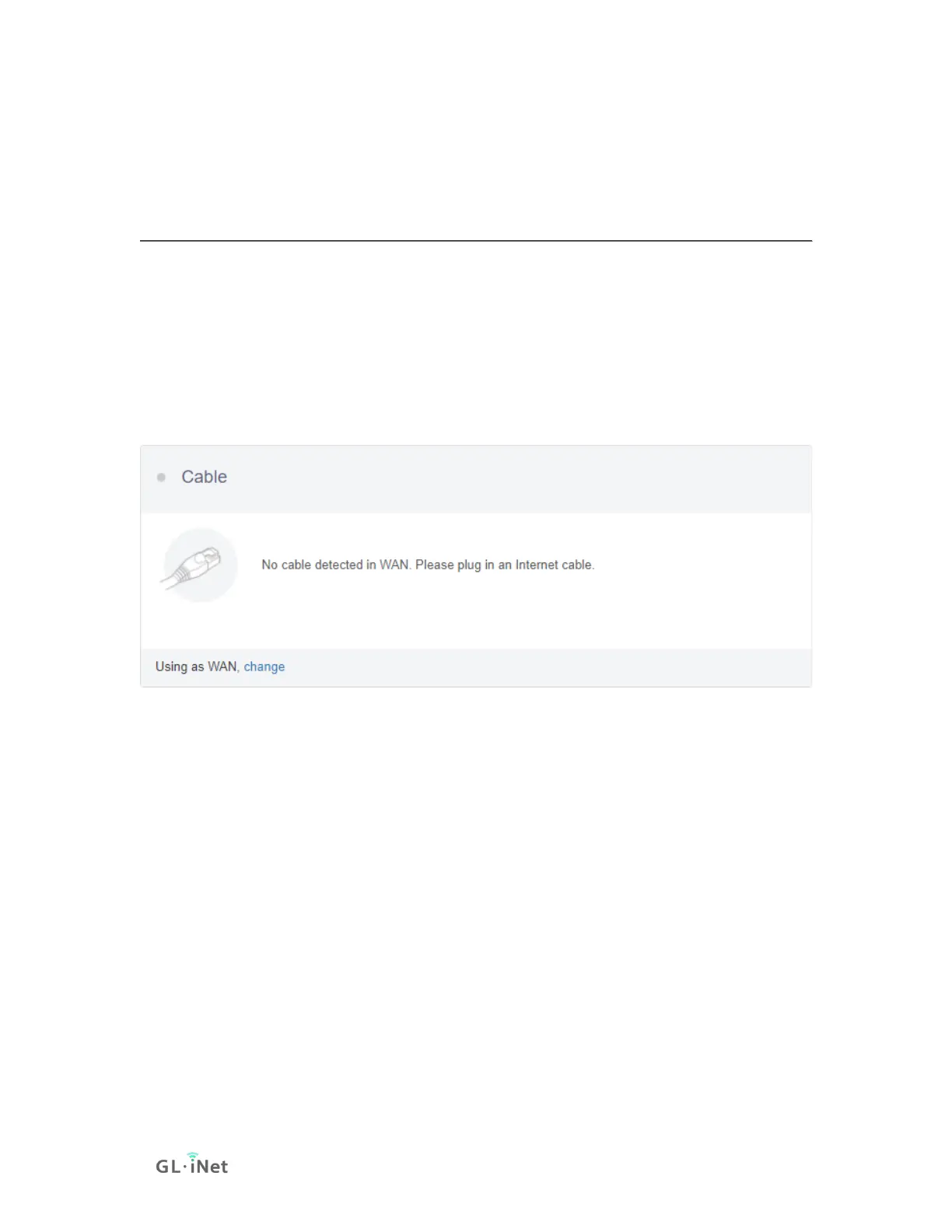

2.1. Cable
Connect the router to the modem or main router via Ethernet cable to access the
Internet.
Before plugging the Ethernet cable into the WAN port of the router, you can click
Use as LAN to set the WAN port as a LAN port. That is useful when you are using
the router as a repeater. As a result, you can have one more LAN port.
Plug the Ethernet cable into the WAN port of the router. The information of your
connection will be shown on the Cable section. DHCP is the default protocol. You
can click Modify to change the protocol.

GL-INET Opal Specifications

General

RAM	128 MB DDR2
WiFi	802.11b/g/n
USB Port	1 x USB 2.0
VPN Support	OpenVPN, WireGuard
Operating System	OpenWrt
Processor	QCA9531, 650MHz
Flash Storage	16 MB
Ethernet Ports	2 x 10/100 Mbps
Power Input	5V/2A
