GL-INET Opal User Manual

Page 125 | 153
1) Turn on one-click Internet access
2) Choose the network that you want to use Portal. LAN is for LAN clients,
include wired clients. Guest is for Guest clients which access by Guest Wi-Fi.
3) Set free internet time.
4) Certification URL is the default page that clients will force redirect to when
they are connected, e.g. https://www.gl-inet.com
5) Apply the configuration.
For wired desktop client, please use browser to access a http(not https) website,
e.g. http://neverssl.com or http://apple.com/? , then you will see the portal.

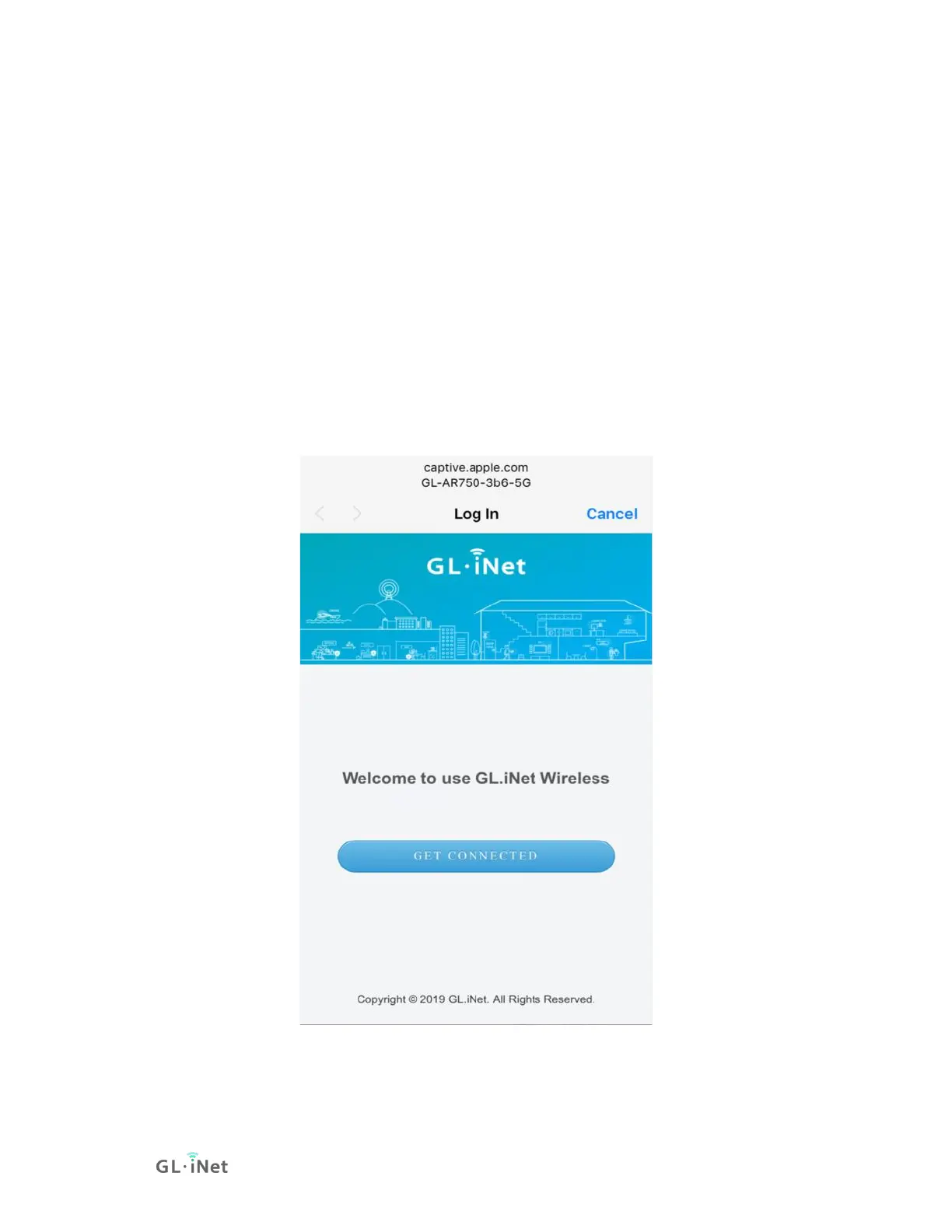

Below is the Portal on iPhone, click the "GET CONNECTED" button to access the
internet. On Android and desktop platform, it's a similar interface.

GL-INET Opal Specifications

General

RAM	128 MB DDR2
WiFi	802.11b/g/n
USB Port	1 x USB 2.0
VPN Support	OpenVPN, WireGuard
Operating System	OpenWrt
Processor	QCA9531, 650MHz
Flash Storage	16 MB
Ethernet Ports	2 x 10/100 Mbps
Power Input	5V/2A
