13-16
OPERATOR MAINTENANCEUSER HANDBOOK
Note: Fitting of the battery cover assembly is a reversal of the
removal procedure and therefore the following steps and
relevant Figs. should be referred to.
5) Before tting the battery cover, check the O-ring for signs
of damage or wear and replace if necessary. Refer to Fig.
13.12.

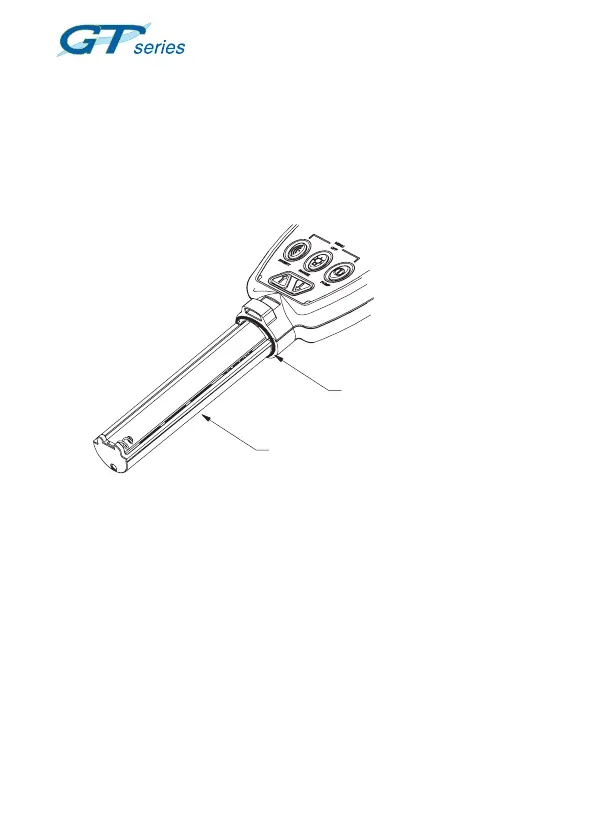

INSTRUMENT HANDLE /
BATTERY COMPARTMENT
O-RING
(Part No.76038)
Fig. 13.12 Replace O-Ring
6) Slide the battery cover over the instrument handle until the
securing catch engages with the instrument body.
7) Check that battery cover is secure and catch is properly
engaged.
8) Replace the captive thumb screw in the battery cover then
tighten in a clockwise direction to secure. Do not overtighten
the thumb screw.
