Goelst G-Motion - Preparation; System Identification; Overview of Components

9
2
GM-421-0010 / 00000
Made in the Netherlands100-240V ~1.5A 50-60Hz
CID:
PCID:
SW:
SN:
HW: PD:
IP40
RoHS
English
Preparation

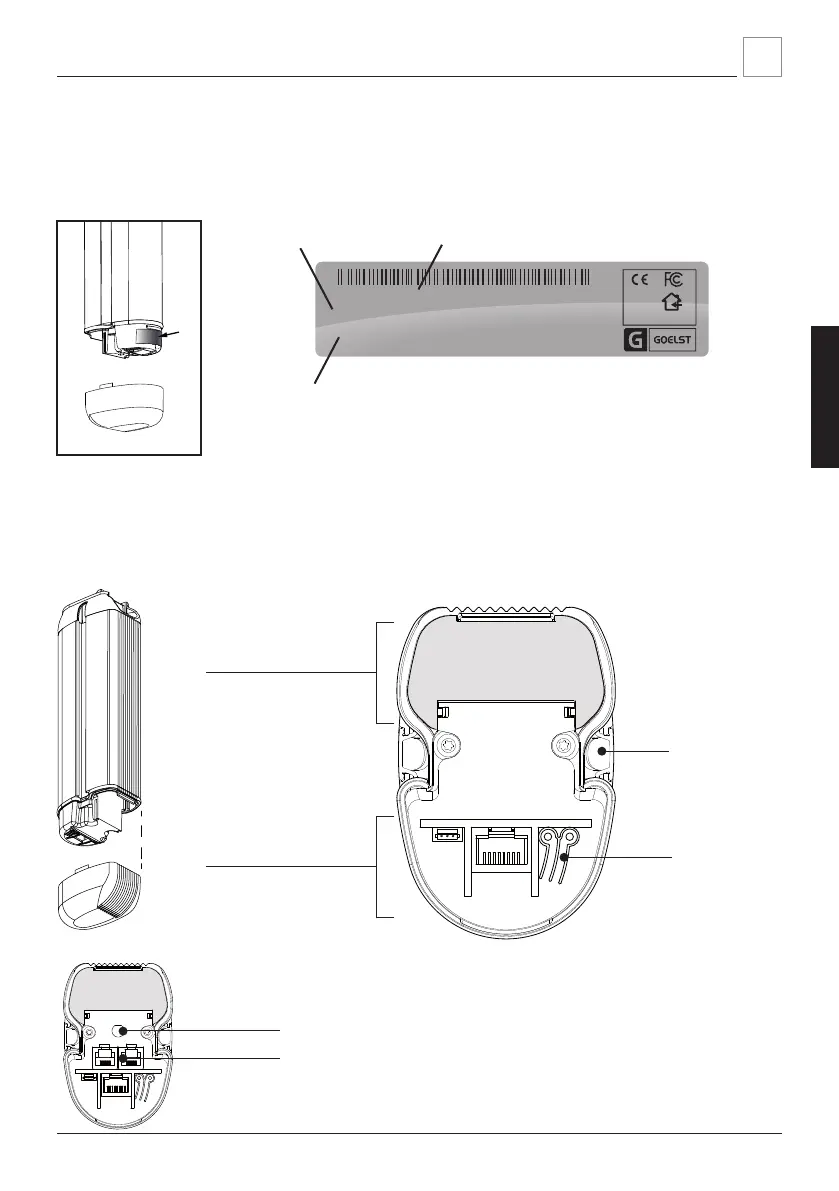

2.2 Overview of components
Underside of the motor-unit with bottom cover removed
Powering area,
§2.3
(also Phase switching)
Wired controls area,
§2.4
side channels
for cable
management
optional for Wi antenna
optional, 2x RJ11, for Tandem conguration
programming- /
operating buttons
2.1 System identication
To identify motor unit type, see attached label as shown below:
In tandem systems both motor-units carry a “partner ID” from their partner motor.
Motor type
If applicable:
Partner Motor ID
Unique Motor ID
(example)
