First use: auto calibration
English

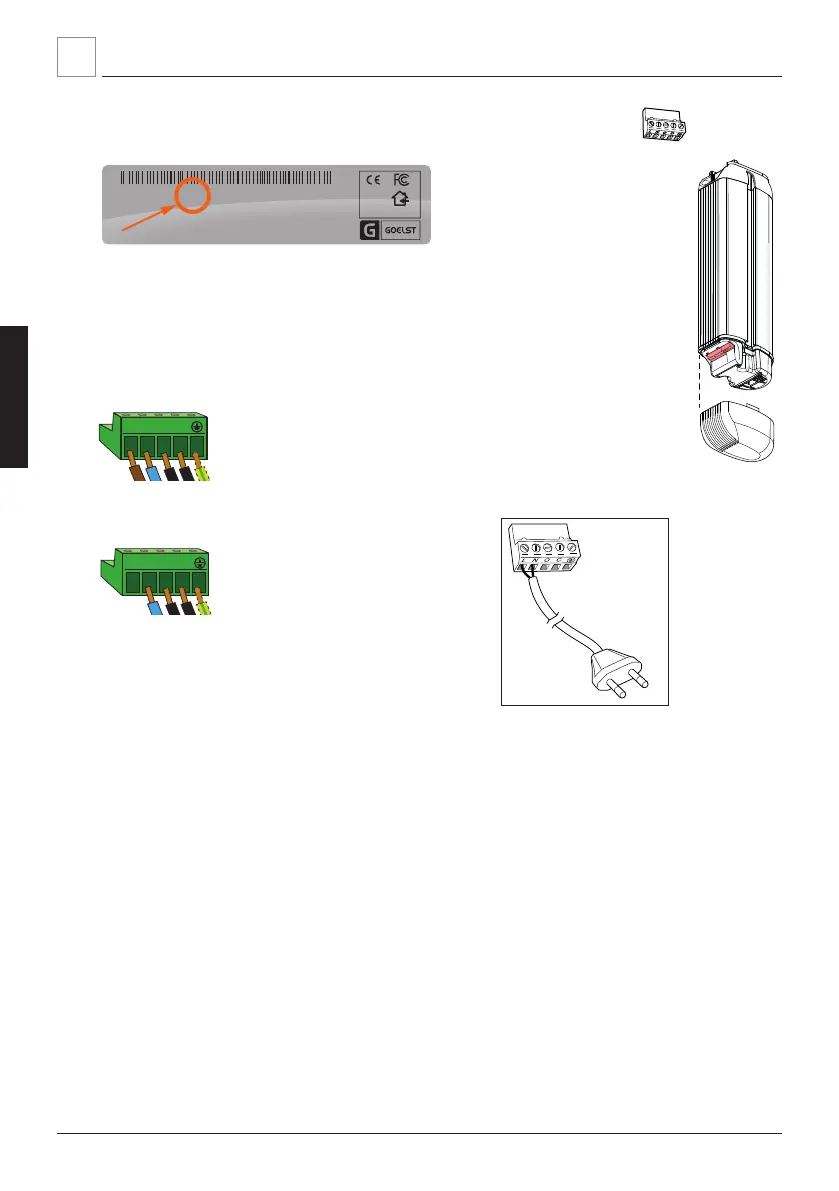

3.2 Auto calibration, GM-x20-xxxx with 5-core connector.
Motor types with motor code x20-xxxx as shown in the label
above, are controlled via a 5P-connector, commonly wired with 5
or 4 wires (incl. GND). To provide power to the motor unit during
auto calibration, a special powering cable is needed for the con-
nectors without ‘L’ connnected:
Motor types x20-xxxx.
After completing the auto calibration cycle, the power cable (1348-GM04) must be
replaced by the 5-P-connector intended for controlling the G-Motion motor unit.
Keep the power cable 1348-GM04 cable for future changes in settings.
Line - in “L” NOT connected :
To enable the Auto calibra-
tion step, a special power
cable is required:
(art no 1348-GM04)
Line - in “L” connected :
G-Motion will auto calibrate
normally.
opt.
N O CL
male
connector
L - 100V - 240VAC
N - Neutral
O - Open
C - Close
- GND, optional
1348-GM04
(EU version)
GM-x20-xxxx / xxxxx
IP40
RoHS
Made in the Netherlands100-240V ~1.5A 50-60Hz
CID:
PCID:
SW:
SN:
HW: PD:
N O CL
opt.
X
L - not used
N - Neutral
O - Open
C - Close
- GND, optional
male
connector
