Pilot Release System, mechanical. (not in combination with CPS)
Pilot Release System, allows curtains to be operated by hand in the event of emergency, power
failure and/or product unfamilarity. For 6200, 6200-T and 6300. Maximum curtain weight on the
metal carrier-arm: 0,5 kg.
guidelines for curtain weight by
dierent curtain height
minimum hanging height: 2,5m
For specications of the pilot runner PRS see chapter 1
Function

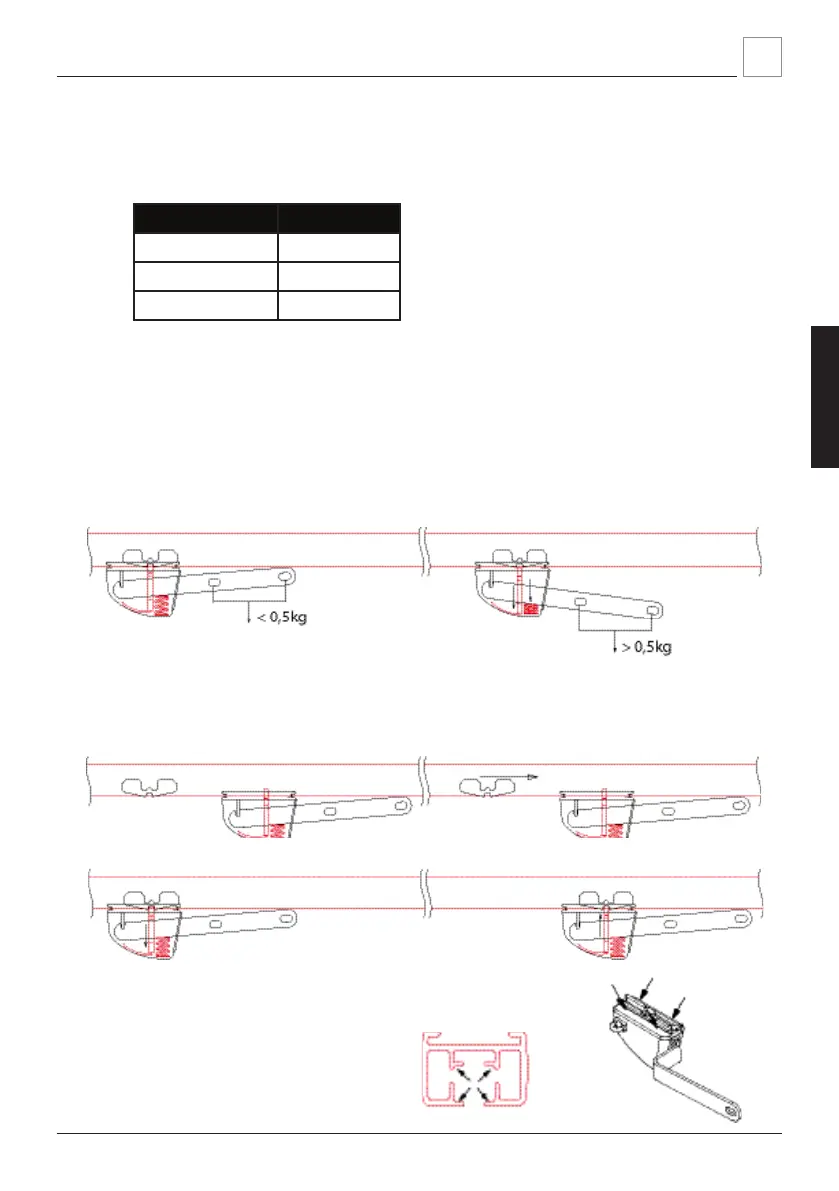

Disconnect: The PRS device has a weight hanging maximum of 0.5 kg. When this weight is exceed-
ed, the system automatically disconnects and the system will no longer work. In order to discon-
nect the PRS a force greater than 1.5 kg is required. The system can disconnect in the open and
close direction. In a split stacked system also one stack can be disconnected.
Operation: When the PRS is disconnected it can be re-connected electrically or by hand. The left
image shows how the system is connected by hand. The right image shows how the system is
connected electrically.
Lubricate
Using silicone spray - lubricate rail and faces of PRS-housing sparingly
where shown. See also chapter B7.
curtain height weight
3 m
500 gr/m²
4 m
400 gr/m²
5,5 m
300 gr/m²
Pilot Release System
