Goelst G-Motion - Fixing; Product Overview

To Next Page

To Previous Page

English

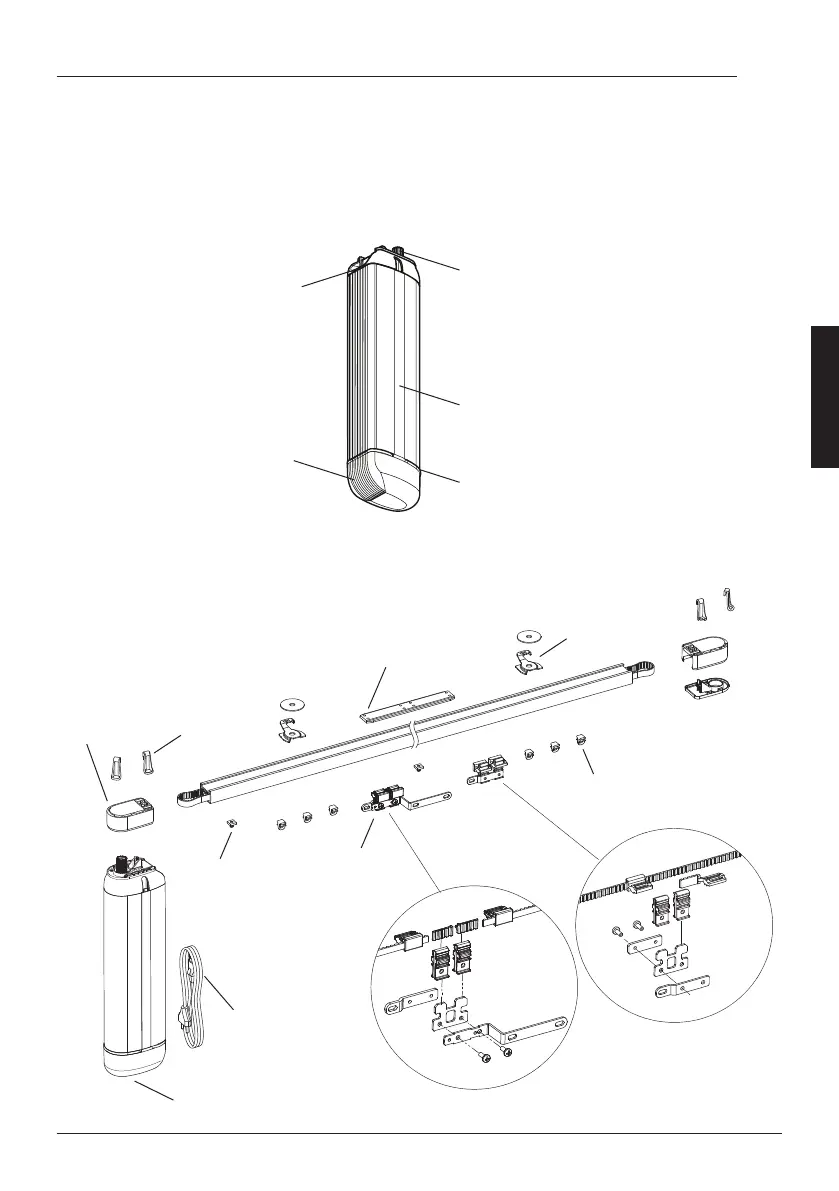

Exploded view of a typical 6200 curtain rail system, for split stack,

with a motor unit and main components.

Fixing

Power supply

p. 10

Pulley

p. 5, 6

Bridge (split system)

Support

p. 3, 4

Glider

p. 6

Pulley hook

p. 5

Pilot carrier

p. 7

End stops

Motor

p. 9-11

1.1 Product overview

Below, a G-Motion motor unit, with its main functional components.

sliding lock, to

secure the motor

unit to the curtain

track

bottom cover,

acces to connections

LED for visual feedback

cable management,

with cover prole

driving gear,

inserts into to cur-

tain track pulley
