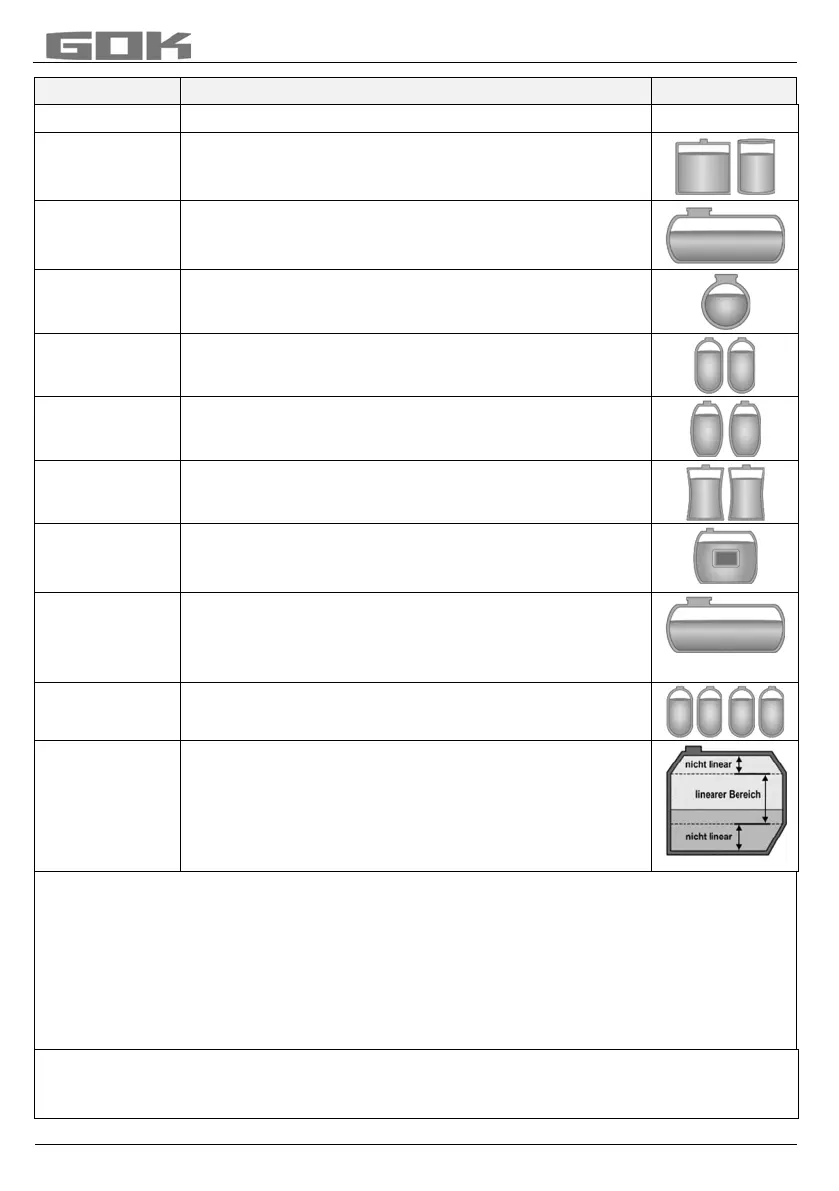

Select Tank shape with [Enter]
linear tank, rectangular tanks, vertical cylinders,
basement-welded steel tanks.
horiz.
cylindrical tank to 50 m³ (see also alternative cyl. >
50,000 litres), horizontal cylinders; tubular tanks,
typical shape for steel outdoor or buried tanks.
spherical tank; buried tanks with spherical
basic shape; frequently plastic buried tank (GRP).
oval basement tanks; typical shape of GRP
tanks and single-walled sheet metal tanks
Plastic battery tanks, convex,
slightly convex shape, alternative to linear
Plastic battery tanks, concave,
slightly concave shape, alternative to linear
with recess
Plastic tank with a large recess (hollow) in the center
> 50.000 L
large cylindrical outdoor tank 50000 litres to 100000
litres; a special bearing chart conversion table can be
ordered specifically for large cylindrical tanks of 50 m³ to
tanks
Plate tank or plate tank battery
linear side walls, with semicircular arc top and bottom.
chart
Enter a special tank shape from existing bearing chart.
For this purpose, up to 16 value pairs (height in cm +
volume in L) can be entered.
Before the value pairs are entered, the values for the
tank volumes must be entered in in steps "4.Tank
volume" and "5. Internal tank height".
Index: 1 xxx.x cm xxxx L
Index: 2 . cm L
Index: 3 . cm L
max.
Index:16 max. cm max. L
Specified value pair (do not have to be entered).
first value pair entered
max. inside height of tank
the max. tank volume menu
step “5.Internal tank height” is allocated automatically
and does not have to be entered.
Not all 15 intermediate value pairs (Index: 1 - 15) have to be entered.
A linear interpolation is made between 2 interpolation values. For a linear range of the tank
geometry it is sufficient to enter a lower and an upper value pair.
