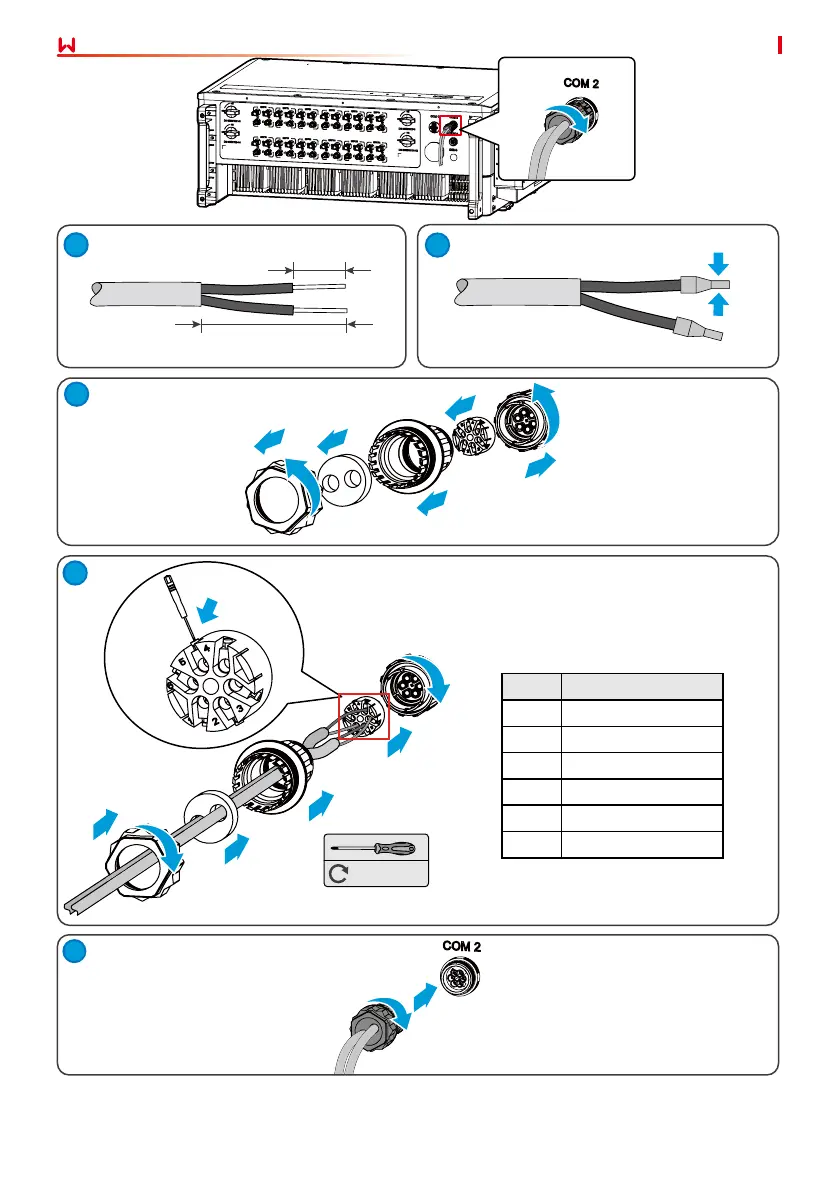

06 Electrical Connection
User Manual V1.1-2022-07-20
4
3
7
6
2
5
6
4
3
4
7
1
1
2
3
0.3~0.4N·m
6.5mm
25mm
1
2
5
No. Function
1 RS485-A1
2 RS485-B1
3 RS485-A2
4 RS485-B2
5 Grounding
6 Grounding
5
1
2
