Goodwe HT Series User Manual

31
User Manual V1.1-2022-07-20 06 Electrical Connection
Connecting the Remote Shutdown Communication Cable
Communication Type COM
Port
Port Denition Function Description
Remote Shutdown COM3
1: DI_SHUT0FF1_A
2:
DI_SHUTOFF1_B
3: Reserved
4: Reserved
5: DI_SHUTOFF2_A
6: DI_SHUTOFF2_B
The remote shutdown port is
reserved to meet the safety
regulations in Europe. Related
devices have to be prepared by
customers.

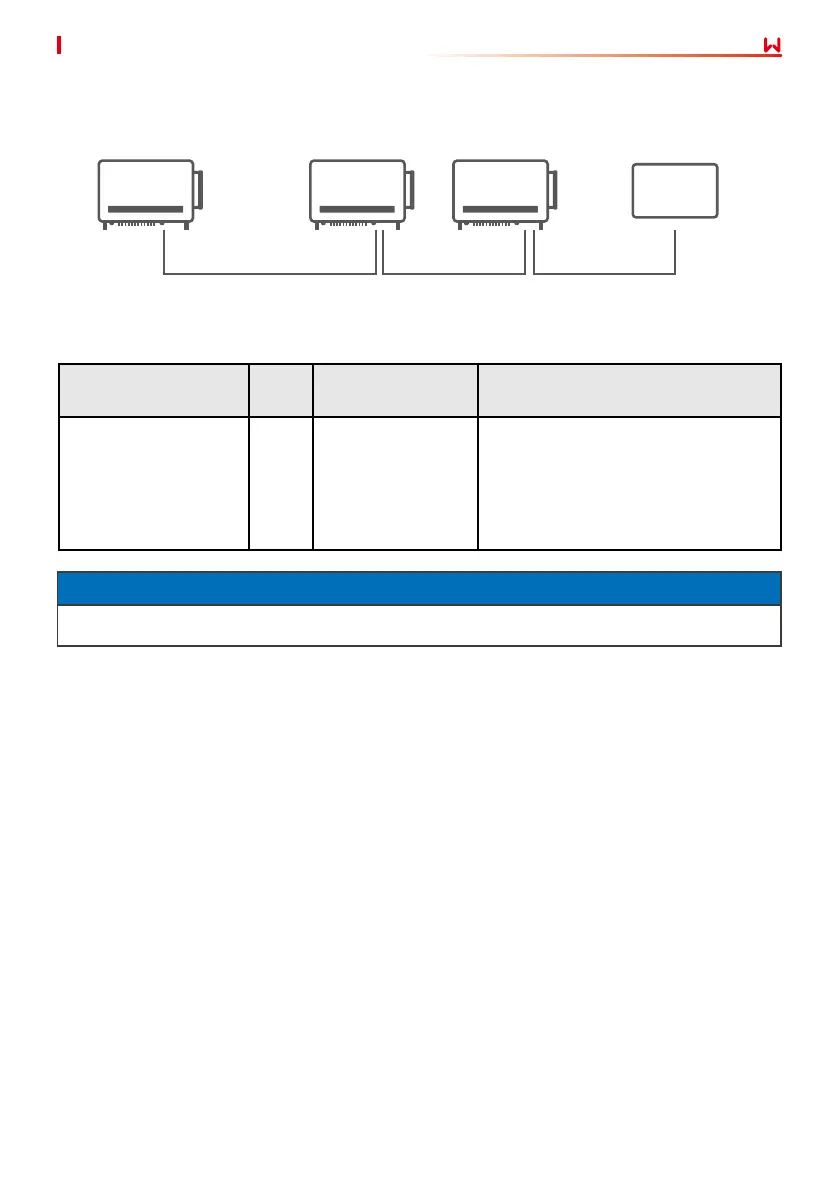

Remote Shutdown networking scenario
Inverter N Inverter 2 Inverter 1
Control
room
1 ≤ N ≤ 20
Remote Shutdown
Remote Shutdown
Remote Shutdown
NOTICE
Connect the Remote Shutdown cable using a 6PIN communication terminal as follows.

Goodwe HT Series Specifications

General

Max DC Input Voltage	1100V
MPPT Voltage Range	200-1000V
Max AC Output Power	3.6kW to 10kW
Number of MPPTs	1 or 2
Max PV Input Voltage	1100V
MPPT Range	200-1000V
AC Output Frequency	50/60Hz
Communication	RS485, Ethernet
Operating Temperature Range	-25°C to 60°C
Protection Level	IP65
