1.3 Logical Structure
The logic of the SL201-G4 Series Dual-Socket Rack-Mount Server is as shown in
the following diagram:

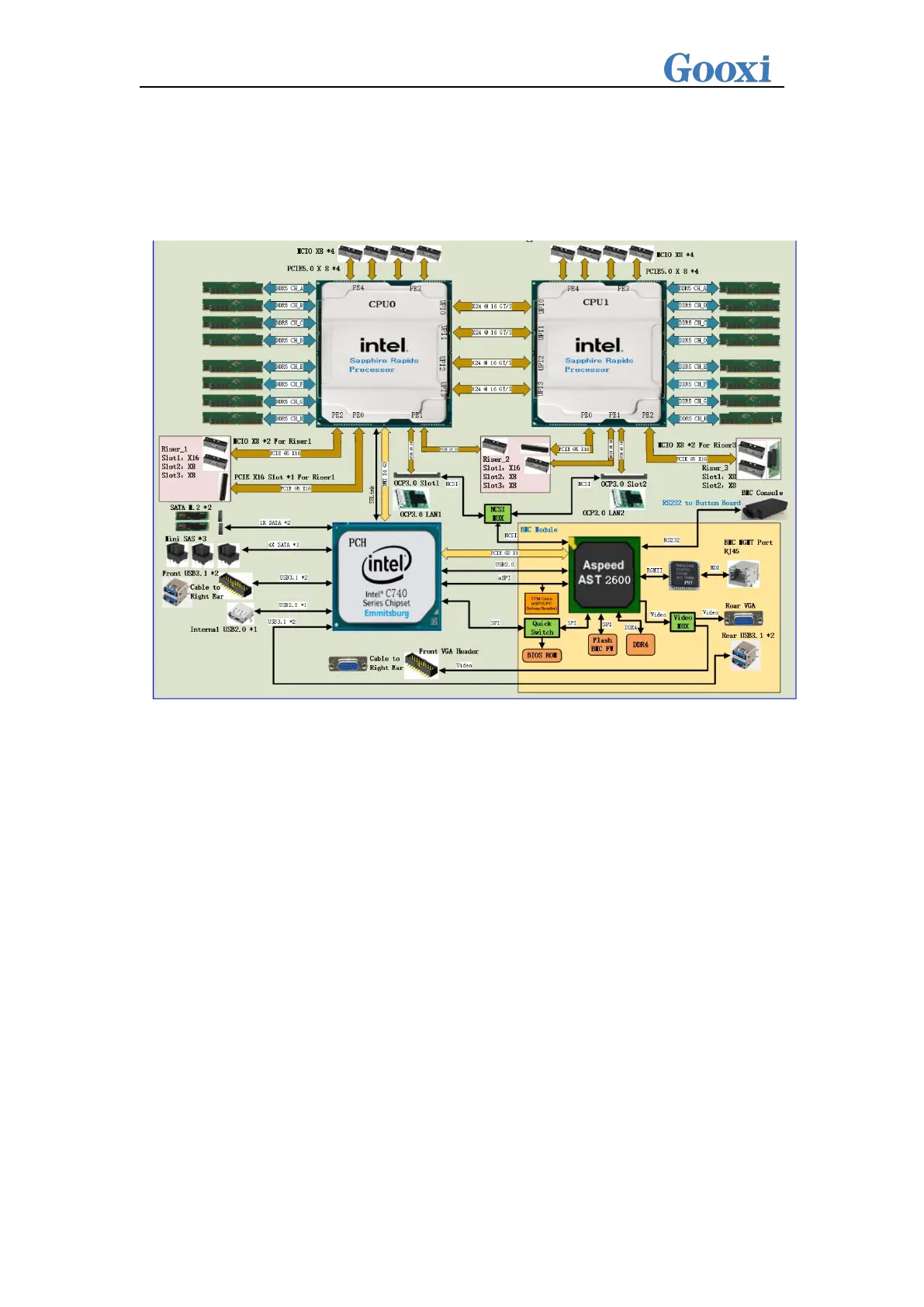

Motherboard logic block diagram 1-4
The CPU adopts the 4th generation Intel Xeon Scalable processor, LGA4677
socket.
Each CPU supports 8 channels, and each channel supports 2 DDR5
RDIMM/LRDIMM memory modules.
Onboard 2 M.2 slots (only support 22110 size), supporting SATA signals only.
The motherboard integrates 1 Gigabit Ethernet port using the I350 chip from the
PCH.
The PCH (Platform Controller Hub) uses the INTEL C740 series chipset.
The BMC (Baseboard Management Controller) chip uses the AST2600 control
chip from ASPEED for IPMI remote management. It includes a VGA output port, a
dedicated Gigabit RJ45 management port, and a connection to the PCH through
RMII/NCSI.
