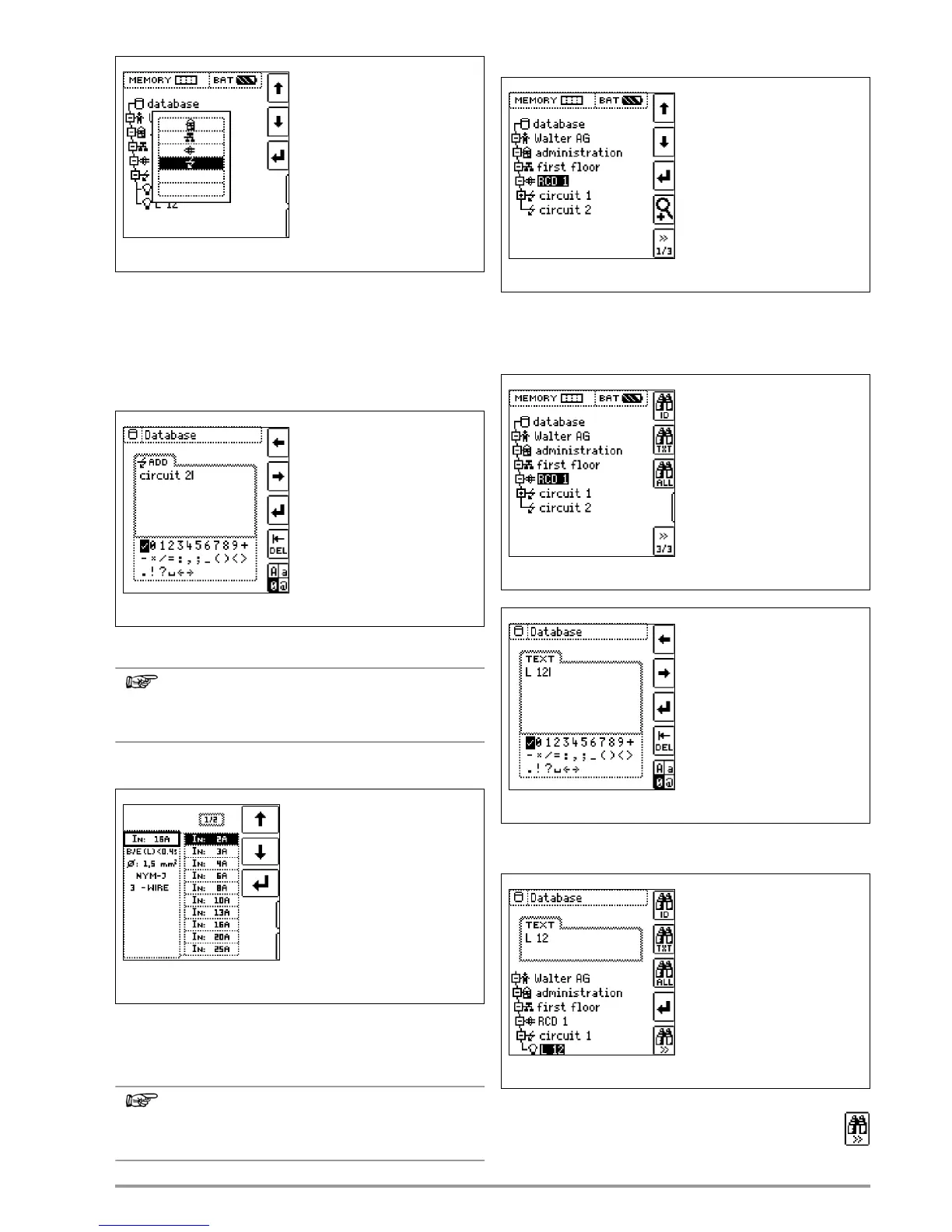

GMC-I Messtechnik GmbH 43
Select a new object from a list.
Select an object from the list with the cursor keys and
acknowledge with the Enter () key.
Depending upon the profile selected in the test instrument’s
SETUP menu (see section 4.6), the number of object types may
be limited, and the hierarchy may be laid out differently.
Enter a designation.
Enter a designation and acknowledge by entering 3.
Note
Acknowledge the standard or adjusted parameters
shown below, because the created designation will
otherwise not be accepted and saved.
Setting Parameters for Electrical Circuit
Nominal current values, for example, must be entered here for the
selected electrical circuit. Measuring parameters which have been
accepted and saved in this way are subsequently accepted by
the current measuring menu automatically when the display is
switched from the structural view to measurement.
Note
Electrical circuit parameters changed during structure
creation are also retained for individual measurements
(measurement without saving data).
16.3.2 Searching for Structural Elements
Mark the structural element from which search is to be launched.
Those objects located beneath or next to this object are sear-
ched.
Jump to page 3/3 in the database menu
After activation of text search
and entry of the text you are looking for (only 100% match is
found, no wild cards, case-sensitive)
the corresponding passage will be shown.
Further passages are found by activating the icon at the
right.
Scroll up
Scroll down
Acknowledge selection.
Select character
Select character
Accept character
Delete character
Character selection:
3 Save object designation
A, a, 0, @
Select parameter
List of parameter settings
Acknowledge parameter selection
Acknowledge parameter setting
and return to page 1/3
Select parameter setting
in the database menu
scroll up
scroll down
Acknowledge selection /
Display object number
next page
Change level
or ID number
Search for ID number
Search for text
Search for ID number or text
Select character
Select character
Accept character
Delete character
Character selection:
3 Save object designation
continue search
Search for ID number
Search for text
Search for ID number or text
