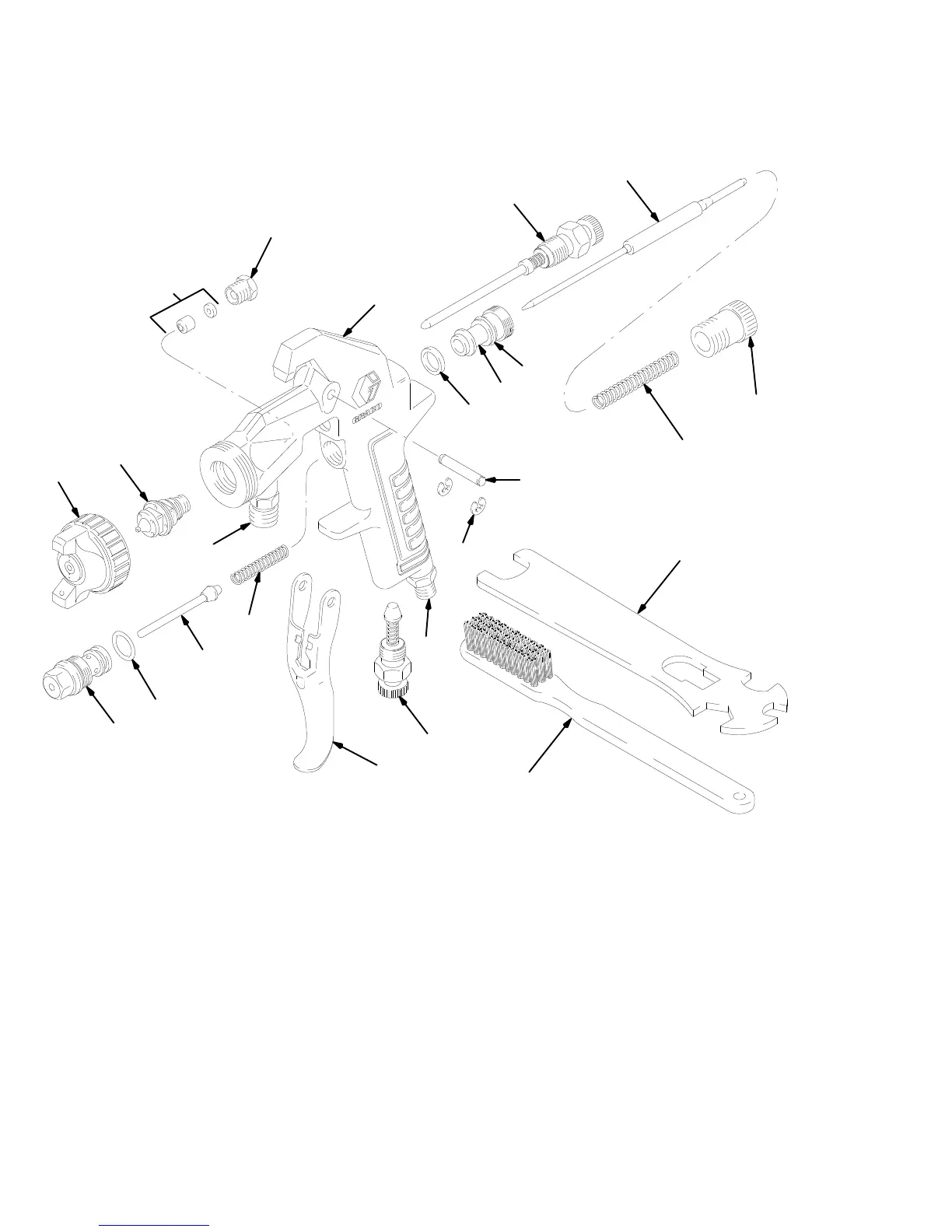

Graco 600 - Parts Identification; Exploded View and Part List

   
Parts
Model 600
Includes items 1–23
23
20
21
14
12n
13n
3
2
15n
18n
8
7
6
1
5
4
9
10n
19n
16n
17n
11
22
19n

Ref
No. Part No. Description Qty.
Ref
No. Part No. Description Qty.
1
NEEDLE, fluid; See chart on page 5 1
2
NOZZLE, fluid; See chart on page 5 1
3
AIR CAP; See chart on page 5 1
4 106–688 BODY
, gun, siphon/pressure feed only;
Includes items 22 & 23 1
106–638 BODY
, gun, gravity feed only;
Includes item 23
(fluid inlet fitting not sold separately) 1
5 106–620 VAL
VE, fan adjustment 1
6 105–553
KNOB, fluid adjustment 1
7 105–554
SPRING, compression, fluid needle 1
8 106–621
GUIDE, needle, fluid 1
9 106–619 NUT
, packing, needle 1
10n 106–658 KIT
, packing, needle 1
11 106–635 SPRING, compression, air valve 1
12n 106–636 VAL
VE, air (needle) 1
13n 106–637 KIT
, packing, air valve 1
14 106–634 TRIGGER 1
15n 106–633
PIN, pivot, trigger 1
16n 106–632
RING, retaining 1
17n 106–631 VAL
VE, air adjusting 1
18n 105–551 GASKET 1
19n 105–563 O-RING 2
20 BRUSH 1
21 110–763 WRENCH 1
22 106–689
FITTING, fluid; pressure & siphon feed
only ; includes gasket & washer (not
sold separately) 1
23 106–690
FITTING, air 1
n
Keep these spare parts on hand to reduce down time.
