Graco 600 - Dimensional Drawing; Key Dimensions; Technical Data; Specifications and Performance

307-37817

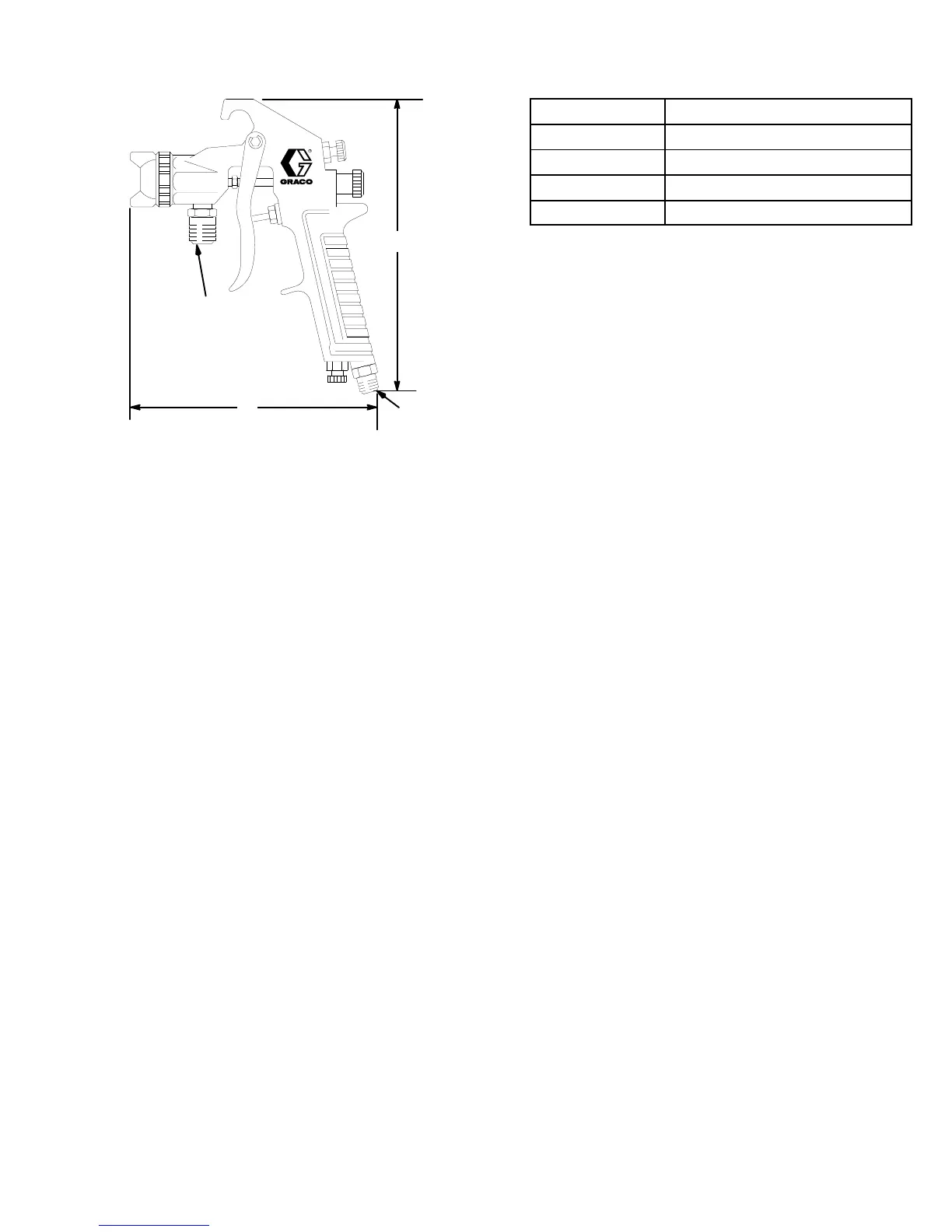

Dimensional Drawing

A
B
D
C
Reference
Dimension
A 5.7 in. (145 mm)
B 1/4 npsm fluid inlet
C 6.85 in. (174 mm)
D 1/4 npsm air inlet
Technical Data
Maximum working fluid pressure 100 psi (7 bar) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum working air pressure 100 psi (7 bar) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weight 17 oz. (475 g) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wetted parts Brass, polyethylene and polyester elastomer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maxiumum working temperature 104_F (40_C). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Noise data*
Sound pressure 77.6 Db(A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sound power 89.4 Db(A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
* All readings were taken with the gun controls fully open with an air inlet pressure of 65 psi (4.5 bar). Sound pres -
sure was tested to CAGI-PNUEROP – 1969. Sound power was tested to ISO 3744 – 1981.
