6 307-378
Installation

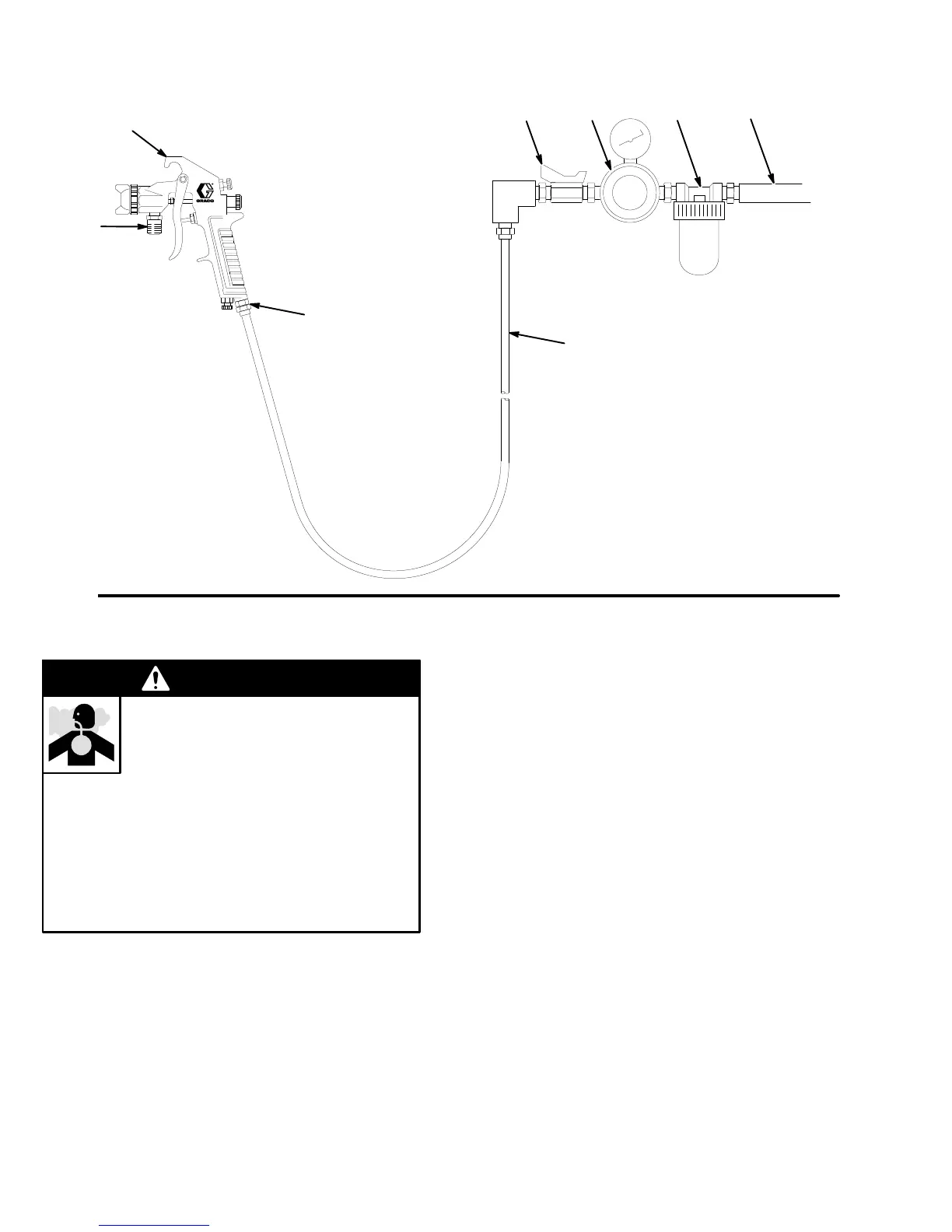

KEY
A Model
600 Spray Gun
B
Fluid Inlet; 1/4 npsm
C
Air Inlet; 1/4 npsm
D
Air Hose
E
Air Shut-of
f V
alve
F
Air Regulator
G
Air Filter
H
Air Supply Line
04835
Fig.
1
A
B
C
D
EF G H
Pressure Feed Model Shown
Ventilate the Spray Booth
WARNING
TOXIC
FLUID HAZARD
T
o prevent hazardous concentrations of
toxic and/or flammable vapors, spray
only in a properly ventilated spray booth.
Never operate the spray gun unless ventilation
fans are operating.
Check and follow all of the national, state and local
codes regarding air exhaust velocity requirements.
Check and follow all local safety and fire codes.
Installation Procedure
NOTE:
See
Accessories
section for information on
installation accessories.
1.
Install an air filter (G) in the gun air supply line to
ensure a clean dry air supply to the gun. See
Fig. 1. Dirt and moisture in the air line can af
fect
the appearance of your finished workpiece.
2.
Install an air regulator (F) downstream from the air
filter to control atomizing air pressure to the gun.
3.
Install an air shut-of
f valve (E).
4.
Connect the atomizing air hose (D) to the 1/4
npsm air inlet (C) of the gun.
5.
Connect the fluid supply hose, siphon cup or grav
-
ity cup (see Fig. 2 ) to the 1/4 npsm fluid inlet (B)
of the gun.
NOTE:
If you use a fluid supply line, install a fluid regu
-
lator in the gun fluid supply line to control fluid pressure
to the gun.
