Accessories
200 Liter (55 Gallon) Platen
Platen with EPDM Seals, 255663
Platen with Neoprene Seals, 255664

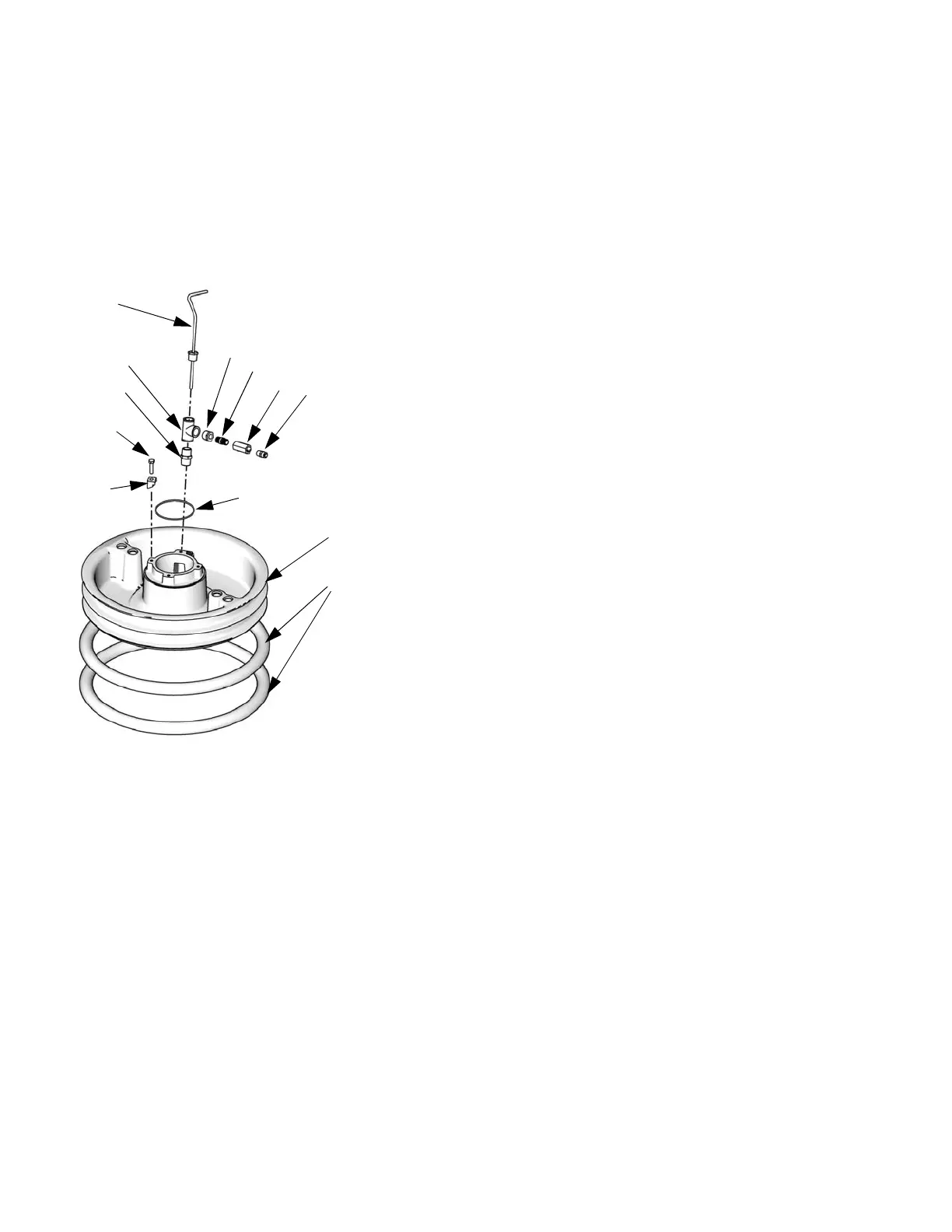

200 Liter (55 Gallon) Platen Parts
*Parts included in 255392 Kit (purchase separately).
Drum Position Clamp Set for
D200 Ram, 206537
(Includes two clamps) Attach to ram cylinders to center
drum in place and prevent drum from moving.
55 Gallon Platen Cover Kit,
255691
See 406681 for more information.
Pump Mounting Kit 224829
See pages 11 for mounting instructions. Required for
mounting President and Monark Check-Mate 450
pumps.
Ref.
No. Part No. Description Qty.
103 255232 HANDLE, bleed assy 1
108 255652 SEAL, wiper, drum, 55 gal., neo-
prene; for 255664 only.
2
255653 SEAL, wiper, drum, 55 gal., EPDM;
for 255663 only.
2
114 PLATE, ram 55 gal. 1
116 114243 VALVE, check 1
117 114153 FITTING, TUBE, quick disconnect 1
118 100505 BUSHING, pipe 1
119 119992 NIPPLE, 3/4 x 3/4 npt 1
121 166466 TEE, pipe, female 1
124 156849 NIPPLE 1
126* 102637 SCREW, cap 4
127* 276025 CLAMP 4
128* 109495 O-RING 1
114
117
116
124
118
103
108
121
TI10655B
119
*126
*127
*128
Ref.
No. Part No. Description Qty.
CA 184140 PLATE, mounting 1
CB 100101 SCREW, hex hd, cap;
3/8-16 x 1 in. (25.4 mm)
4
CC 100133 LOCKWASHER, spring, 3/8 in. 8
CD 100004 SCREW, hex hd, cap;
3/8-16 x 1-1/4 in. (31 mm)
4
CF 161452 SEAL, ram plate, standard 1
CG 162789 PLATE, seal, standard 2
CH 162788 GASKET; cork 1
CJ 100016 WASHER, lock 2
CK 102025 NUT, hex, regular 2
CL 100270 SCREW, cap, hex 2
CM 15B588 SCREW, cap, socket 2
