Component Identification
3A0233B 7
Integrated Air Controls
The integrated air controls include:
• Main air slider valve (AA): turns air on and off to
the system. When closed, the valve relieves pres-
sure downstream.
• Ram air regulator (AB): controls ram up and down
pressure and blowoff pressure.
• Ram director valve (AC): controls ram direction.
• Exhaust port with muffler (AD)
• Air motor regulator (AE): controls air pressure to
motor.
• Air motor slider valve (AF): turns air on and off to
the air motor. When closed, the valve relieves air
trapped between it and the air motor. Push the valve
in to shutoff.
• Blowoff button (AG): turns air on and off to push
the platen out of an empty drum.
Air Line Accessories
See FIG. 1.
• Air line drain valve (H)
• Air line filter (J): removes harmful dirt and moisture
from compressed air supply.
• Second bleed-type air valve (K): isolates air line
accessories and ram for servicing. Locate upstream
from all other air line accessories.
• Air relief valve (attached to ram air regulator, not
visible): automatically relieves excessive pressure.

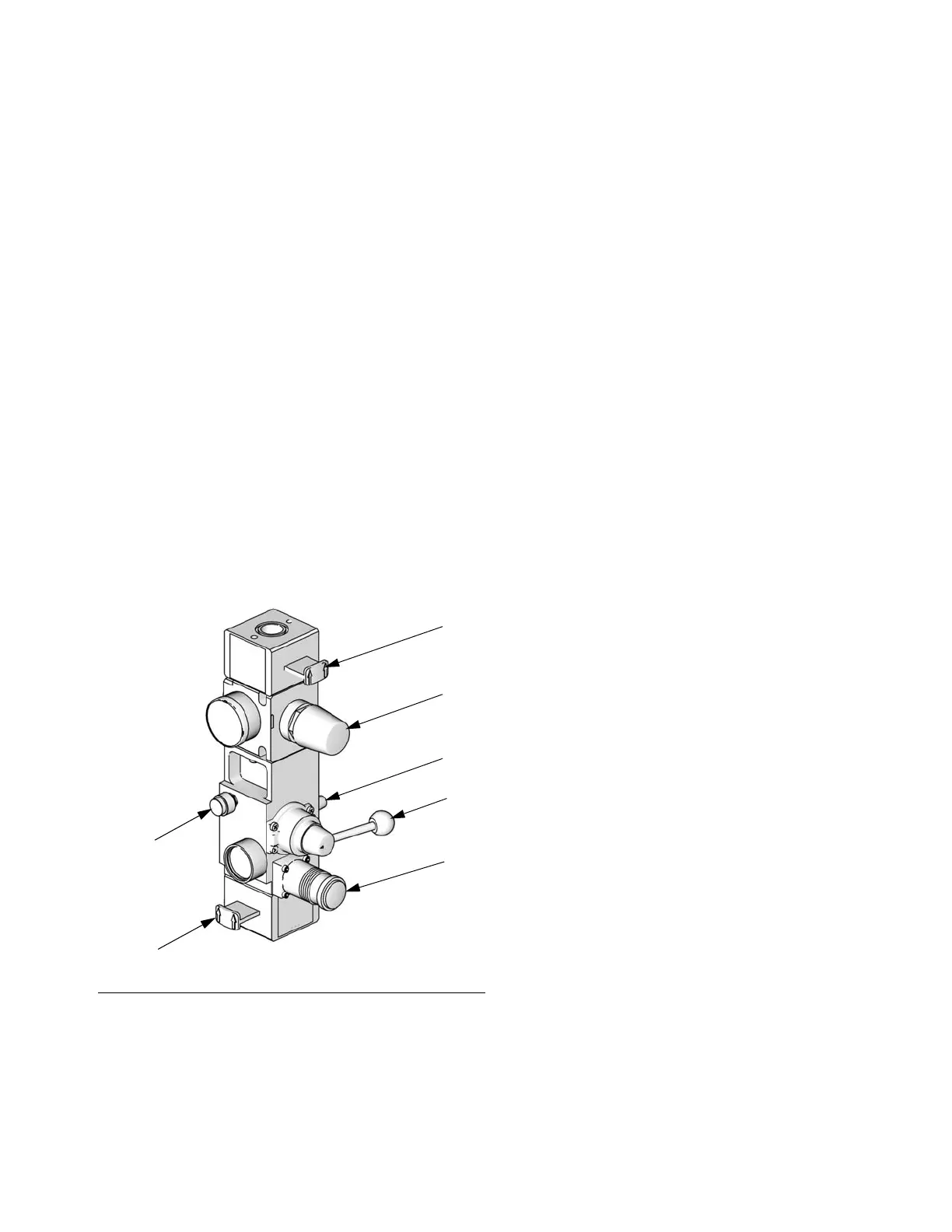

F
IG. 2. Integrated Air Controls
BA
BB
BC
BG
BD
ti10438a
BE
BF
{
not included
with
24C824
