Graco GM 5000 Instructions-Parts List

40
308-327

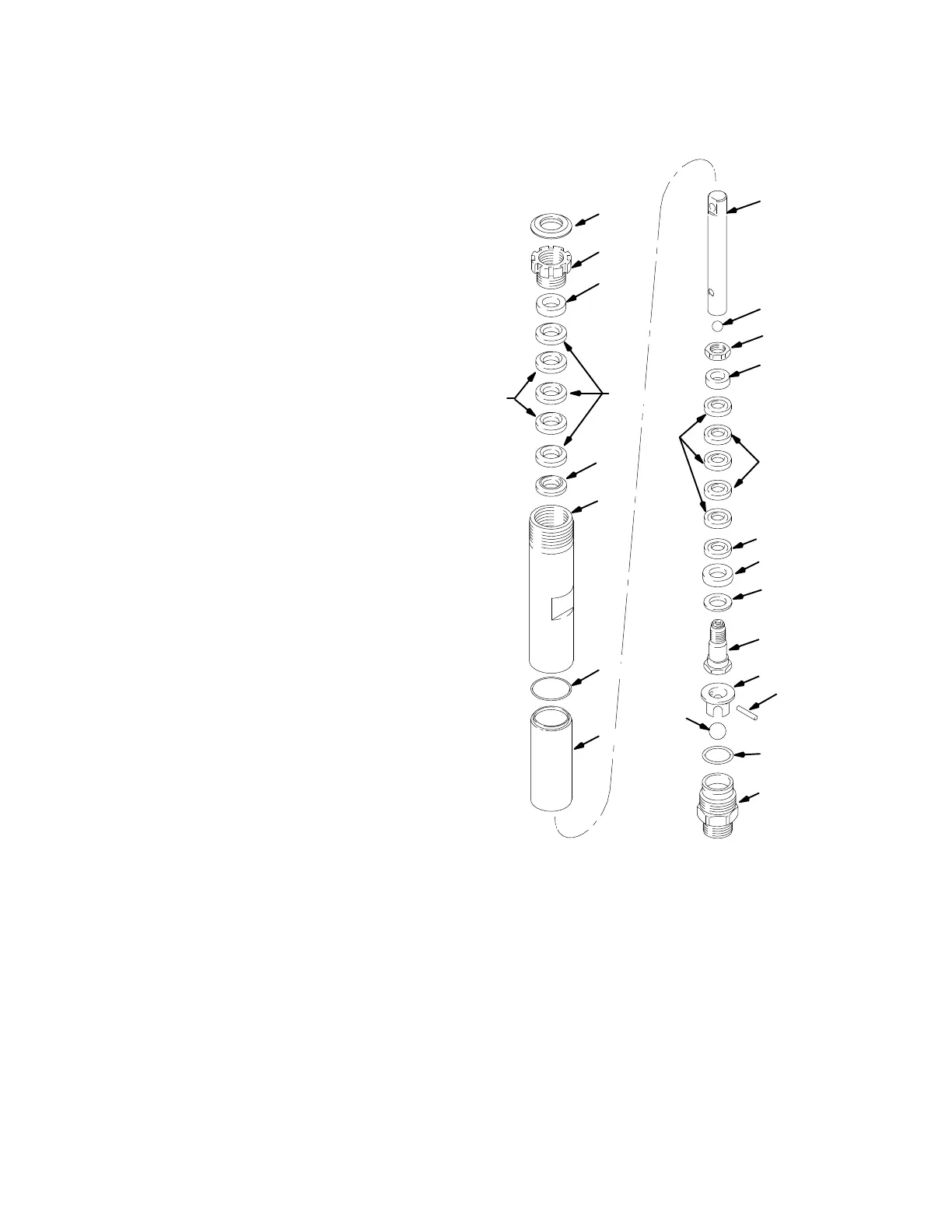

Parts – Pump
Model 220–872, Series A
Carbon Steel Displacement Pump
Includes items 2 to 25
Ref
No. Part No. Description Qty
402* 107–098 P
ACKING, o–ring,  1
403* 108–690
SEAL, u–cup, polyurethane 1
404* 108–775 BALL; sst 1
405 183–171 PLUG 1
406* 183–174 V–P
ACKING, leather 2
407* 183–175 V–P
ACKING, leather 2
408* 183–176
GLAND, male 1
409* 183–177
GLAND, female 1
410* 183–178
GLAND, male 1
411
183–179 NUT , hex, retaining 1
412* 183–182 V–P
ACKING, polyurethane 3
413* 183–183 V–P
ACKING, polyurethane 3
414* 186–653 WASHER, backup 1
415* 183–185
GLAND, female 1
416
183–186 NUT , packing 1
417* 183–172 O–RING,
 1
418
183–361 SLEEVE, cylinder 1
419
183–181 CYLINDER 1
420
183–180 GUIDE, ball 1
421* 183–173
PIN, ball stop 1
422
220–631 VAL VE, piston 1
423
220–629 VAL VE, intake 1
424
220–630 ROD, piston 1
425* 101–947
BALL 1
DISPLACEMENT PUMP REP AIR KIT 220–877
* These parts are included in the repair kit. Repair
instructions are on page 31 of this manual and are also
included with the kit. Purchase separately .
SLEEVE REMOV AL TOOL 220–991
Required for removing the displacement pump sleeve.
Purchase separately .
*407
414*
403*
405
416
409*
413*
408*
419
417*
418
424
425*
411
410*
406*
415*
422
420
421*
402*
423
*404
*412
PTFE
PTFE
