Installation
312877ZAD 13

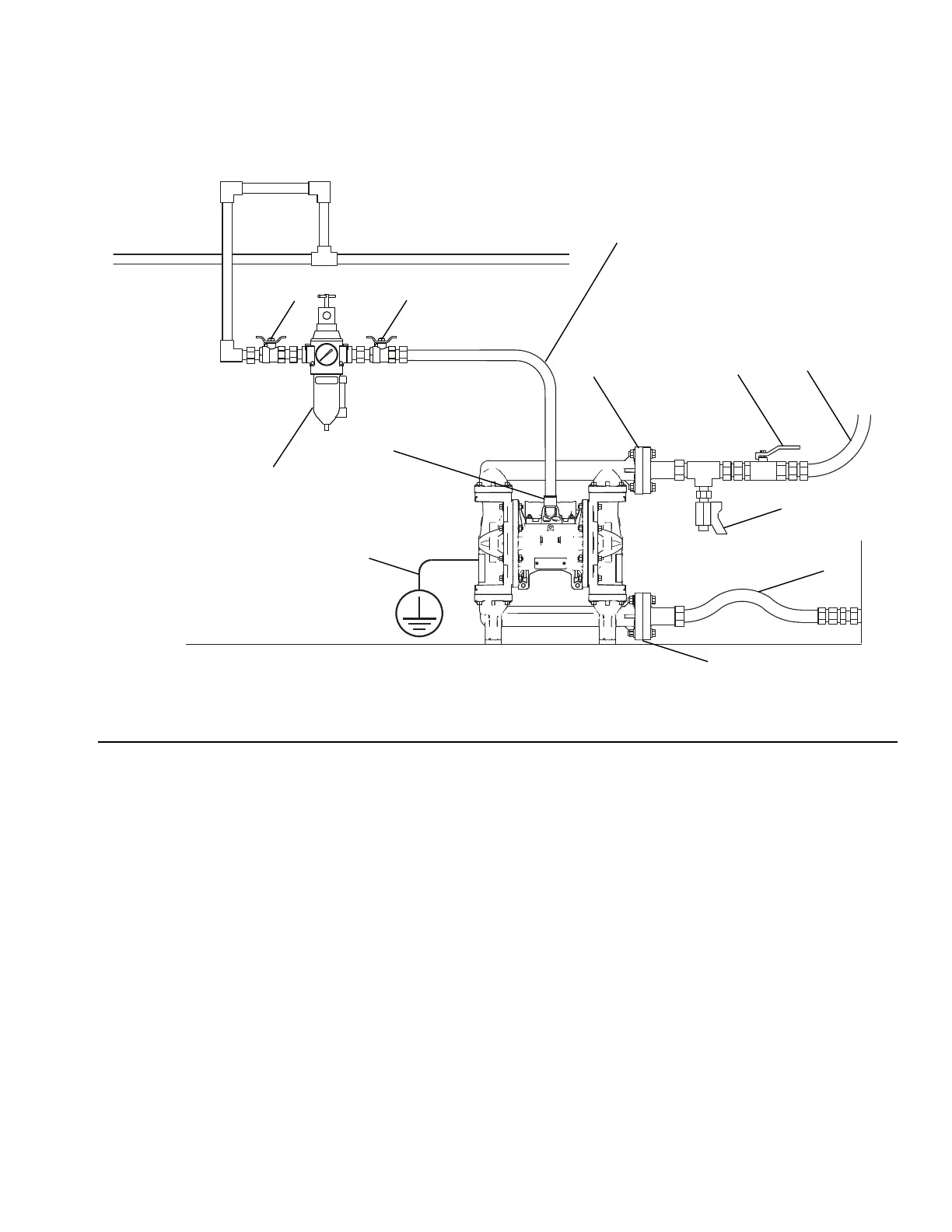

Key for FIG. 4:
A Air supply line
B Bleed-type master air valve (required for pump)
C Air filter/regulator assembly
D Air inlet
E Master air valve (for accessories)
G Grounded, flexible fluid supply line
J Fluid drain valve (required)
K Fluid shutoff valve
L Grounded, flexible fluid outlet line
M Fluid inlet (Aluminum, not pictured, four ports;
Plastic, FIG. 4, center or end flanges available;
Hastelloy and stainless steel, not pictured, one port)
N Fluid outlet (Aluminum, not pictured, four ports;
Plastic, FIG. 4, center or end flanges available;
Hastelloy and stainless steel, not pictured, one port)
R Ground wire (required for aluminum, conductive
polypropylene, hastelloy, and stainless steel pumps;
see page 9 for installation instructions)
FIG. 4. Typical floor-mount installation (polypropylene, 1050P, pump shown)
E
C
B
A
K
L
J
R
D
G
M
N
ti14164b
