Installation - Internal Models (HM25c)
334784G 11
Installation - Internal Models (HM25c)
Connect Pattern Control Board

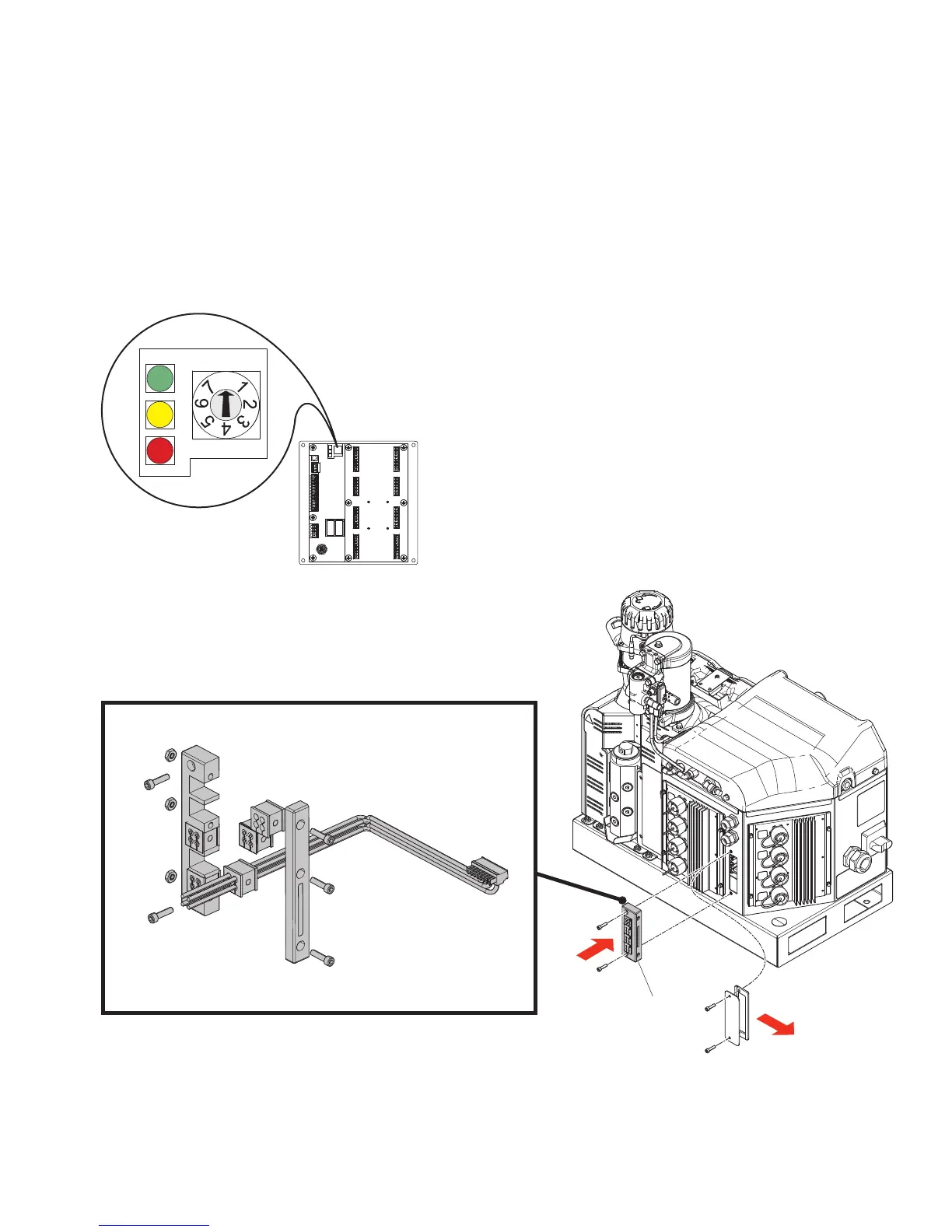

1. Set pattern control system type selector switch to 0.
NOTE: The system must be powered off for a
change in system type to have an effect.
2. Remove cord grip assembly (T) from back of Invisi-
Pac system and remove inserts. Inserts with grip
tightly on most M8 and M12 cables and expand and
compress to accept cables larger than the apparent
hole size.
3. Install valve signal wires, trigger signal wires, PLC
wires (optional). See Wire Pattern Control Board,
page 18.
4. Route cables through the opening in the back of the
InvisiPac enclosure as shown.
5. Apply cord grip inserts over cables and replace into
frame. Replace frame onto back of InvisiPac enclo-
sure.
6. Remove excess slack from the cables but do not
pull tight. Tighten cord grip frame on inserts to
secure.
To Next Page
