Graco InvisiPac HM25c User Manual

Installation - Internal Models (HM25 and HM50)
14 334784G

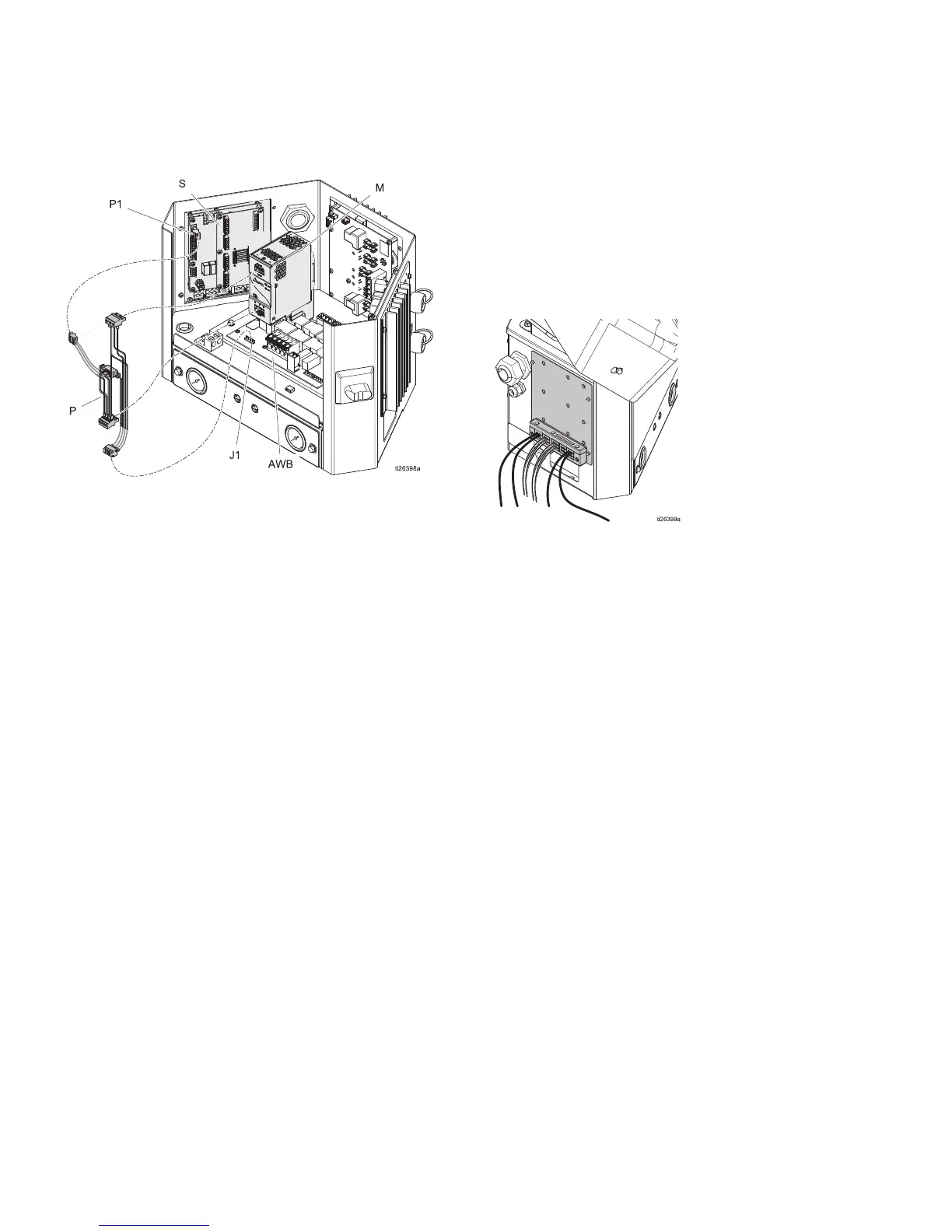

6. Connect power harness (P) to AWB terminal pins J1
and the input and output terminals of power supply.
Install Control Board into
InvisiPac System
1. Mount board into open space on left-hand side of
electrical enclosure. Use serrated-flange screws.
2. Connect power harness to power control board ter-
minal P1, and connect communication cable to pat-
tern control board terminal P4.
3. Replace system electrical enclosure door.
