PC Screens
Home

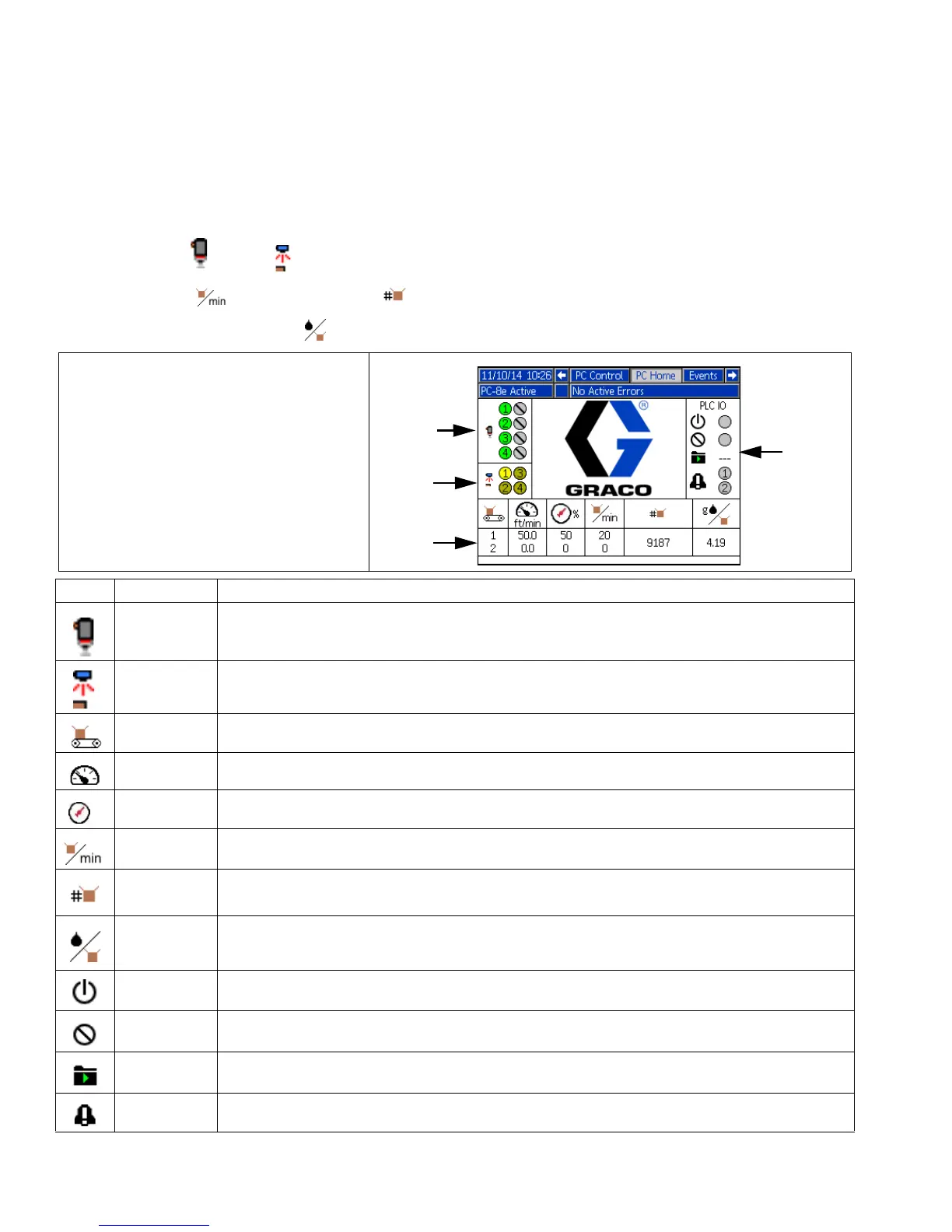

Read-only view of pattern controller inputs and outputs:
1. Status of guns , triggers , and PLC signals.
2. Production rate , and units completed .
3. Material dispensed per product .
A - Gun states
B - Trigger states
C - Line information
D - PLC signals
Icon Name Description
Gun Gun status: active (green), enabled (gray), disabled (crossed out)
Trigger Trigger status: active (bright yellow), inactive (dark yellow)
Line number Line number for other display values in row
Line speed Current line speed (or fixed line speed setting)
Run up
output
Percentage of run up pressure range being output (PC-8e only)
Production
rate
Number of product per minute
Product count Total products completed. To configure and reset, see Trigger Setup (Screen 3), page 31.
Glue rate Amount of glue per product (integrated InvisiPac systems only). NOTE: For best results,
enter the appropriate specific gravity value for the adhesive material in use (see the Invisi-
Pac system manual).
PLC enable State of enable signal from PLC
PLC
disable
State of disable signal from PLC
Active
program
Displays the active program chosen by the PLC (displays dashes if the PLC is not selecting
a program)
PLC alarm Alarm status to the PLC (on line 1 or 2)
A
B
C
D
%
