Wiring Diagrams

58 334784G

Wiring Diagrams

NOTE: Refer to manual 3A4938 for HM25c internal pattern controller wiring.

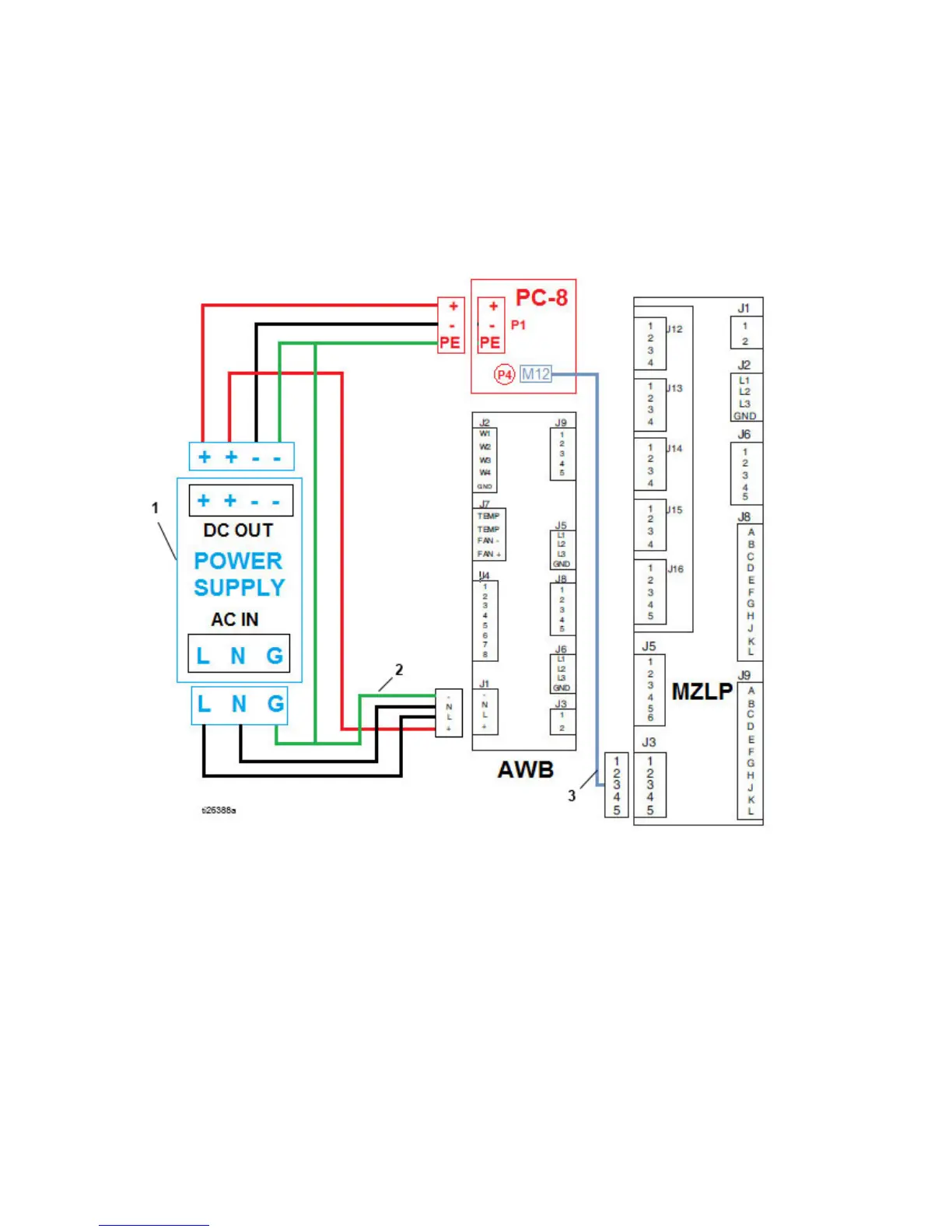

Internal Pattern Controller (HM25 and HM50 Systems with AWB)

Ref. Part Description Qty.

1 128180 POWER SUPPLY, 120 W 1

2 128183 HARNESS, power, PC-8,

AWB

3 128182 CABLE communication 1

Default Chapter2
