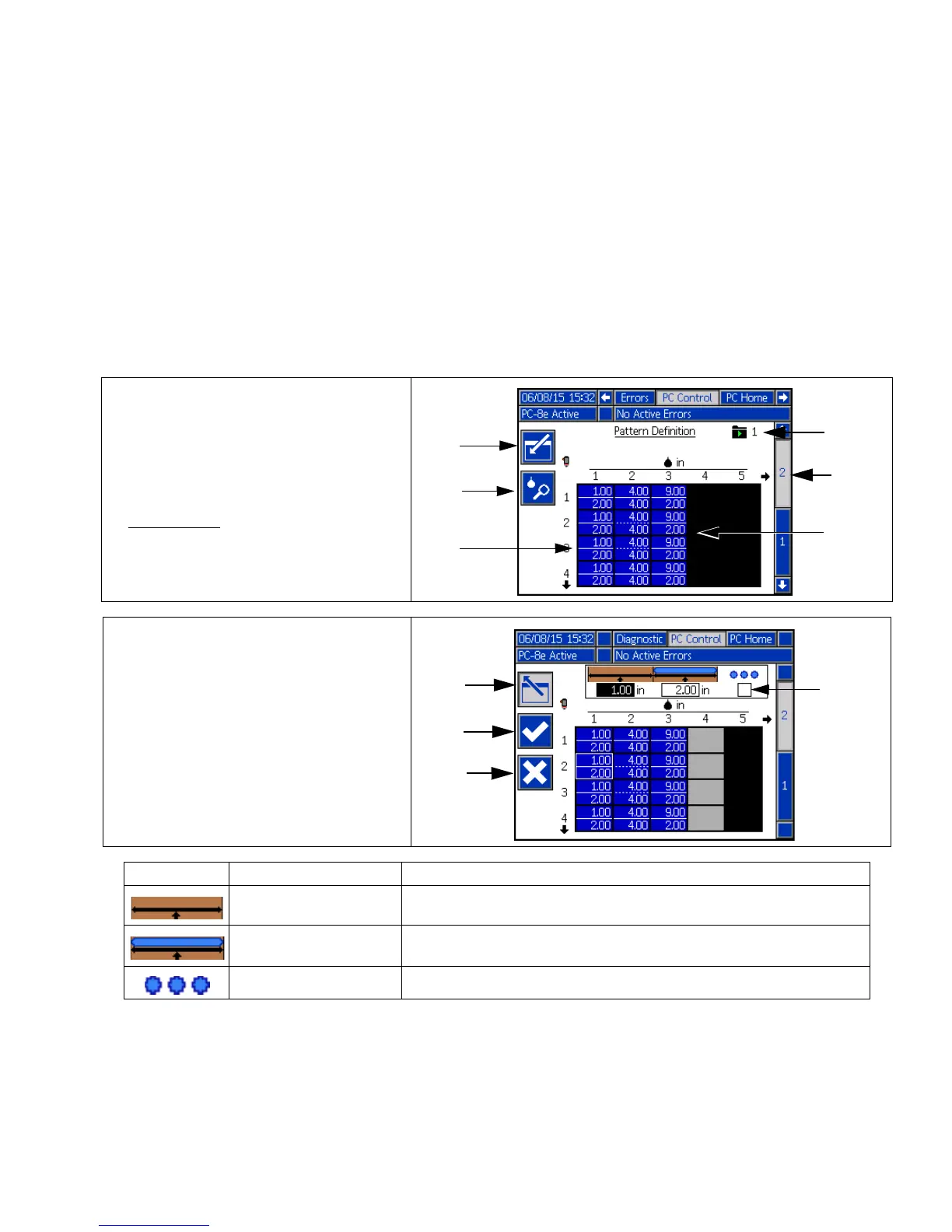

Pattern Definition (Screen 2)
1. Enter start point and length of beads.
2. Enable or disable stitching for each bead.
3. Preview this pattern.
NOTE: To clone the pattern from gun A to gun B, navigate to any bead on gun B and press/hold the number key for
gun A.
NOTE: Enter the screen and scroll down to see valves 5-8. Add beads and continue to scroll right to access beads
6-24.
* Current program indicator signifies that changes to the setting on this page will only affect the current program.
A - Enter screen
B - Pattern preview
C - Dots = stitched
Solid = solid bead
D - Current program*
E - Start of bead
Bead length
P - Screen number (Screen 2)
F - Exit screen
G - Confirm changes
H - Cancel changes
J - Stitch bead
Icon Name Description
Bead offset Distance from the edge of the product to the start of the bead
Bead length Length of the bead
Stitch bead Enable or disable stitching of this bead
