Parts

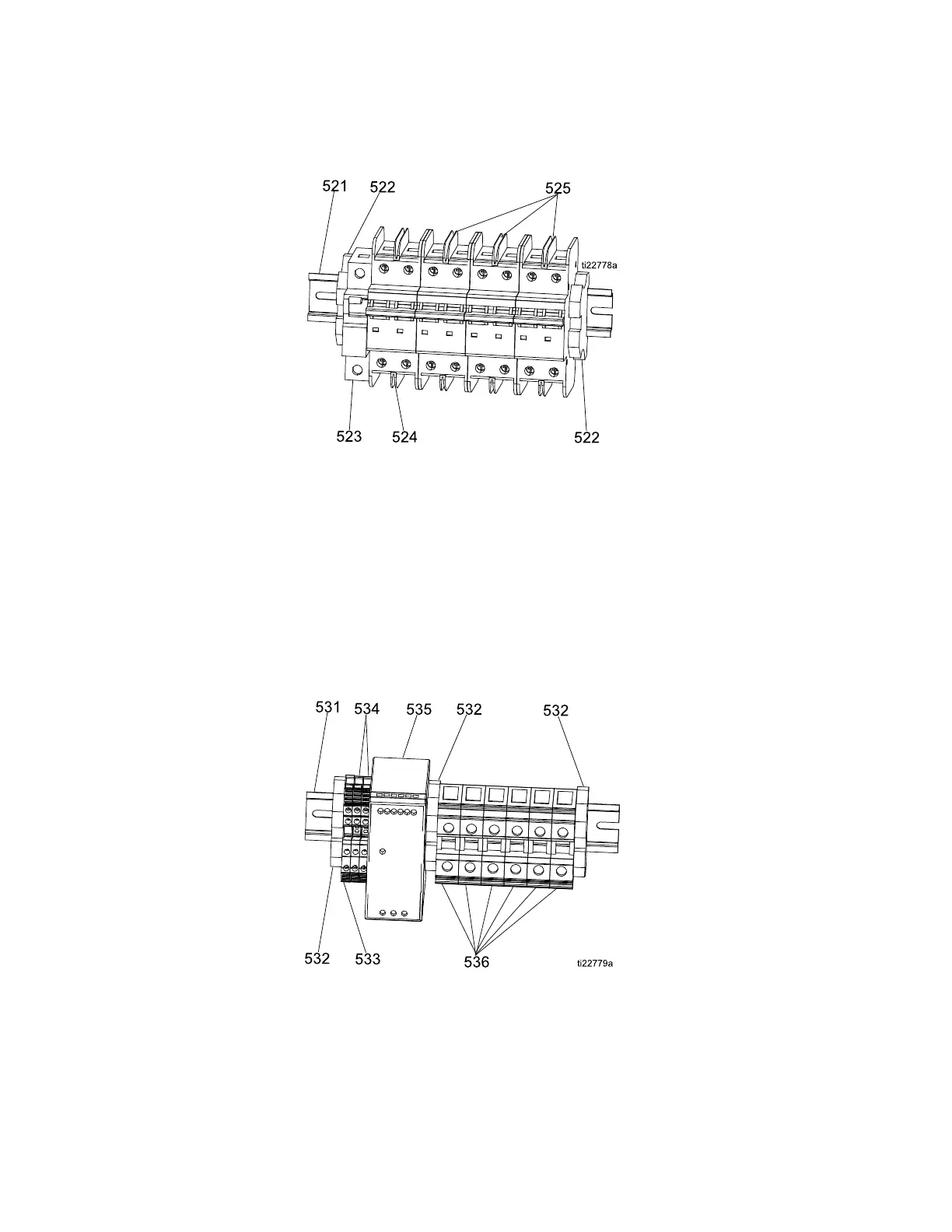

System System
System
Circuit Circuit
Circuit
Breaker Breaker
Breaker
Module Module
Module
16U526 16U526
16U526
RefPartDescriptionQty
521514014
RAIL,DIN;35mmx
7.5mmx8.625in.
1
522120838
TERMINAL,endstop
2
523
17A319
CIRCUIT,breaker,1
pole,50A,CCurve
1
RefPartDescriptionQty
524
17A314
CIRCUIT,breaker,2P,
20A,UL489
1
525
17A317
CIRCUIT,breaker,2P,
40A,UL489
3
Power Power
Power
Supply Supply
Supply
and and
and
Terminal Terminal
Terminal
Block Block
Block
Module Module
Module
16U522 16U522
16U522
RefPartDescriptionQty
531514014
RAIL,DIN;35mmx7.5
mmx8.625in.
1
532120838
TERMINAL,endstop
3
533
24R722
BLOCK,terminalPE,
quad,ABB
1
RefPartDescriptionQty
534
24R723
BLOCK,terminal,quad
M4,ABB
2
535126453
POWERSUPPLY,24V
1
536
24R724
BLOCK,terminal,UT35
6
100 333024S
