1.PerformShutdown,page46.

2.PerformPressureReliefProcedure,page45.

3.Disconnectthe󰘱owmetercable.

4.Disconnecttheheatedhosefromthe󰘱owmeter.

Removethe󰘱owmeter.

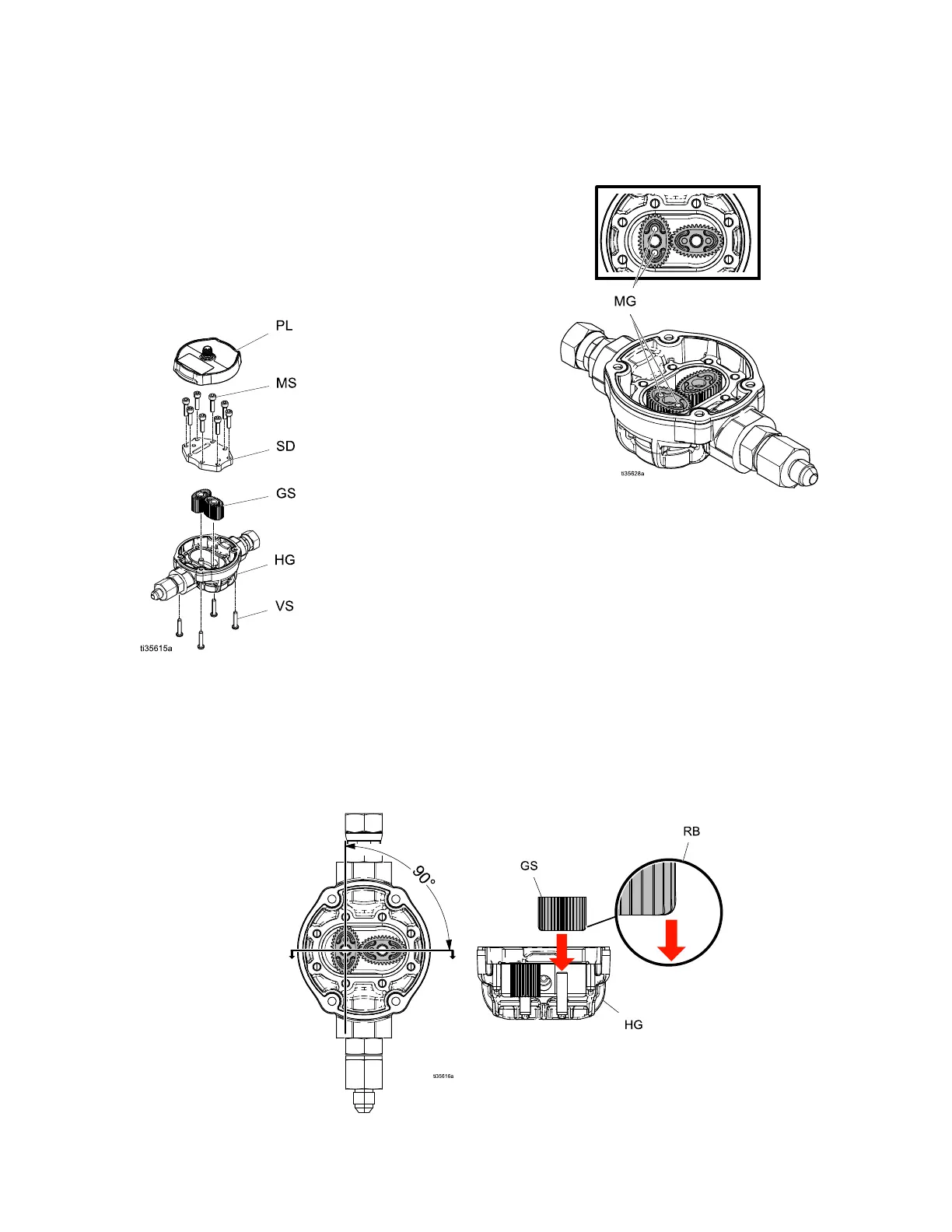

5.Removefourscrews(VS)andremovethetop

cover(PL).

6.Removeeightscrews(MS)andremovethe

metalcap(SD).

7.Removegears(GS)fromthehousing(HG).

8.Cleanthegearsandthe󰘱uidsectionofthe

housingwithcompatiblesolvent.

9.Reinstallthegears.

a.Placethegearwiththemagnets(MG)onthe

leftpinofthehousing.

NOTE: NOTE:

NOTE:

Thegearwiththemagnets(MG)

mustbeinstalledontheleftsideorthemeter

willnotfunction.Installthegearsasshown.

b.Positionthegearsperpendicular(90°)to

eachotherandinstalltheroundedbottom

(RB)ofthegearintothehousing.

NOTE: NOTE:

NOTE:

Turnthegearstomakesurethat

stayengagedandrotatetogetheronce

installed.Reinstallthegearsiftheydonot

stayengagedorrotatetogether.

10.Reinstallthe󰘱owmeter.Reconnecttheheated

hoseand󰘱owmetercable.

333024S 51

Graco Reactor 2 E-XP2 Repair And Parts
