Graco Reactor 2 E-XP2 - Page 86

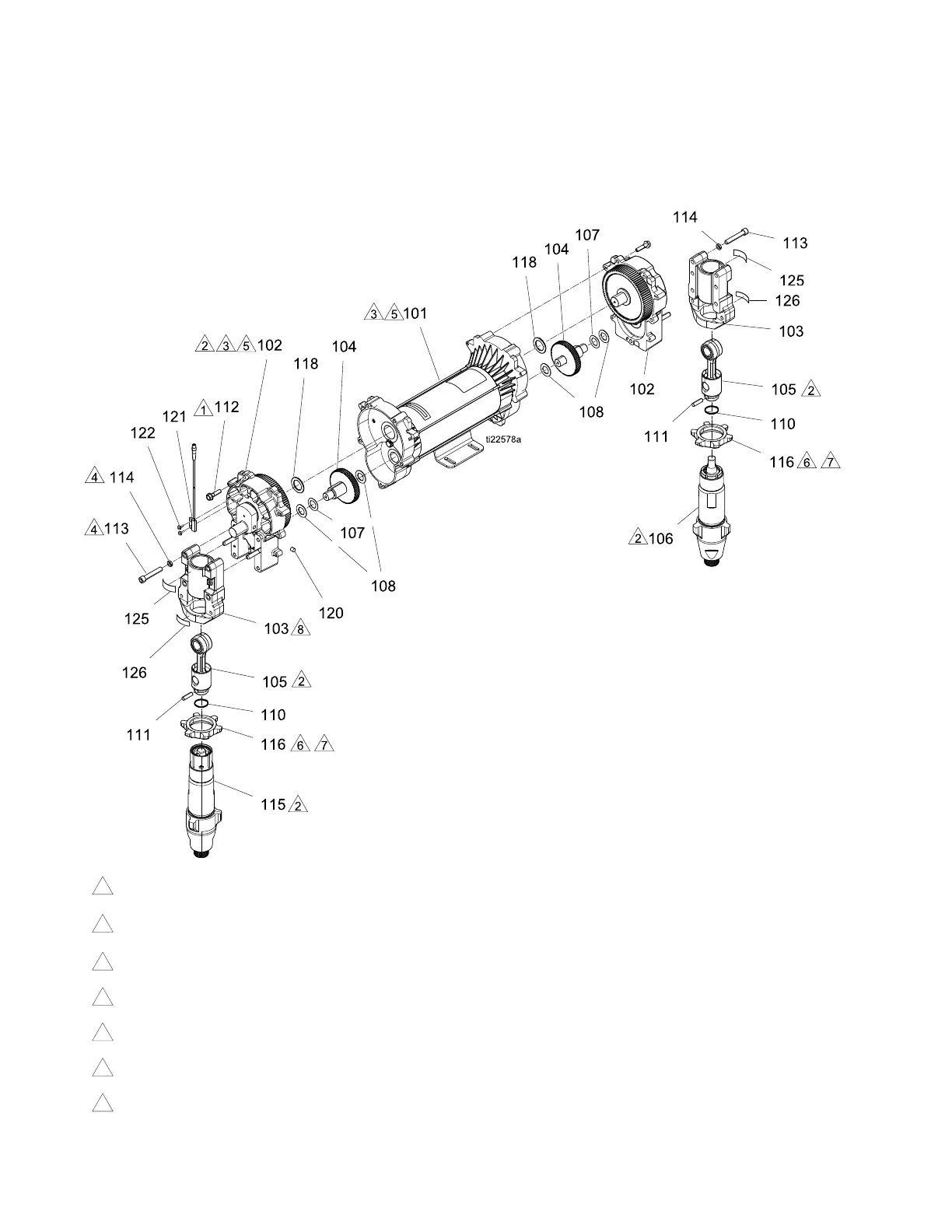

Parts
Proportioner Proportioner
Proportioner
Module Module
Module
24V150, 24V150,
24V150,
Module Module
Module
for for
for
E E
E
- -
-
30 30
30
24V151, 24V151,
24V151,
Module Module
Module
for for
for
E E
E
- -
-
XP2 XP2
XP2
1
Torqueto190–210in-lb(21–24N•m).
2
LubricatethreadswithISOoilorgrease.Assemblepumpcylinders󰘱ushtoonefullthreadunder-󰘱ushof
housingsurface.
3
Applygreasetoallgearteethproportionally,motorpinionanddrivehousing.
4
Torqueto20–30ft-lb(27–40.6N•m).
5
Crankshaftmustbeinlinewithcrankshaftatotherendofmotor.
6
Torqueto70–80ft-lb(95–108N•m).
7
Flatsidefacesup.
86 333024S
