Graco Reactor A-XP1 User Manual

Repair
32 3A1570V

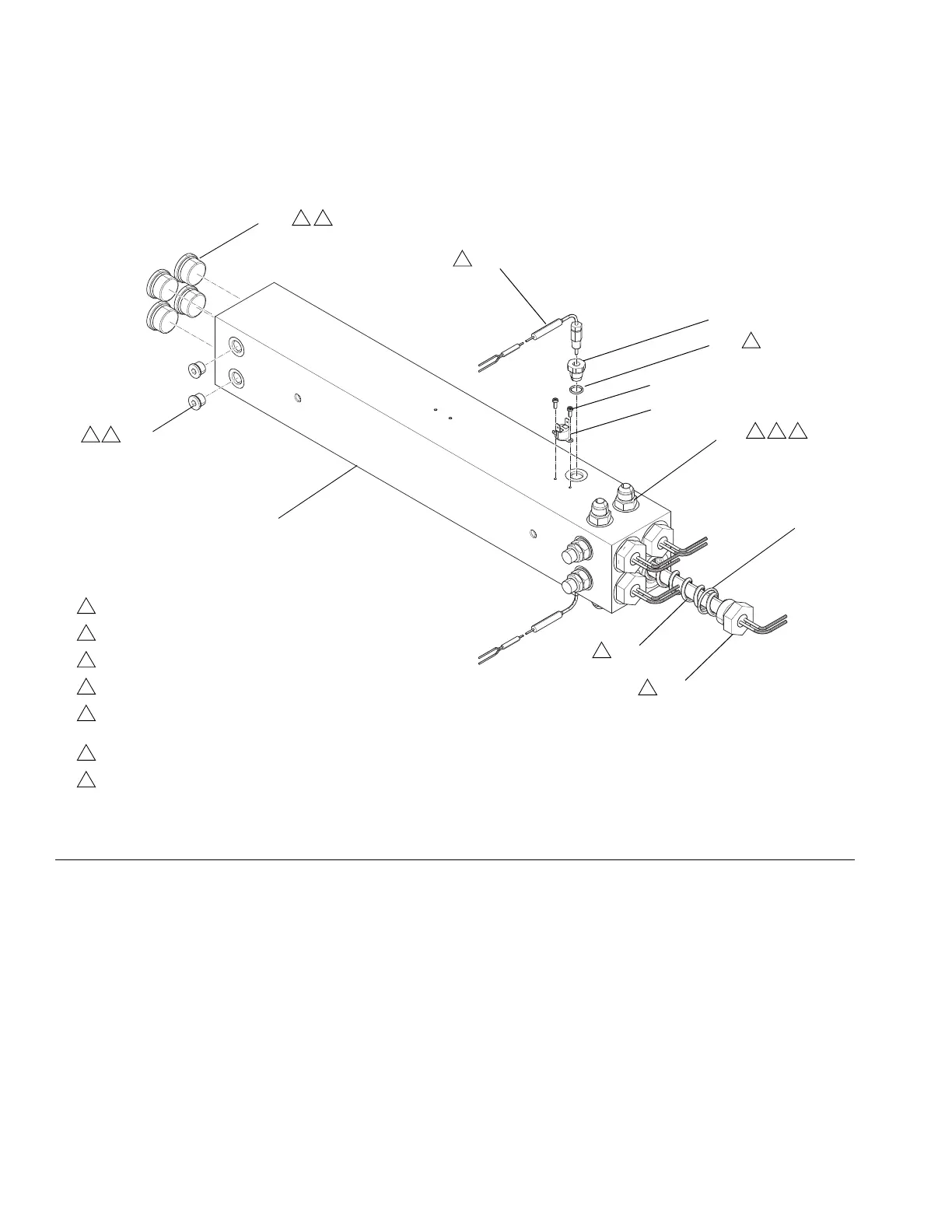

F IG . 7: Dual Zone Heater (6 or 10 kW)
1
351
361
354
357
356
362
359
352
358
360
355
353
Torque to 120 ft-lbs (163 N•m).
Torque to 23 ft-lbs (31 N•m).
Torque to 40 ft-lbs (54 N•m).
Apply 110009 thermal heatsink compound.
Apply sealant and PTFE tape to all non swiveling and
threads without o-rings.
Apply lubricant to o-rings.
Orient rupture disc housing (369) with exhaust hole
pointing towards the bottom of the heater.
1
2
3
4
5
6
7
6
3 6 7
6
5
1 6
2 5
ti17998a
