Graco Reactor A-XP1 User Manual

Parts
3A1570V 53

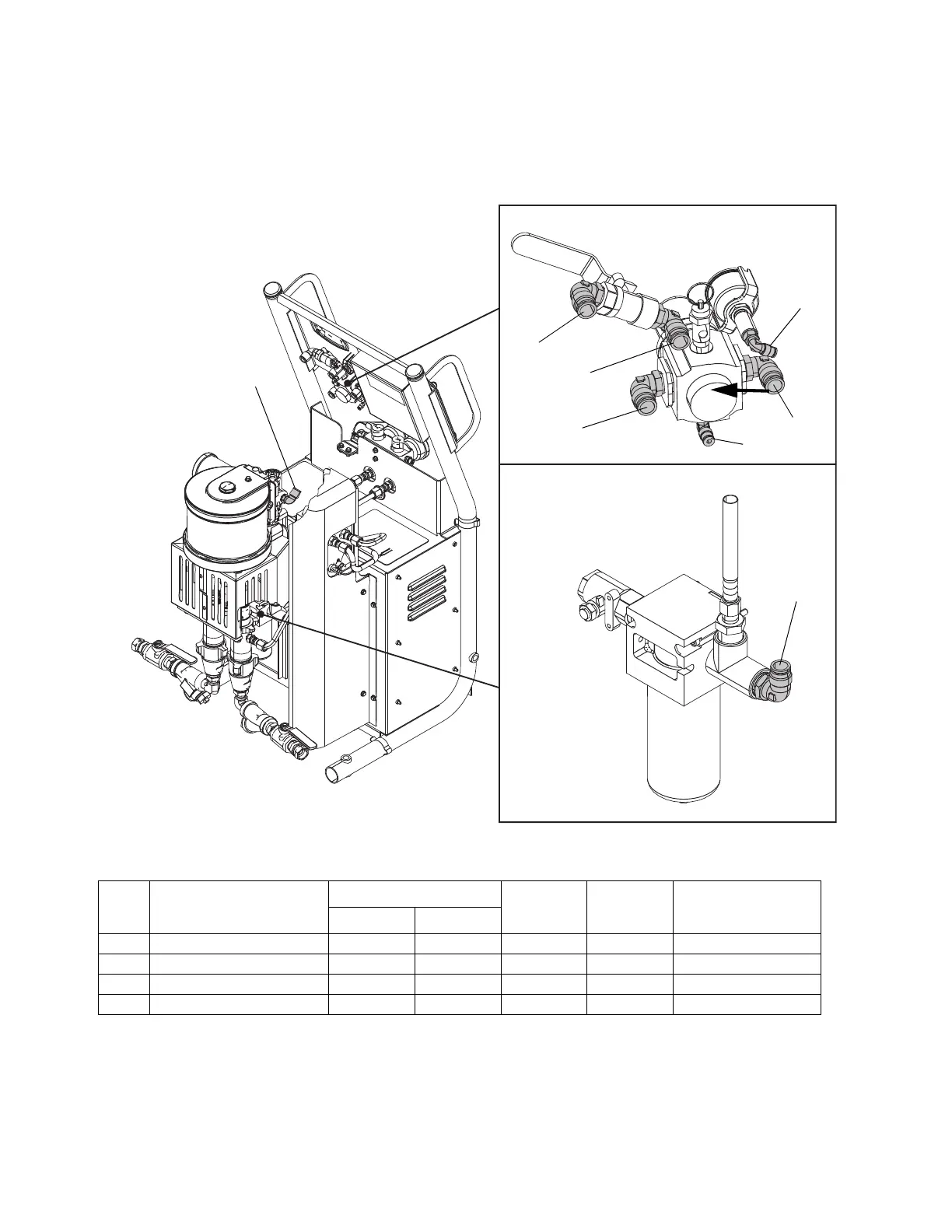

Air Tubing Connections
Ref.
Length
ft (m)
Connection
Material Color Outside DiameterFrom To
64 0.75 ft (0.23 m) 503 503 UHMWPE Black 5/32 in. (4 mm)
65 2.66 ft (0.8 m) 501 501 Nylon Black 1/2 in. (12.7 mm)
65 1.66 ft (0.5 m) 502 502 Nylon Black 1/2 in. (12.7 mm)
65 0.75 ft (0.23 m) 500 500 Nylon Black 1/2 in. (12.7 mm)
WLE
500
500
501
501
502
502
503
503
