Parts
50 3A1570V

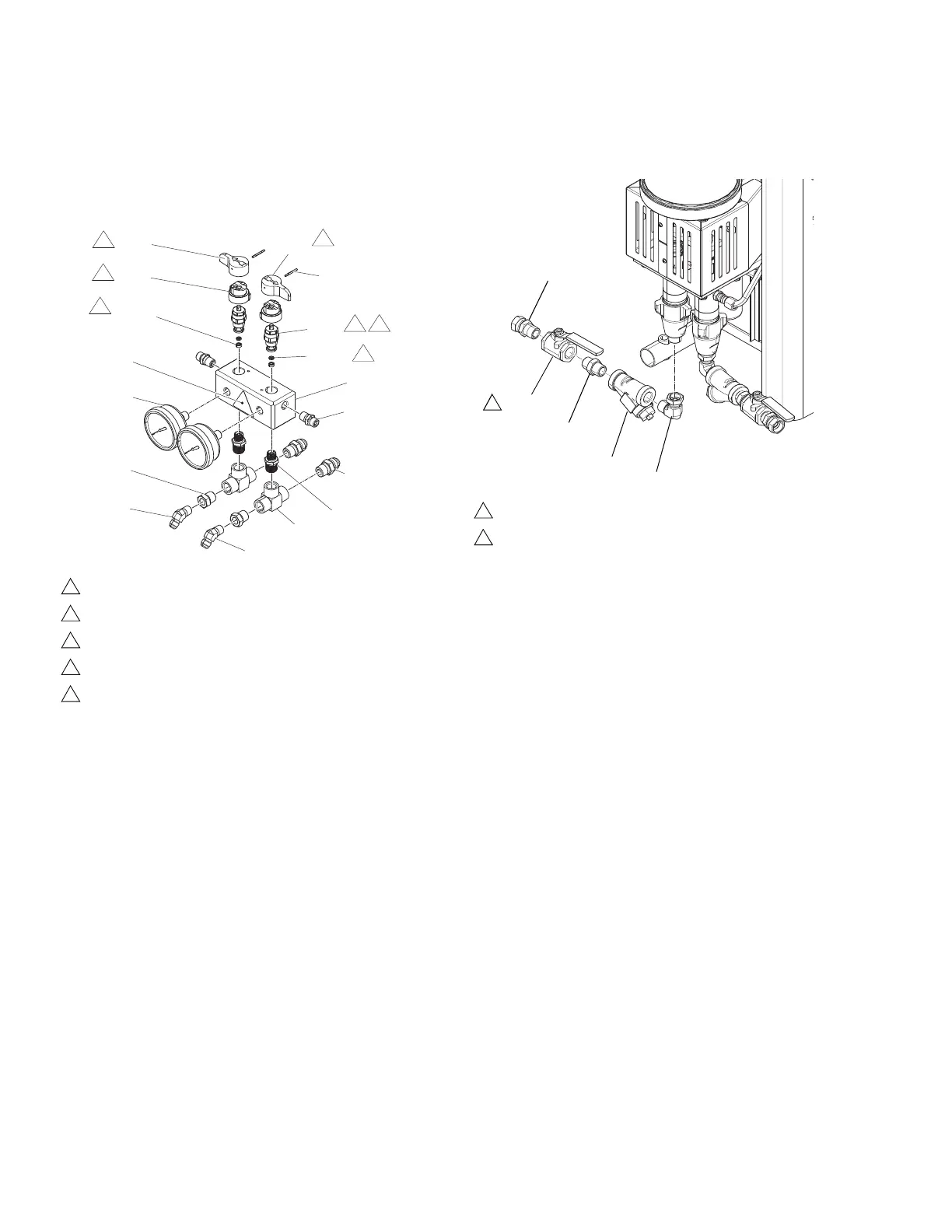

Fluid Manifold
A-25: 262577
A-XP1: 24Y177
▲ Replacement Danger and Warning labels, tags, and
cards are available at no cost.
Fluid Inlet Kit (234366)
Ref. Part Description Qty.
201 24K993 MANIFOLD, recirculation 1
202 108638 FITTING, pipe, tee 2
203 162453 FITTING, (1/4 npsm x 1/4 npt) 2
204 113641 GAUGE (A-25), pressure, fluid, SST 2
115523 GAUGE (A-XP1), pressure, fluid,
SST
2
205 111600 PIN, grooved 2
206 118758 FITTING, adapter 2
207 123787 FITTING, elbow, 45°, 3/8 JIC x 1/4
NPT
1
208 239914 VALVE, drain; includes 208a, 208b 2
208a
-----
SEAT 2
208b
-----
GASKET 2
209 123788 FITTING, elbow, 45°, 5/16 JIC x 1/4
NPT
1
210 117833 FITTING, union, 1/4 npt x 3/8 JIC 2
212 17X499 HANDLE, valve, drain, red 1
213▲ 189285 LABEL, caution 1
214 224807 BASE, valve 2
215 17X521 HANDLE, valve, drain, blue 1
216 157350 ADAPTER 2
Apply sealant and torque to 250 in-lbs (28 N•m).
Use blue thread lock on valve cartridge threads into manifold.
Part of item 208.
Apply lubricant to mating surfaces.
Apply pipe sealant to all NPT threads.
WLD
E
D
Ref. Part Description Qty.
251 160327 UNION, adapter, 90°; 3/4 npt(m) x
3/4-14 npt(f)
2
252 101078 Y-STRAINER; 20 m screen 2
253 C20487 NIPPLE, 3/4 npt 2
254 109077 VALVE, ball; 3/4 npt (fbe) 2
255 118459 UNION, swivel; 3/4-14 npt(m)x
3/4-14 npt(f)
2
256
26A349 ELEMENT, 20 mesh 2
ti18027a
251
253
252
254
255
Assemble ball valves in orientation shown.
Apply anaerobic polyacrylate pipe sealant to all NPT
connections.
To Next Page
