Graco Reactor A-XP1 User Manual

Parts
3A1570V 51

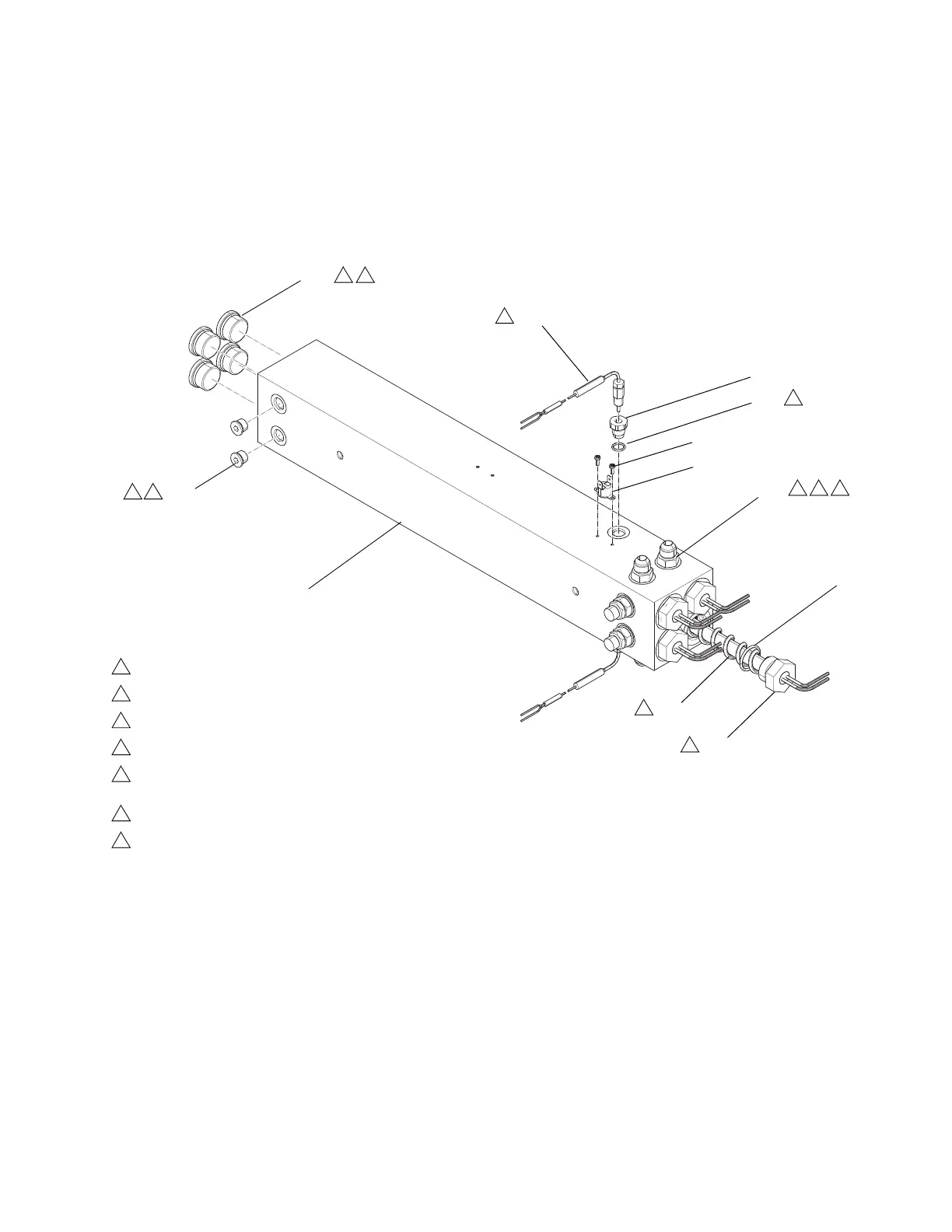

Dual Zone Heater
A-XP1: 10 kw (24Y163)
A-25: 6 kw (24J788)
1
351
361
354
357
356
362
359
352
358
360
355
353
Torque to 120 ft-lbs (163 N•m).
Torque to 23 ft-lbs (31 N•m).
Torque to 40 ft-lbs (54 N•m).
Apply 110009 thermal heatsink compound.
Apply sealant and PTFE tape to all non swiveling and
threads without o-rings.
Apply lubricant to o-rings.
Orient rupture disc housing (369) with exhaust hole
pointing towards the bottom of the heater.
1
2
3
4
5
6
7
6
3 6 7
6
5
1 6
2 5
ti17998a
Ref. Part Description Qty.
351
-----
HEATER, dual zone 1
352 124132 O-RING 4
353 15H305 FITTING, plug hollow hex 1-3/16
sae
4
354 121309 FITTING, adapter, sae-orb x jic 4
355 15H304 FITTING, plug 9/16 sae 2
356 15H306 ADAPTER, thermocouple, 9/16 x
1/8
2
357 120336 O-RING, packing 2
358 16A112 HEATER (A-25), immersion, (1500
w, 230 v)
4
16A110 HEATER (A-XP1), immersion,
(2550 w, 230 v)
4
359 15B137 SWITCH, over temperature 1
360 15B135 MIXER, immersion heater 4
361 117484 SENSOR 2
362
-----
SCREW, mach, pnh 2
369 247520 KIT, rupture disc 2
Ref. Part Description Qty.
