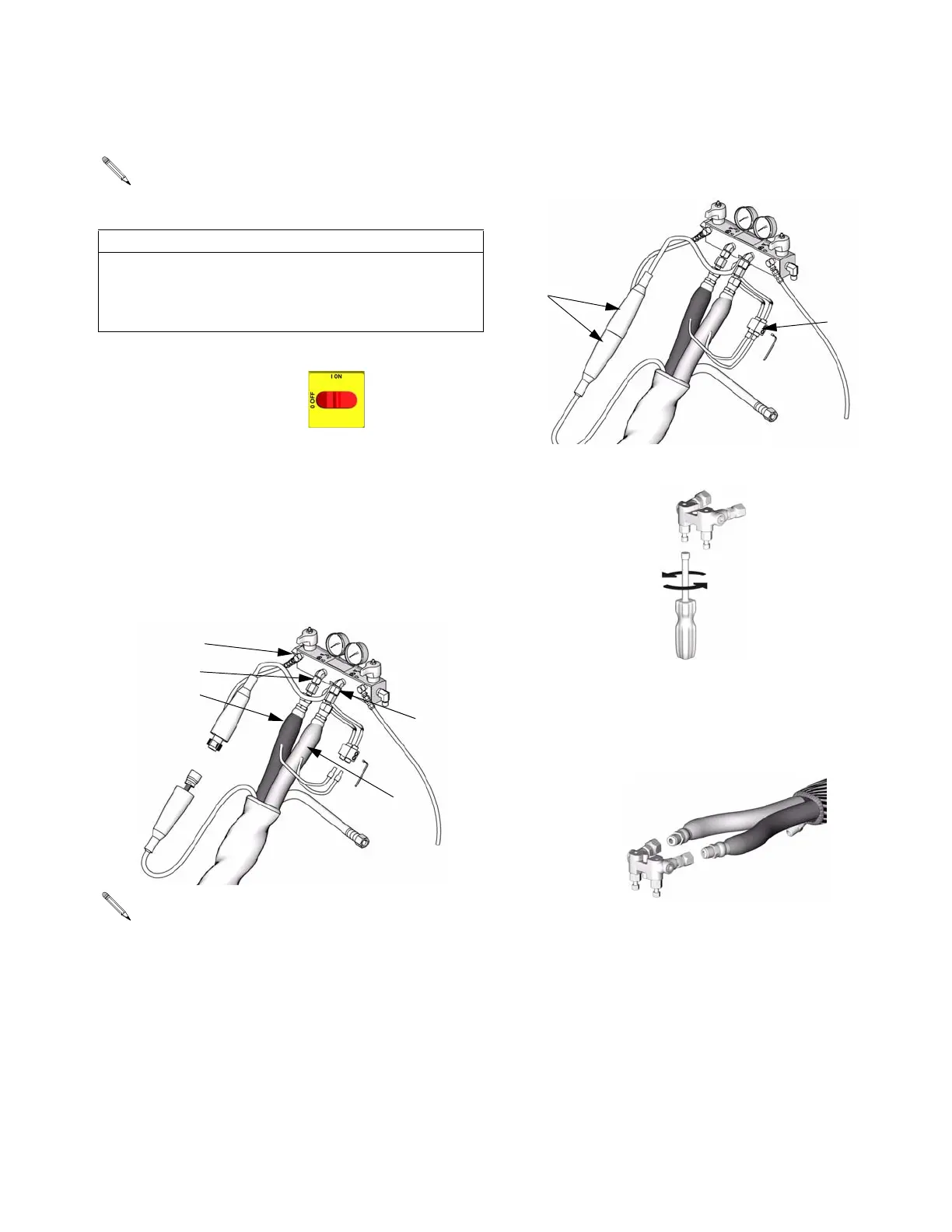

7. Connect heated hose
a. Turn main power OFF .
b. Assemble heated hose sections, FTS, and whip
hose.
c. Connect A and B hoses to A and B outlets on
Reactor fluid manifold (FM). Hoses are color
coded: red for component A (ISO), blue for com-
ponent B (RES). Fittings are sized to prevent
connection errors.
d. Connect cables (Y). Connect electrical connec-
tors (V). Be sure cables have slack when hose
bends. Wrap cable and electrical connections
with electrical tape.
8. Close gun fluid manifold valves A and B
9. Connect whip hose to gun fluid mani-
fold
10.Pressure check hose
See hose manual. Pressure check for leaks. If no leaks,
wrap hose and electrical connections to protect from
damage.
See Heated Hose manual 309572 for detailed
instructions on connecting heated hoses.
CAUTION
The fluid temperature sensor (C) and whip hose (D)
must be used with heated hose, see page 18. Hose
length, including whip hose, must be 60 ft (18.3 m)
minimum.
Manifold hose adapters (N, P) allow use of 1/4 in.
and 3/8 in. ID fluid hoses. To use 1/2 in. (13 mm) ID
fluid hoses, remove adapters from fluid manifold
and install as needed to connect whip hose.
FM
A
B
ti9878a
N
P
Do not connect manifold to gun.
ti9881a
V
Y
ti2411a
ti2417a
