P a g e | 15

DP760 User Manual

Version 1.0.3.34

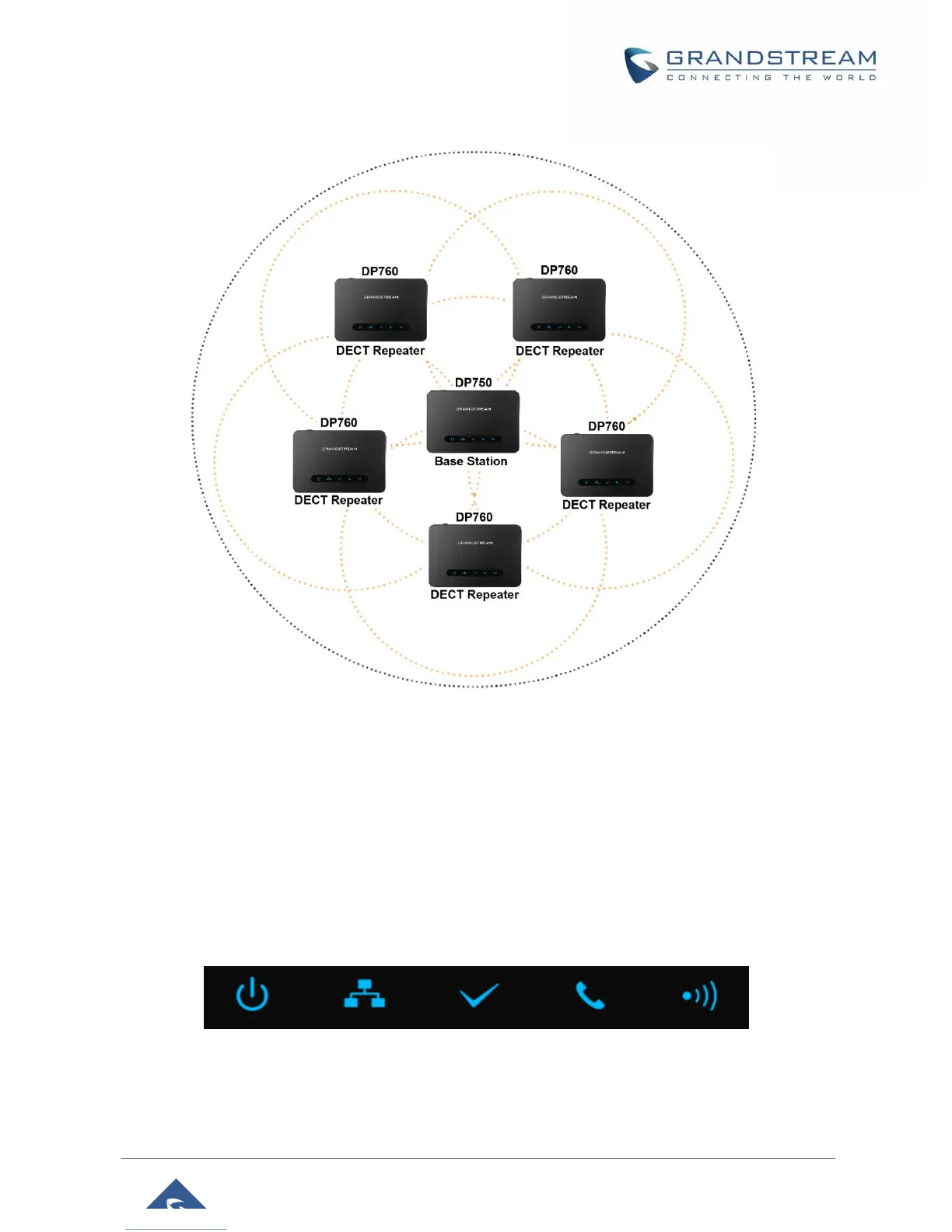

Figure 4: Star Mode Configuration

In star mode configuration, the coverage area of the repeaters should overlap the coverage area of the

base station.

DP760 LED Patterns

The DP760 has 5 LED lights. Please refer to following table describing the status of each LED.

Figure 5: DP760 LED Patterns
