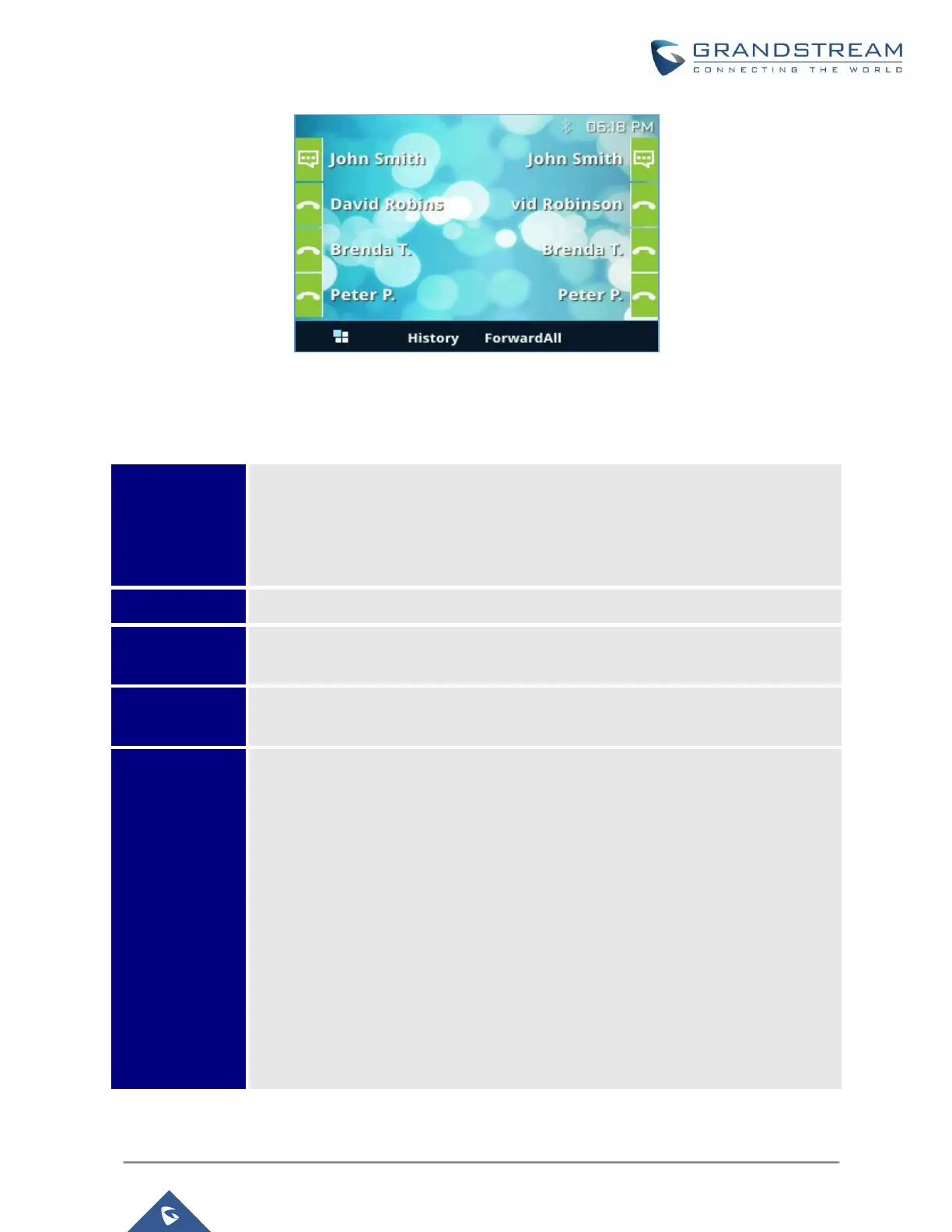

Figure 6: GXP2135 Idle Screen
The following table describes the items displayed on GXP2130/GXP2140/GXP2160/GXP2170/GXP2135
idle screen.
Table 11: LCD Display Definitions
Date and Time
Displays the current date and time. It can be synchronized with Internet time servers.
Note: For GXP2135 and GXP2170, if there’s no VPK configured with the first VPK on
the right side of the LCD screen, users can display time and date on the top of the
LCD screen (status bar) by enabling the option “Show Date On Status Bar” under
Web GUISettingsDate and Time.
Network icon
Shows the status of network. It will indicate whether the network is down or starting.
Status icon
Shows the status of the phone for registration status, call features etc. Using icons as
shown in the next table.
Line status
indicator
Displays the name of the account that is in use.
Softkeys in idle
screen
The softkeys are context sensitive and will change depending on the status of the
phone. Typical functions assigned to softkeys are:
 SwitchSCR/NEXTSCR
Toggles between different idle screens. For example, for
GXP2130/GXP2140/GXP2160/GXP2170/GXP2135, pressing most left softkey
(switch screen) will toggle among default idle screen, weather information and
Grandstream Upcoming Events;
 History
Shows up all the call history, including “All”, “Answered Calls”, “Dialed Calls”,
“Missed Calls”, and “Transferred Calls”.
 ForwardAll
Unconditionally forwards the phone line (account 1) to another phone.
 Redial
Redials the last dialed number when there is existed dialed call log.
