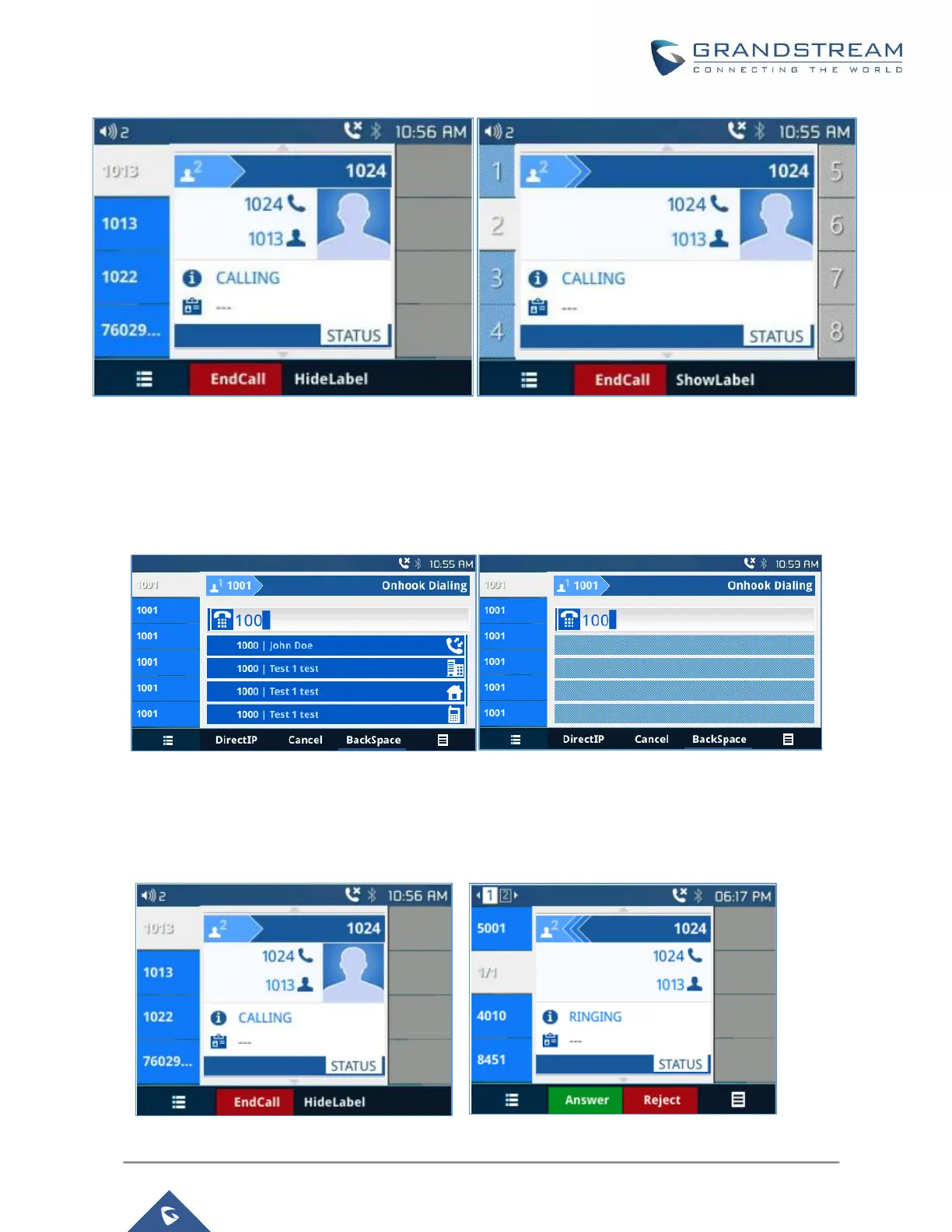

Figure 35: Show/Hidden Labels

Predictive Dialing

This feature allows users to enable/disable predictive dialing, when it is disabled, user will not see and

predictive number while dialing as shown in figures below.

Figure 36: Predictive Dialing

Hide Profile Picture

When the contact picture is not set, the GXP2130/GXP2140/GXP2160/GXP2170/GXP2135 will remove the

picture from the LCD screen to leave more space for the number and name displayed.
