7.
Arrow key combination
(Up, Down, Left, Right)
Allows navigation of the cursor through the displayed menu options.
8.
Off-hook / Dial key
Enters dialing mode, or dials number entered.
9.
Alphanumeric Keypad
Provides the digits, letters, and special characters in
context-sensitive applications. For + sign, press and hold key 0.
10.
* / Mute key
Activates or deactivates the mute feature when keep pressing on * in
idle screen.
11.
LED indicator
1dual-color LED indicator indicating: power, call, battery, message
waiting…
12.
3.5 mm headset jack
Phone connector for the headphones/headsets.
13.
Color LCD Screen
2.4-inch (240x320) TFT color LCD
14.
Softkeys
Correspond to functions displayed on the LCD. These functions
change depending on the current context.
15.
Contacts
Access to contacts list.
16.
Menu/OK key
Selects the option chosen by the cursor or enters the main menu
from the home screen.
17.
On-hook or Power key
Terminates calls or turns the handset on / off.
18.
# / Lock key
Locks keypad against unintentional entries when keep pressing #.
• Press and hold # key for approximately 2 seconds to lock the keys.
• Press Unlock softkey and then # to unlock the keys.
19.
Microphone
Picks up audio earpiece and hands-free calls.

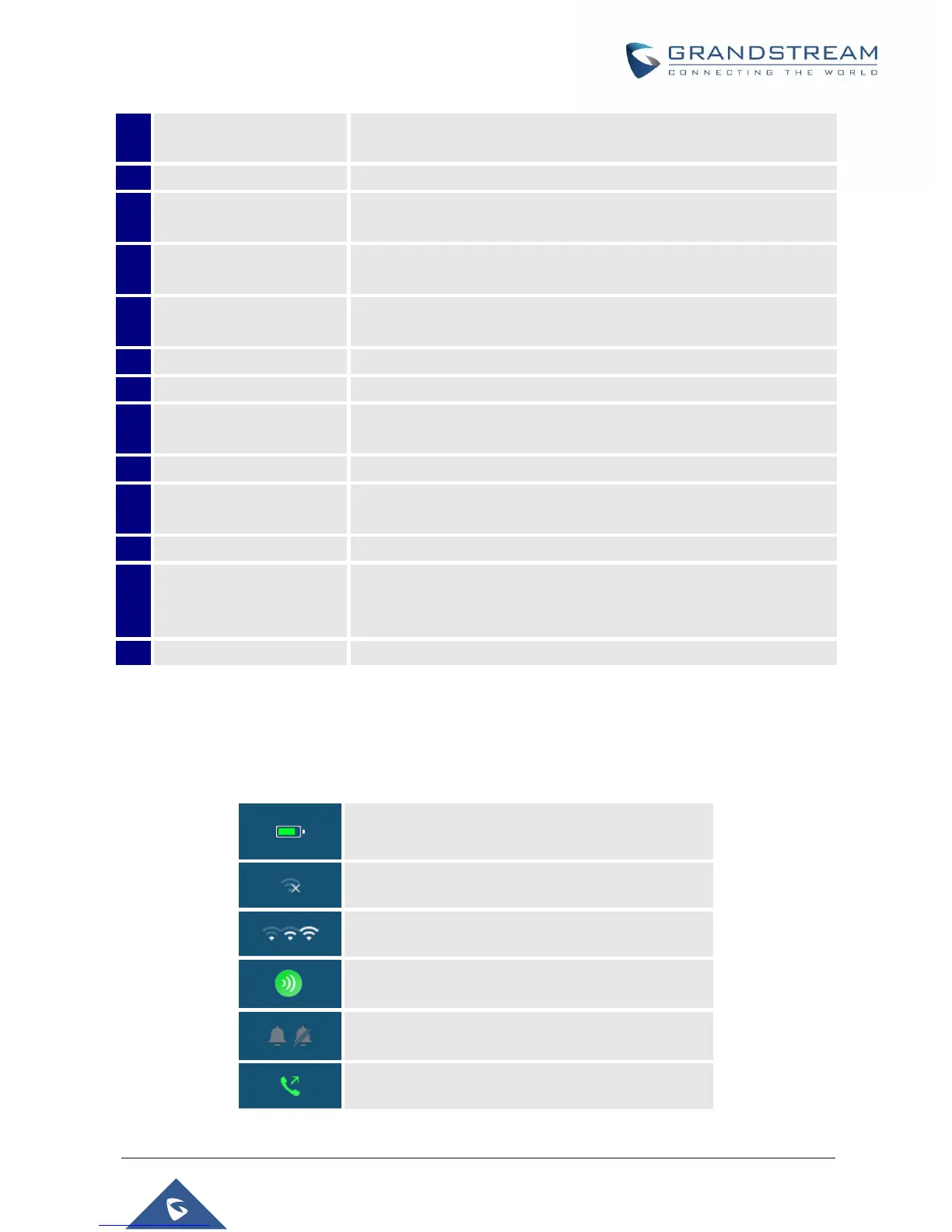

WP820 Icons Description
Following table contains description of each icon that might be displayed on the screen of the WP820.
Table 5: WP820 Icons Description
Battery status
Charging
Wi-Fi not enabled/configured
Wi-Fi signal status
Speaker enabled icon
Ringtone status
Outgoing Call notification
