Grant Vortex VTXBH15/26 User Manual

Section 9: Flue System and Air SupplyPage 32
Vertical terminal kit
GTV90 (15 - 26 kW)
GTV200 (26 - 70 kW)
45 elbow kit
GE45/90 (15 - 26 kW)
GE45/200 (26 - 70 kW)
O
Starter kit
GK90 (15 - 26 kW)
GK200 (26 - 70 kW)
GK90S - short (15 - 26 kW)
GK200S - short (26 - 70 kW)
High level terminal kit
GTH90 (15 - 26 kW)
GTH200 (26 - 70 kW)
Extension kits
Wall bracket
Extended wall bracket
Locking band
Air
intake
DO NOT
OBSTRUCT
Components and Part Numbers
Typical
ue system

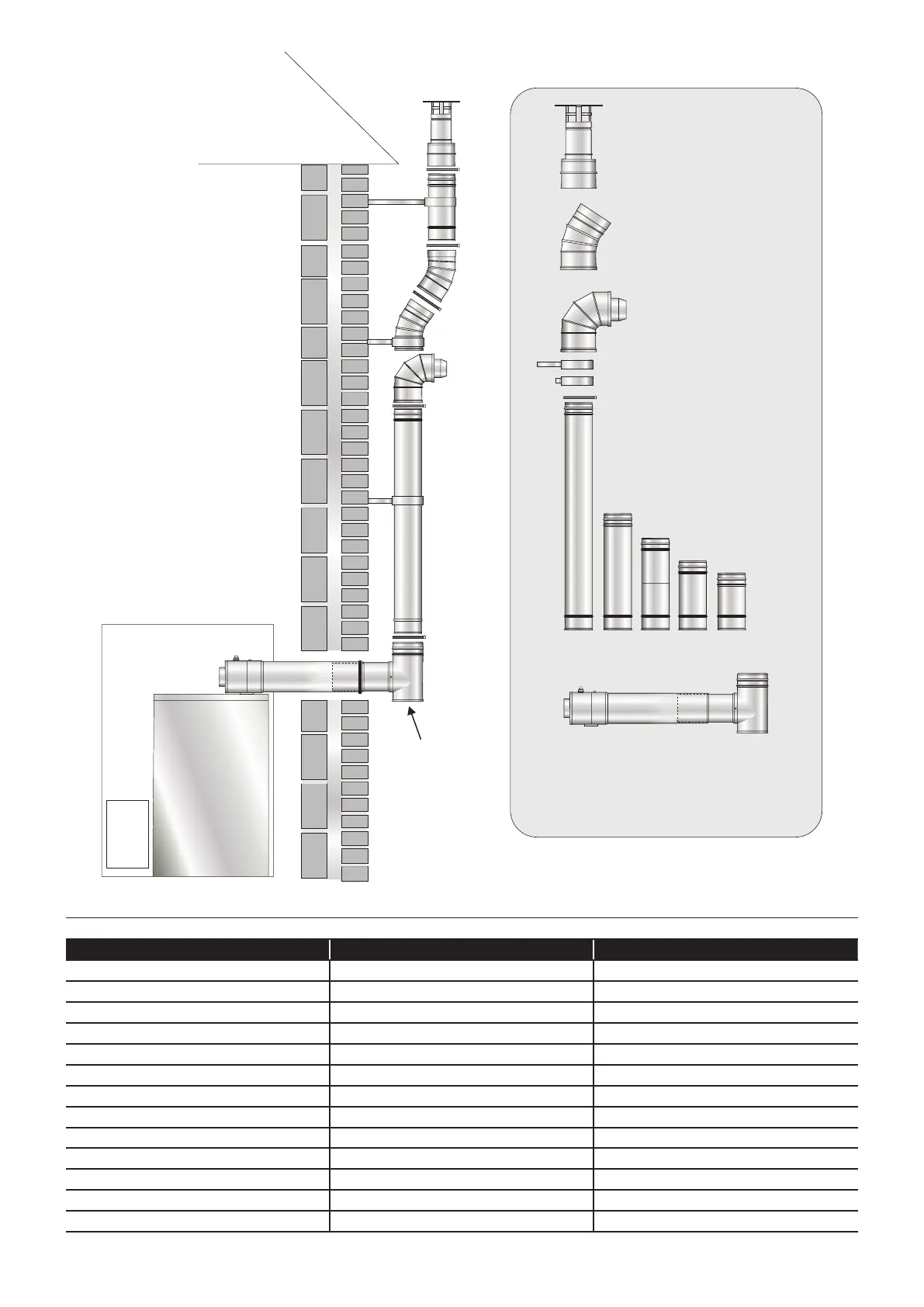

Figure 9-10: External balanced ue (green system)
Table 9-5: Green system components - product codes
Item 15-26 models 26-46 and 46-70 models
Standard starter kit (stainless steel) GK90B GK200B
Short starter kit (stainless steel) GK90SB GK200SB
150 mm extension GX150/90B GX150/200B
250 mm extension GX250/90B GX250/200B
450 mm extension GX450/90B GX450/200B
950 mm extension GX950/90B GX950/200B
195 - 270 mm adjustable extension GXA250/90B GXA250/200B
45° elbow GE45/90B GE45/200B
Straight terminal GTL90B GTL200B
High level 90° terminal GTH90B GTH200B
Vertical terminal GTV90B GTV200B
Wall bracket - standard GWB90B GWB200B
Wall bracket - extended GEB90B GEB200B
