GRASS VALLEY K2 Guide

03 September 2009 K2 Storage Cabling Guide 35

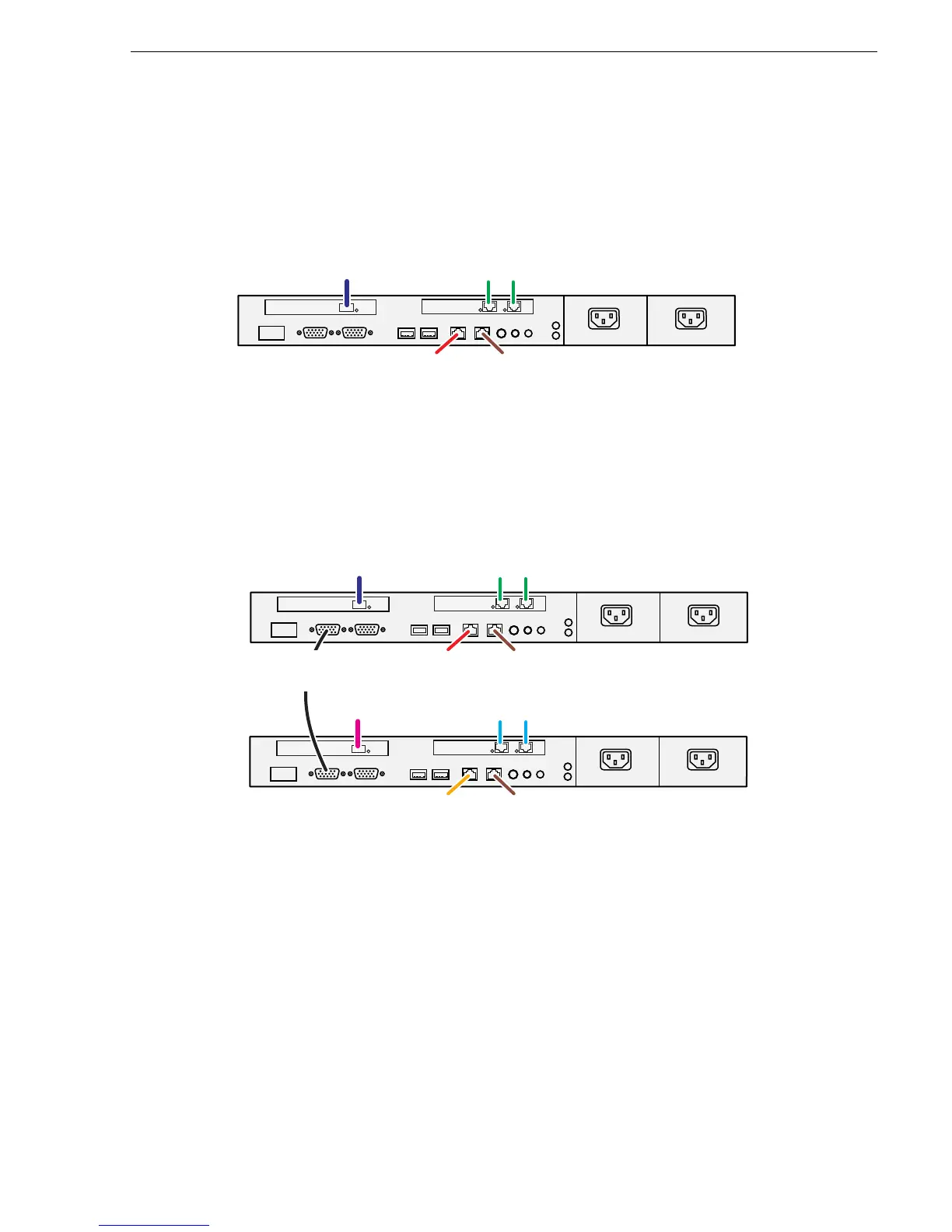

Dell 1950 GS for Level 20 basic K2 SAN
Dell 1950 GS for Level 20 basic K2 SAN
These cabling instructions apply to the following:
• Dell 1950 PowerEdge Server on a Level 20 basic (non-redundant) K2 SAN.
Dell 1950 GS for Level 20 redundant K2 SAN
These cabling instructions apply to the following:
• Dell 1950 PowerEdge Server on a Level 20 redundant K2 SAN.
12
Gb 2Gb 1
To media (iSCSI)
ports on GigE switch
Fibre Channel
to RAID controller
To control port
on GigE switch
FTP: To control port
on GigE switch
12
Gb 2Gb 1
12
Gb 2Gb 1
A
B
To media (iSCSI)
ports on GigE switch A
Fibre Channel
to RAID controller 0
To media (iSCSI)
ports on GigE switch B
Fibre Channel
to RAID controller 1
To control port
on GigE switch A
FTP: To control port
on GigE switch A
To control port
on GigE switch B
FTP: To control port
on GigE switch B
Heartbeat
cable
(serial)
